Toyota 3S-GTE User Manual

ENGINE — TURBOCHARGER SYSTEM EG-105
D|sconnect/
//
/
P184841
&== PU8
/Y O
%
’*n§~ u
P13663
'\
E2
__,_
_
~
H8485
\
~;“i
\
%%
;e%
M8486

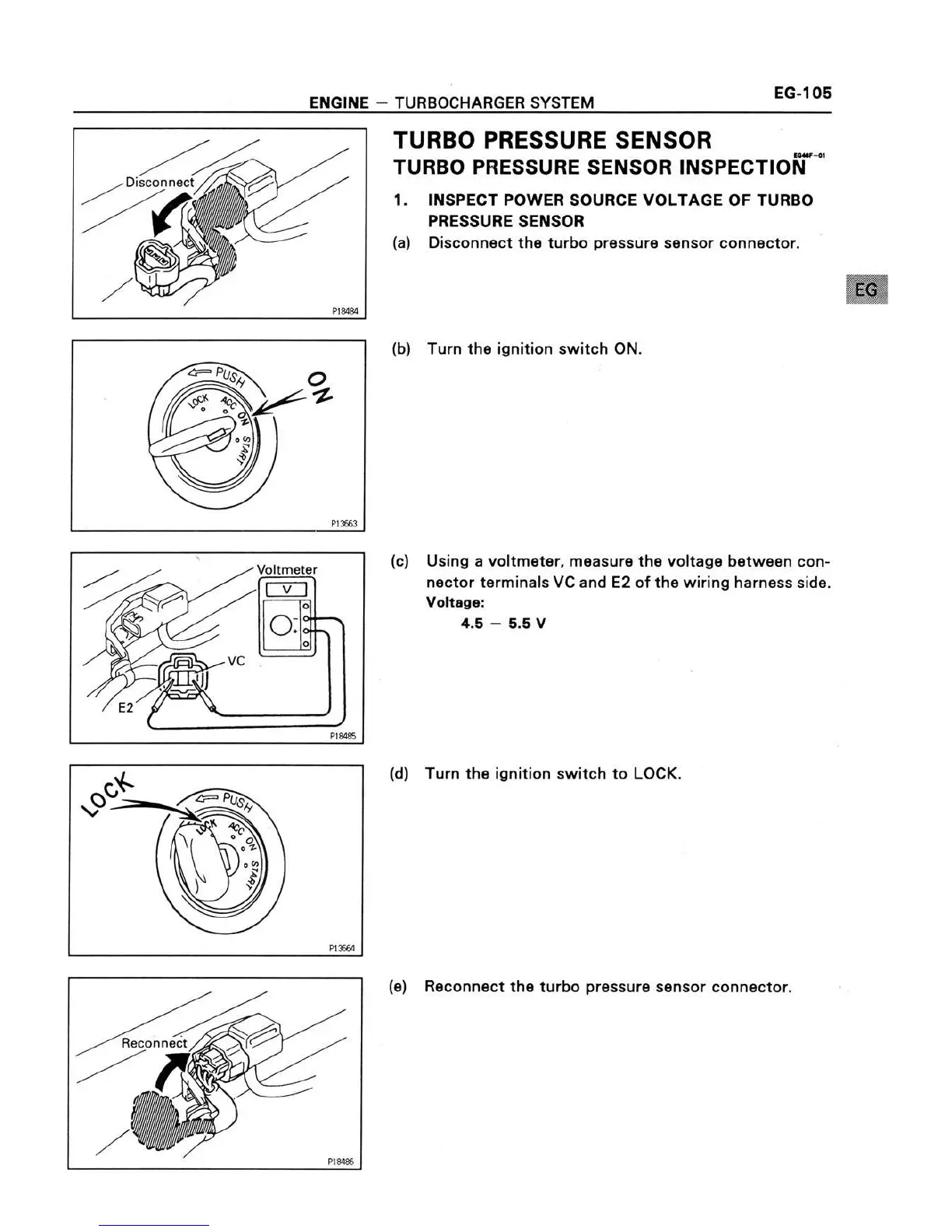

TURBO PRESSURE SENSOR W
TURBO PRESSURE SENSOR INSPECTION
1. INSPECT POWER SOURCE VOLTAGE OF TURBO
PRESSURE SENSOR
(a) Disconnect the turbo pressure sensor connector.
i;sz;Y;'-
(b) Turn the ignition switch ON.
voltmeter (c) Using a voltmeter, measure the voltage between con-
nector terminals VC and E2 of the wiring harness side.
Voltage:
EB. 4.5 _ 5.5 V
(d) Turn the ignition switch to LOCK.
o<,~(~ F PU
\/ 8*
“ ‘F0
.°1.
g in
1:
~?
P136611
/ (e) Reconnect the turbo pressure sensor connector.
