ENGINE — EFI SYSTEM EG-153
E
SST
we
?\
Pressure
Regulator
J.) :
E
\t':\\
. I1-F’ <1",
5,; " ‘F SST
La. “ H
~
©
ssr -Y-—%__
@ _
\
Fuel Filter .
(on Vehicle)
(I
Y P185313
BOT"-0!

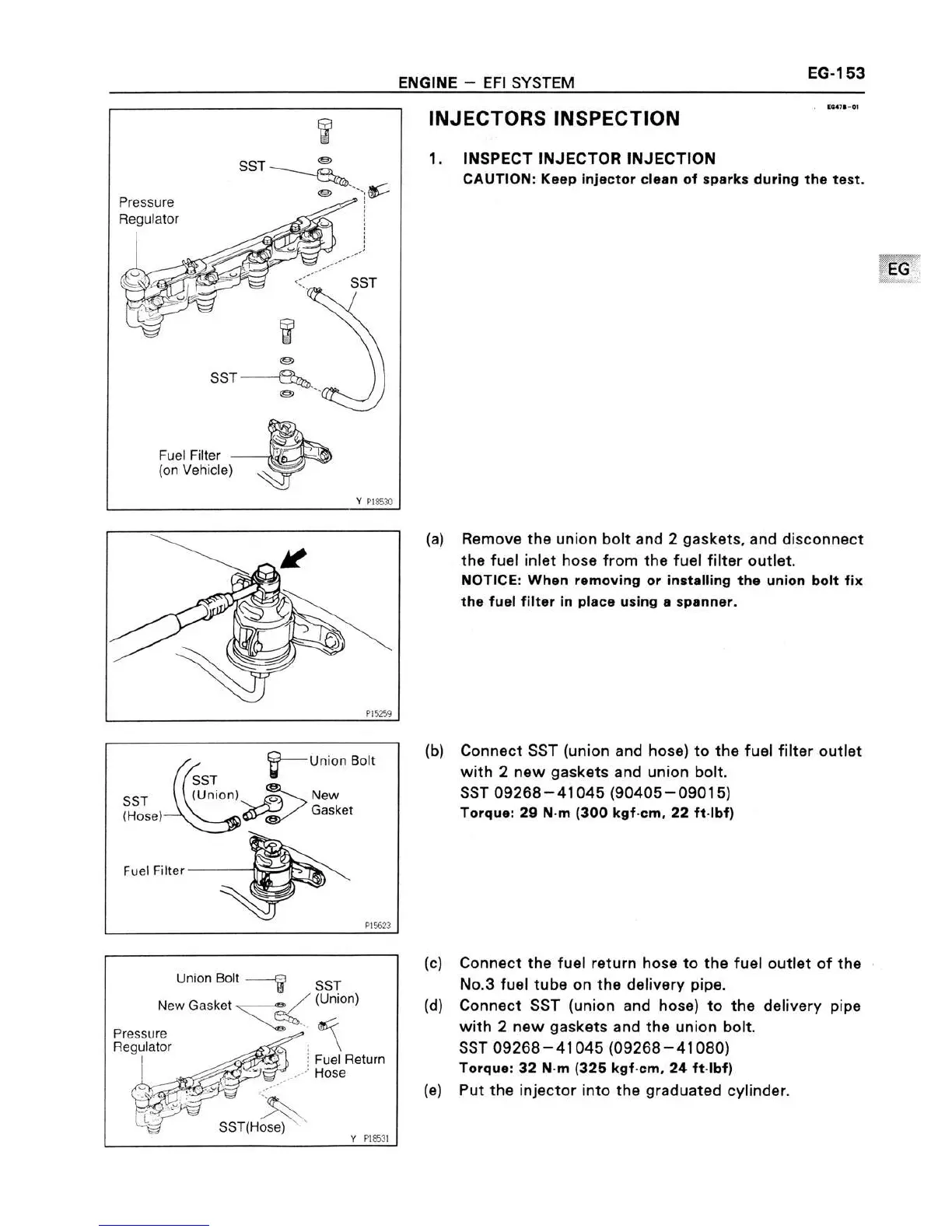

INJECTORS INSPECTION
1. INSPECT INJECTOR INJECTION
CAUTION: Keep injector clean of sparks during the test.
X
K
90
\
fit
Remove the union bolt and 2 gaskets, and disconnect
the fuel inlet hose from the fuel filter outlet.
NOTICE: When removing or installing the union bolt fix
the fuel filter in place using a spanner.
(a)
?—umon Bolt
SST
SST Wnronlfi New
(Hose) Gasket
-__
Fuel Filter
\-_-.-/
P151523
(b) Connect SST (union and hose) to the fuel filter outlet
‘ with 2 new gaskets and union bolt.
SST 09268-41045 (90405—0901 5)
Torque: 29 N-m (300 kgf-cm. 22 ft-Ibf)
Union Bolt W SST
New Gasket / (Union)
I 31o
Pressure K
Re ulator
91 Fuel Return
. » /" ' Hose
SST(Hose)
Y F‘l853I
Connect the fuel return hose to the fuel outlet of the
No.3 fuel tube on the delivery pipe.
Connect SST (union and hose) to the delivery pipe
with 2 new gaskets and the union bolt.
SST 09268-41045 (O9268—41080)
Torque: 32 N-m (325 kgf-cm. 24 ft-Ibf)
Put the injector into the graduated cylinder.
(cl
id)
(Bl
