Toyota 3S-GTE User Manual

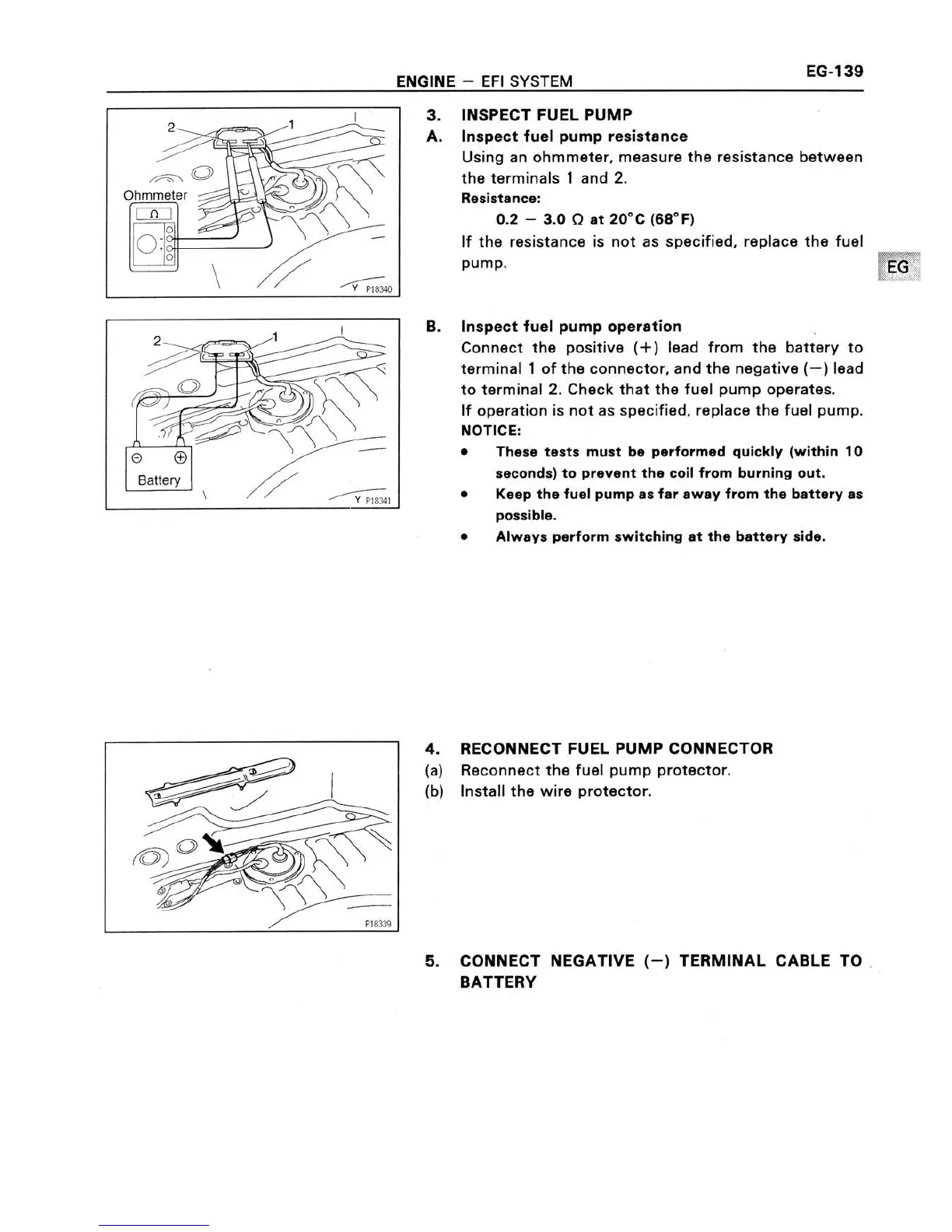

ENGINE — EFI SYSTEM E6439
2 -_. 1 '
.-/ _ _
‘"; !?"" \\
\
1. Q
l‘,\‘*§a. \<
113 5,
5%;
\ / /V’/-I;-IE5-3‘1lD
INSPECT FUEL PUMP
Inspect fuel pump resistance
Using an ohmmeter, measure the resistance between
the terminals ‘I and 2.
Resistance:
0.2 — 3.0 Q at 20°C (68°F)
If the resistance is not as specified, replace the fuel
pump.
3.
A.
2 __
v=-
,/ ..-__
)_/_
/Z
//_.
‘—I—
__,_..-
&§\. -
Battery
mi
B. Inspect fuel pump operation _
Connect the positive (+) lead from the battery to
terminal 1 of the connector. and the negative (—) lead
to terminal 2. Check that the fuel pump operates.
If operation is not as specified. replace the fuel pump.
NOTICE:
0 These tests must be performed quickly (within 10
seconds) to prevent the coil from burning out.
I Keep the fuel pump as fer away from the battery as
possible.
I Always perform switching at the battery side.
fie
0
-.4
____,i
Pl333‘53
4. RECONNECT FUEL PUMP CONNECTOR
(a) Reconnect the fuel pump protector.
(b) Install the wire protector.
5. CONNECT NEGATIVE (—) TERMINAL CABLE TO
BATTERY
.\
,,..
€€‘~"E
