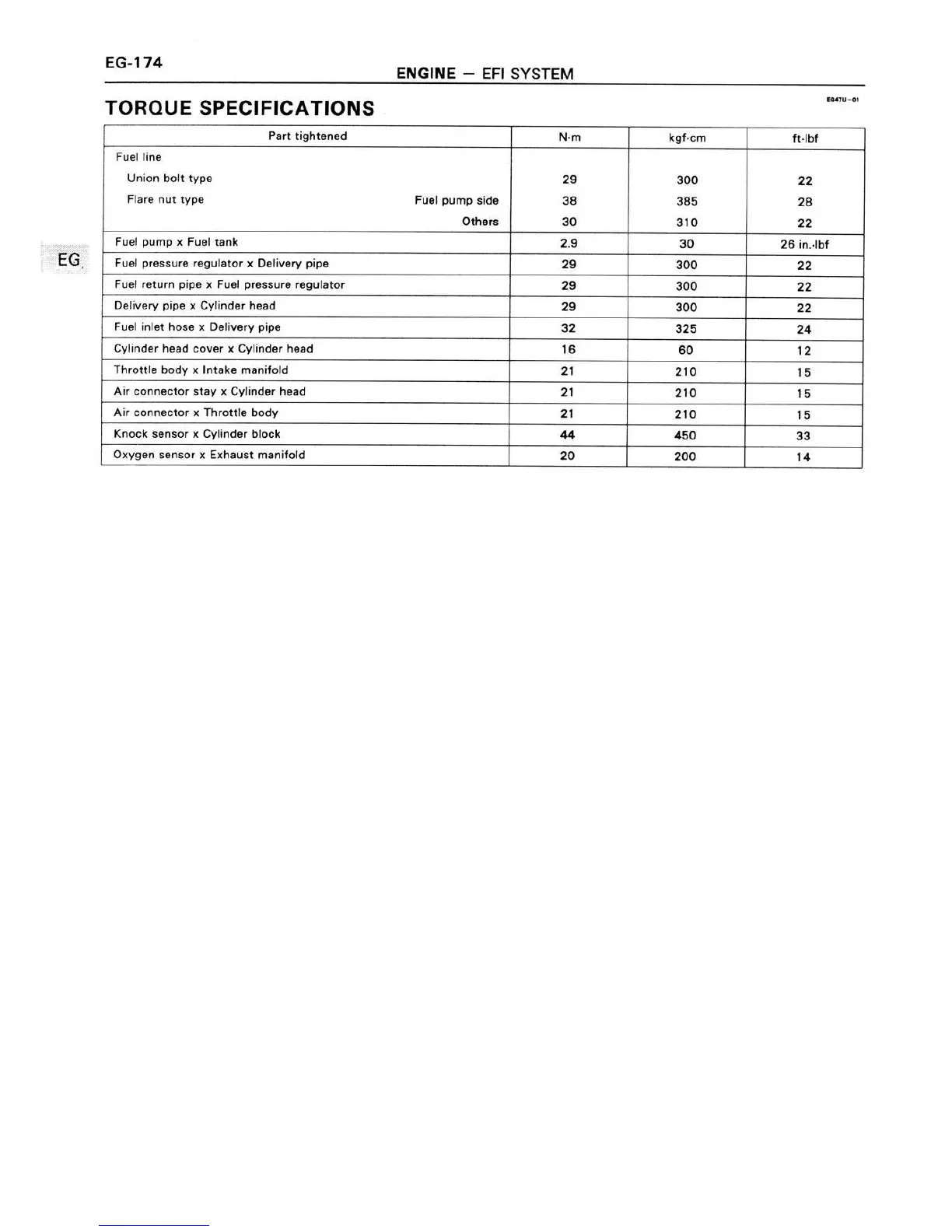

EG-174
ENGINE — EFI SYSTEM
TORQUE SPECIFICATIONS
IBIIII-O1
Part tightened
N-m
kgf-cm ft-lbf
Fuelfine
Union bolt type
Flare nut type
Fuel pump side
Others
29
38
30
300
385
310
22
28
22
Fuel pump x Fuel tank
2.9
30
26 in.-lbf
Fuel pressure regulator x Delivery pipe
29
300
22
Fuel return pipe x Fuel pressure regulator
29
300
22
Delivery pipe x Cylinder head
29
300
22
Fuel inlet hose x Delivery pipe
32
325
24
Cylinder head cover x Cylinder head
16
60
12
Throttle body x Intake manifold
21
210
I5
I Air connector stay x Cylinder head
21
210
15
Air connector x Throttle body
21
210
15
Knock sensor x Cylinder block
44
450
33
Oxygen sensor x Exhaust manifold
20
200
14
