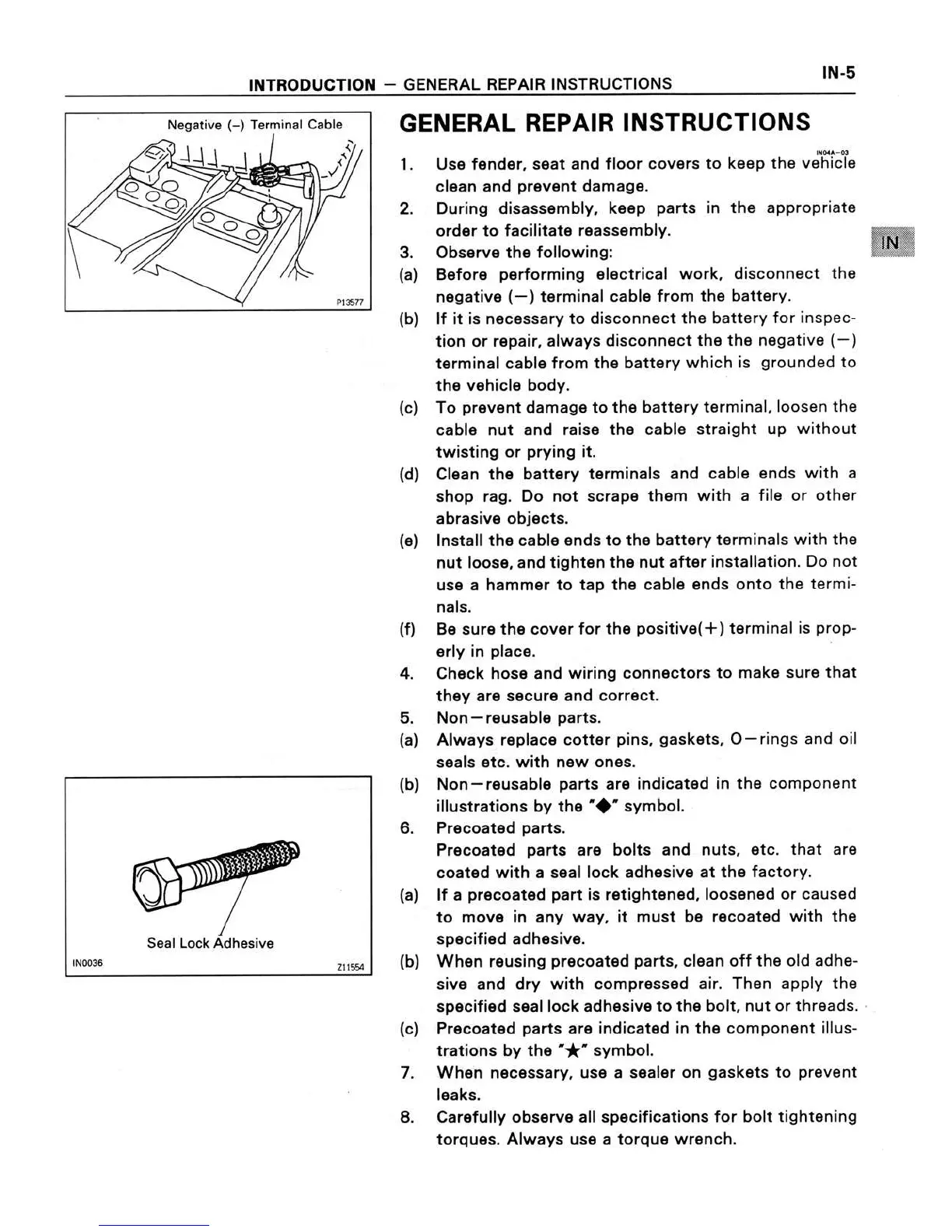

GENERAL REPAIR INSTRUCTIONS
Negative (—) Terminal Cable
'6 -~/‘ii
/ “Si
Q
©‘1)Wiiii*iiiiii?=
Seal Lock Adhesive
moose Z1155“
GENERAL REPAIR INSTRUCTIONS
l.
2.
3.
la)
lb)
lc)
id)
la)
(fl
4.
5.
la)
(bl
6.
la)
lb)
(cl
7.
8.
men-ea
Use fender, seat and floor covers to keep the vehicle
clean and prevent damage.
During disassembly, keep parts in the appropriate
order to facilitate reassembly.
Observe the following:
Before performing electrical work, disconnect the
negative (—) terminal cable from the battery.
If it is necessary to disconnect the battery for inspec-
tion or repair, always disconnect the the negative (—)
terminal cable from the battery which is grounded to
the vehicle body.
To prevent damage to the battery terminal, loosen the
cable nut and raise the cable straight up without
twisting or prying it.
Clean the battery terminals and cable ends with a
shop rag. Do not scrape them with a file or other
abrasive objects.
Install the cable ends to the battery terminals with the
nut loose, and tighten the nut after installation. Do not
use a hammer to tap the cable ends onto the termi-
nals.
Be sure the cover for the positive(+) terminal is prop-
erly in place.
Check hose and wiring connectors to make sure that
they are secure and correct.
Non—reusable parts.
Always replace cotter pins, gaskets, 0—rings and oil
seals etc. with new ones.
Non—reusabIe parts are indicated in the component
illustrations by the ‘Q’ symbol.
Precoated parts.
Precoated parts are bolts and nuts, etc. that are
coated with a seal lock adhesive at the factory.
If a precoated part is retightened, loosened or caused
to move in any way, it must be recoated with the
specified adhesive.
When reusing precoated parts, clean off the old adhe-
sive and dry with compressed air. Then apply the
specified seal lock adhesive to the bolt, nut or threads.
Precoated parts are indicated in the component illus-
trations by the "k" symbol.
When necessary, use a sealer on gaskets to prevent
leaks.
Carefully observe all specifications for bolt tightening
torques. Always use a torque wrench.
i
