EG-146
ENGINE — EFI SYSTEM
'\\.; -
Q 7/ "
{J
Q
'9
S
A099l6
ZISZH
I0flI—0I

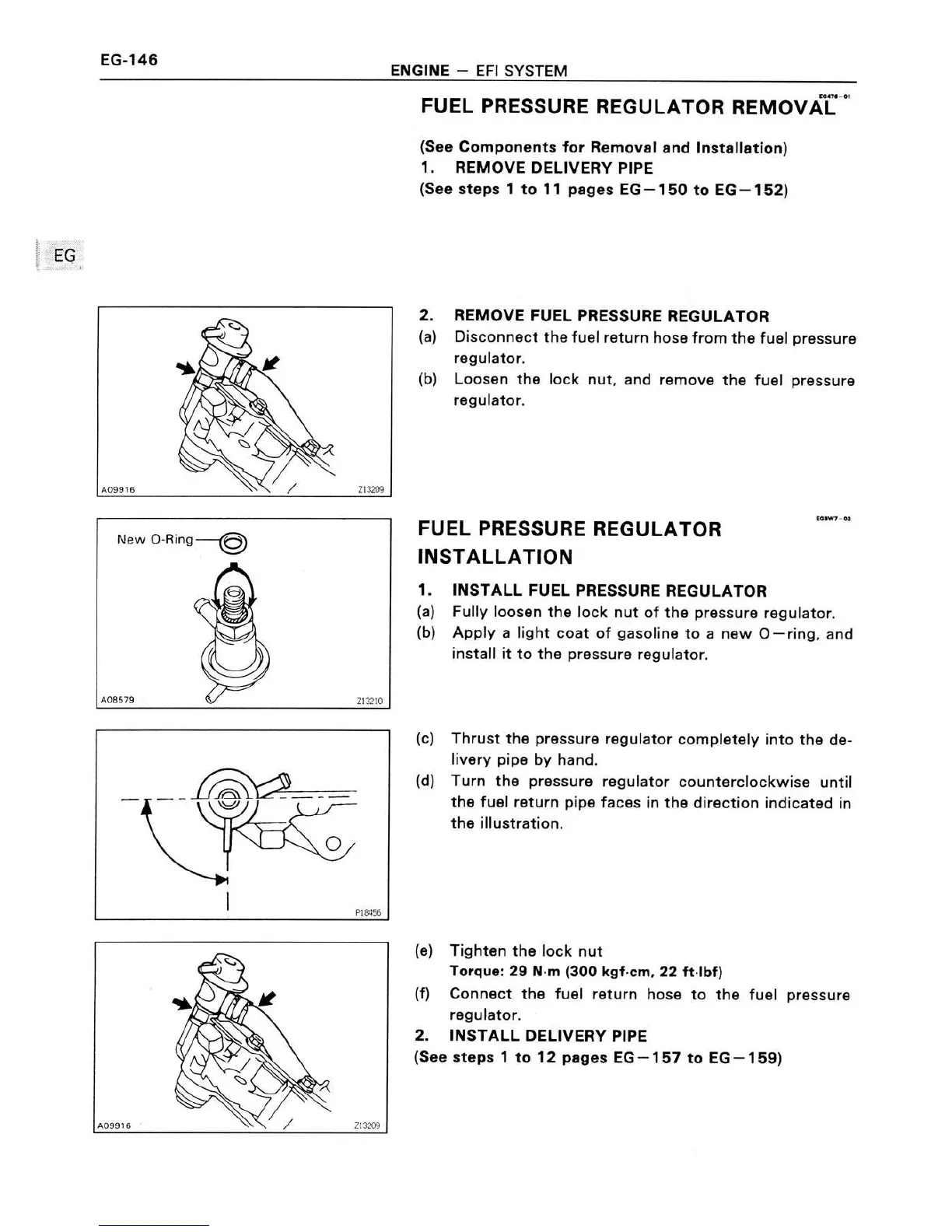

FUEL PRESSURE REGULATOR REMOVAL
(See Components for Removal and Installation)
1.
REMOVE DELIVERY PIPE
(See steps 1 to 11 pages EG—15O to EG~—152)
2.
(a)
(bl
\_,/
A08579
ZIKHO
1.
la)
lb)
_ __
\:/
O
I
M8W%
(cl
(d)
'>\»~"
'7 0
*./Mir
/
K
\\
& §
\
AO591S F / Z1339
(B)
(fl
2.
REMOVE FUEL PRESSURE REGULATOR
Disconnect the fuel return hose from the fuel pressure
regulator.
Loosen the lock nut, and remove the fuel pressure
regulator.
IflIW1—5I
New Ming FUEL PRESSURE REGULATOR
© INSTALLATION
INSTALL FUEL PRESSURE REGULATOR
Fully loosen the lock nut of the pressure regulator.
Apply a light coat of gasoline to a new O—ring. and
install it to the pressure regulator.
Thrust the pressure regulator completely into the de-
livery pipe by hand.
Turn the pressure regulator counterclockwise until
the fuel return pipe faces in the direction indicated in
the illustration.
Tighten the lock nut
Torque: 29 N-m (300 kgf-cm. 22 ft-Ibf)
Connect the fuel return hose to the fuel pressure
regulator.
INSTALL DELIVERY PIPE
(See steps 1 to 12 pages EG—-157 to EG—159)
