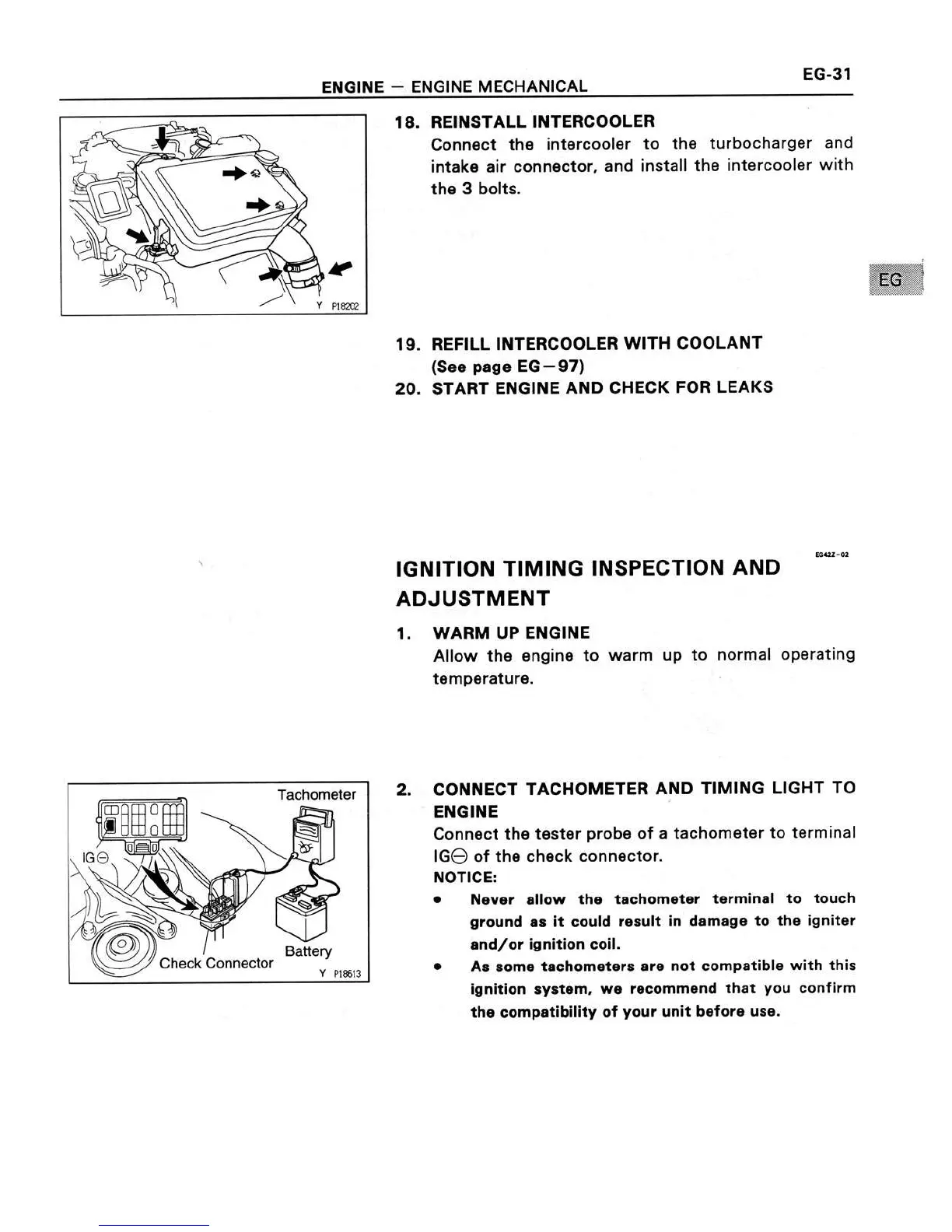

REINSTALL INTERCOOLER
Connect the intercooler to the turbocharger and
intake air connector, and install the intercooler with
the 3 bolts.
REFILL INTERCOOLER WITH COOLANT
(See page EG-9?)
START ENGINE AND CHECK FOR LEAKS
IGHZ-OZ
IGNITION TIMING INSPECTION AND
ADJUSTMENT
WARM UP ENGINE
Allow the engine to warm up to normal operating
temperature.
CONNECT TACHOMETER AND TIMING LIGHT TO
ENGINE
Connect the tester probe of a tachometer to terminal
lG@ of the check connector.
NOTICE:
O Never allow the tachometer terminal to touch
ground es it could result in damage to the igniter
end/or ignition coil.
I As some techometers are not compatible with this
ignition system, we recommend that you confirm
the compatibility of your unit before use.
