Toyota 3S-GTE User Manual

-=-=.=.¢.:-=-;..,-=-=-
E6438 ENGINE -
TURBOCHARGER SYSTEM
_ O
/" __
‘—-
,-
~,.
1; J .
3 J
\ 1
K
Y Pl8202
fit
\/‘
/\
43% ii )3‘
/%r\f3> WP‘? “W
Q‘;
/O
al
!4'F‘\
_/
Q’
\ gasket.
E-' < ‘
Y PIBIE
/\<> §‘k
1 Y
1 (C)
P186413

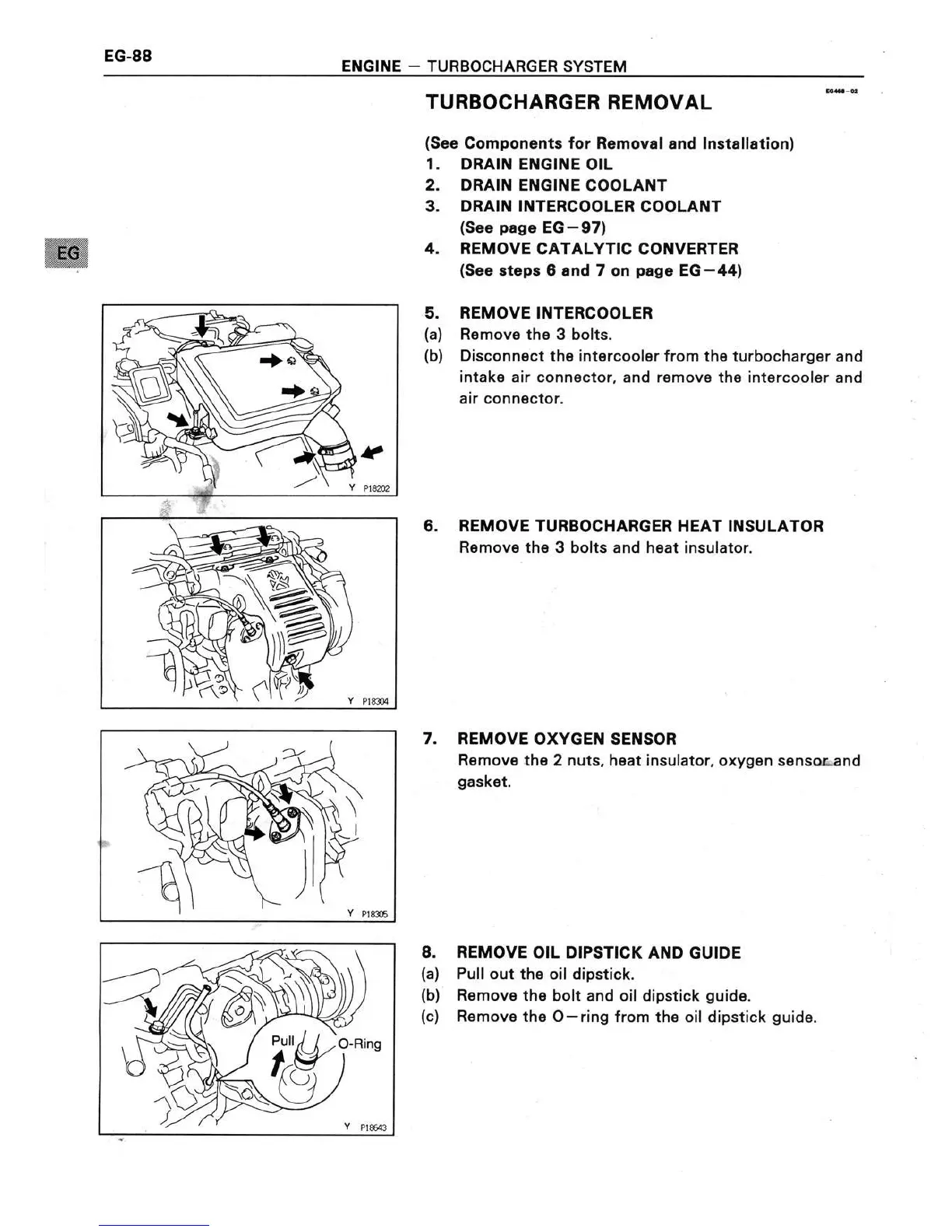

TURBOCHARGER REMOVAL
(See Components for Removal and Installation)
1. DRAIN ENGINE OIL
2. DRAIN ENGINE COOLANT
3. DRAIN INTERCOOLER COOLANT
(See page EG-9?)
4. REMOVE CATALYTIC CONVERTER
(See steps 6 and 7 on page EG—44)
5. REMOVE INTERCOOLER
(a) Remove the 3 bolts.
(bl Disconnect the intercooler from the turbocharger and
intake air connector. and remove the intercooler and
air connector.
6. REMOVE TURBOCHARGER HEAT INSULATOR
Remove the 3 bolts and heat insulator.
7. REMOVE OXYGEN SENSOR
Remove the 2 nuts, heat insulator, oxygen senso::.and
a. REMOVE on. DIPSTICK AND cums
Q Q (a) Pull out the oil dipstick.
f \
"_ “ Pull o-Ring
\
0 1;. féf
Remove the bolt and oil dipstick guide.
Remove the O—ring from the oil dipstick guide.
