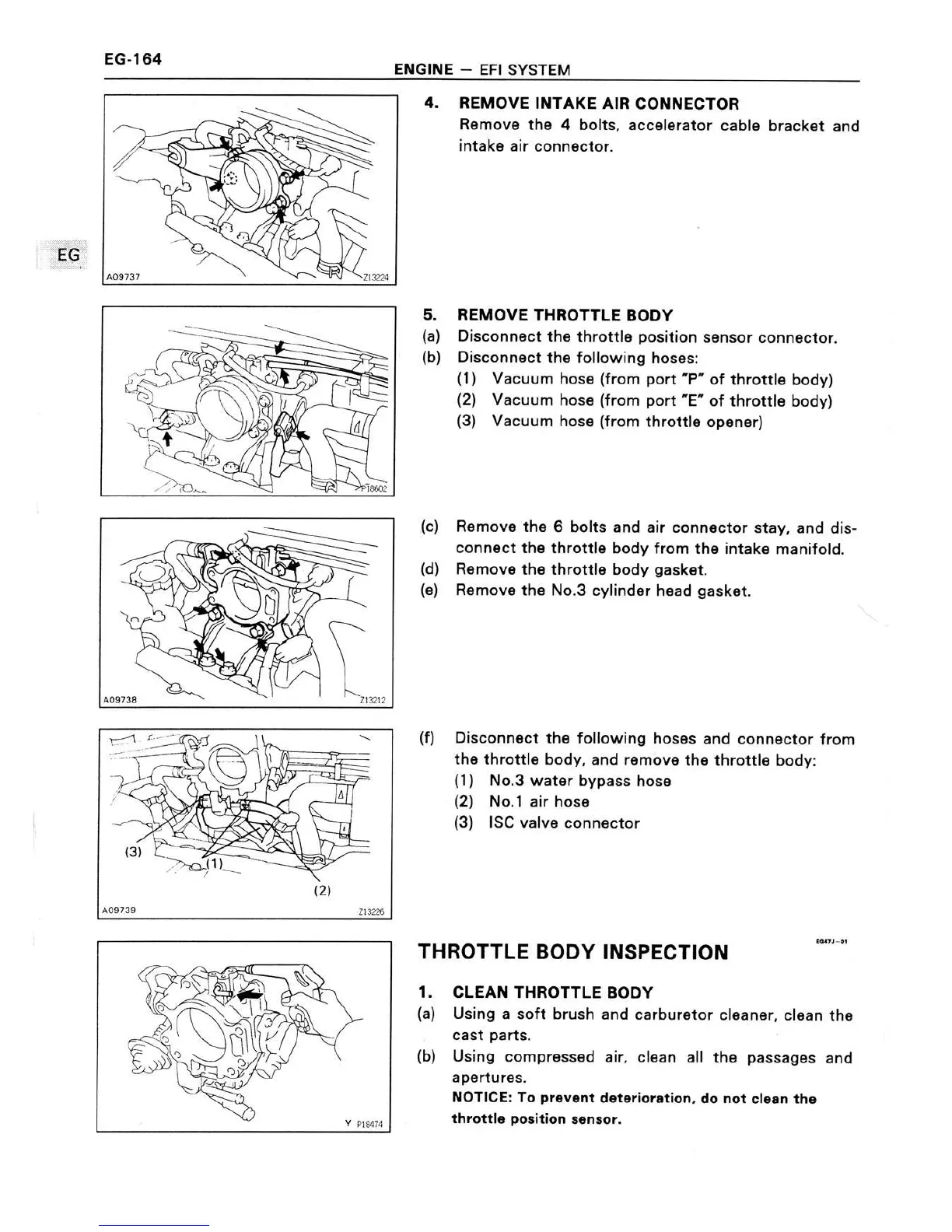

4. REMOVE INTAKE AIR CONNECTOR
Remove the 4 bolts, accelerator cable bracket and
intake air connector.
5. REMOVE THROTTLE BODY
Disconnect the throttle position sensor connector.
Disconnect the following hoses:
(1) Vacuum hose (from port 'P" of throttle body)
(2) Vacuum hose (from port "E" of throttle body)
(3) Vacuum hose (from throttle opener)
la)
lb)
Remove the 6 bolts and air connector stay, and dis-
connect the throttle body from the intake manifold.
Remove the throttle body gasket.
Remove the No.3 cylinder head gasket.
(0)
id)
(B)
(f) Disconnect the following hoses and connector from
the throttle body. and remove the throttle body:
(I) No.3 water bypass hose
(2) No.1 air hose
(3) ISC valve connector
SO11-I-0!
THROTTLE BODY INSPECTION
1. CLEAN THROTTLE BODY
(a) Using a soft brush and carburetor cleaner. clean the
cast parts.
Using compressed air, clean all the passages and
apertures.
NOTICE: To prevent deterioration. do not clean the
throttle position sensor.
lb)
