Toyota 3S-GTE User Manual

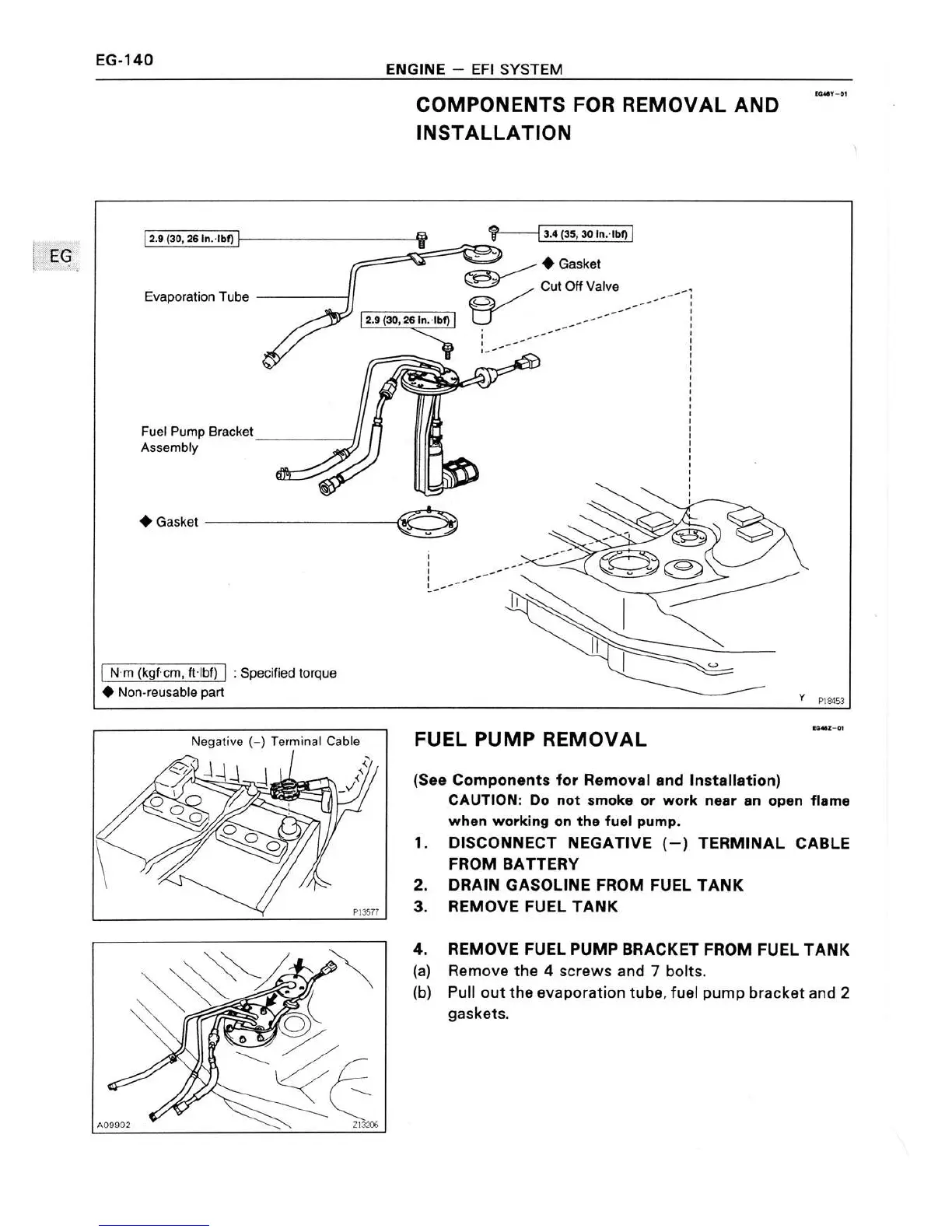

EG-140 ENGINE — EFI SYSTEM
ilfif-OI
COMPONENTS FOR REMOVAL AND
INSTALLATION
Evaporation Tube
Fuel Pump Bracket
Assembly
Q5?
§Gasket A A A
.1 --"-3”’
.1 I’, >
/
/ Q Gasket
Cut Off Valve , ,
¥ I I In‘:
/ii AV 71¢
Q
N-m (kgf-cm. it-Ibf) : Specified torque
O Non-reusable part
@
@ @5'
Q
»*T
\\§
i Negative (—) Terminal Cable
__l ,_ <5
- .'*_ -“
. ‘,2
§\<
iéé
AO9902 2132111
Y P18-453
IGIl—lII
FUEL PUMP REMOVAL
(See Components for Removal and Installation)
CAUTION: Do not smoke or work near an open flame
when working on the fuel pump.
1. DISCONNECT NEGATIVE (—) TERMINAL CABLE
FROM BATTERY
2. DRAIN GASOLINE FROM FUEL TANK
3. REMOVE FUEL TANK
REMOVE FUEL PUMP BRACKET FROM FUEL TANK
Remove the 4 screws and 7 bolts.
Pull out the evaporation tube. fuel pump bracket and 2
gaskets.
4.
la)
(b)
