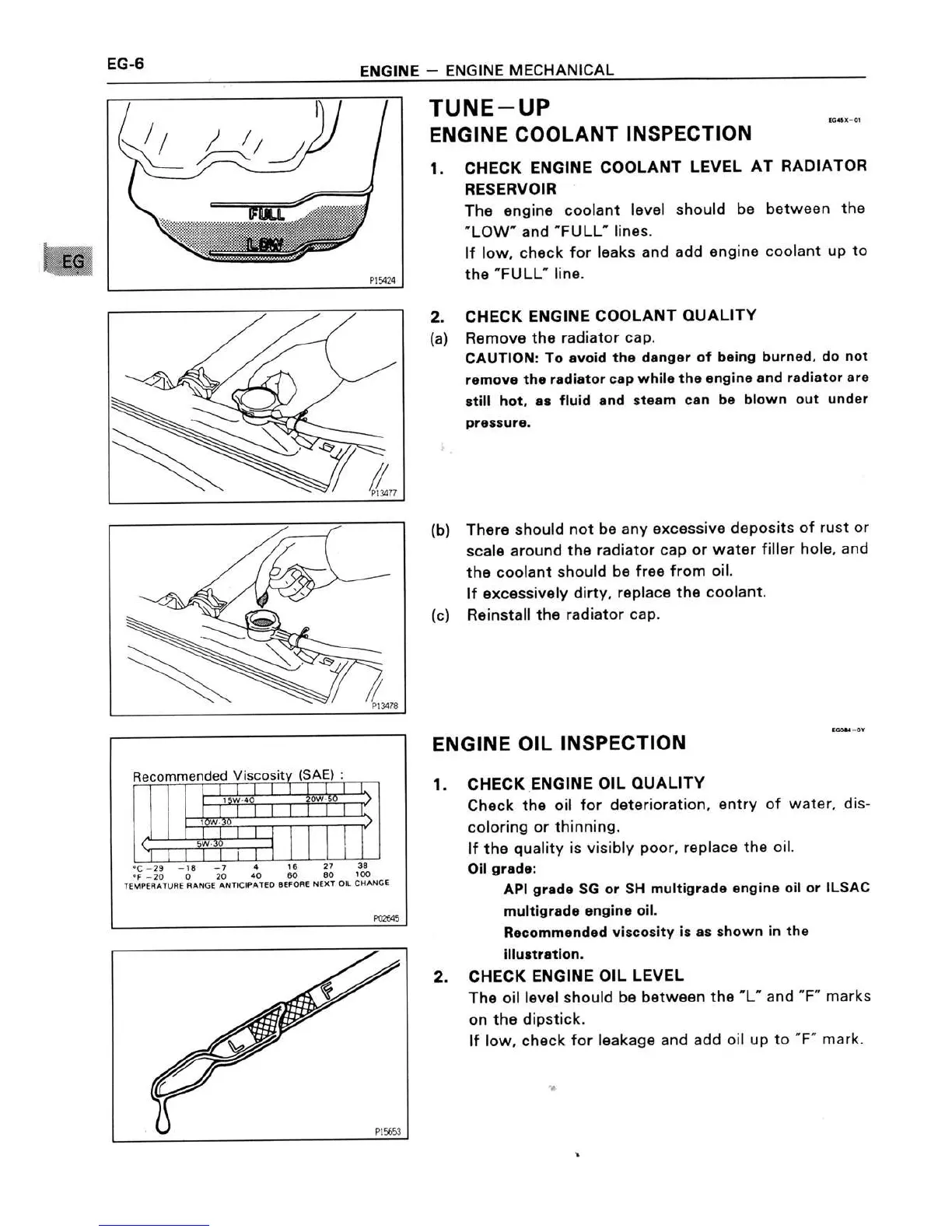

EG-6
ENGINE — ENGINE MECHANICAL
:5,:-:¢.\-:. . .
\/ /—\/J
ljI"|(
':I:-:-.w.----.---- ---.--4 - .- " - - ‘
-1-=1 1 J,
'1'" -2->:\:-at-ass:-:-:-rice-rv.ia-s-tia-vuI#“"‘
___/*1
H5424
S
J
/
/.19“
..“-‘é}'
Recommended Viscosity l$AEl :
QIIIIIIII
--.---
l"""“""e- l. ..‘.'.
°C—Z'9 -18 -
0
Pnasas
1-.
Ijai
I:.-.
I
.9,»
./‘
F — 20 O 20 40 GO 80 10°
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
/ M653
l TUNE—UP ‘mm
/ / ENGINE COOLANT INSPECTION
CHECK ENGINE COOLANT LEVEL AT RADIATOR
RESERVOIR
The engine coolant level should be between the
‘LOW’ and 'FULL" lines.
If low, check for leaks and add engine coolant up to
the "FULL" line.
CHECK ENGINE COOLANT QUALITY
Remove the radiator cap.
CAUTION: To avoid the danger of being burned. do not
remove the radiator cap while the engine and radiator are
still hot, as fluid and steam can be blown out under
pressure.
There should not be any excessive deposits of rust or
scale around the radiator cap or water filler hole, and
the coolant should be free from oil.
If excessively dirty, replace the coolant.
Reinstall the radiator cap.
lo0el—ev
ENGINE OIL INSPECTION
CHECK ENGINE OIL QUALITY
Check the oil for deterioration, entry of water, dis-
coloring or thinning.
If the quality is visibly poor, replace the oil.
Oil grade:
API grade SG or SH multigrade engine oil or ILSAC
multigrade engine oil.
Recommended viscosity is as shown in the
Illustration.
CHECK ENGINE OIL LEVEL
The oil level should be between the ‘L’ and "F" marks
on the dipstick.
If low, check for leakage and add oil up to "F" mark.
\
