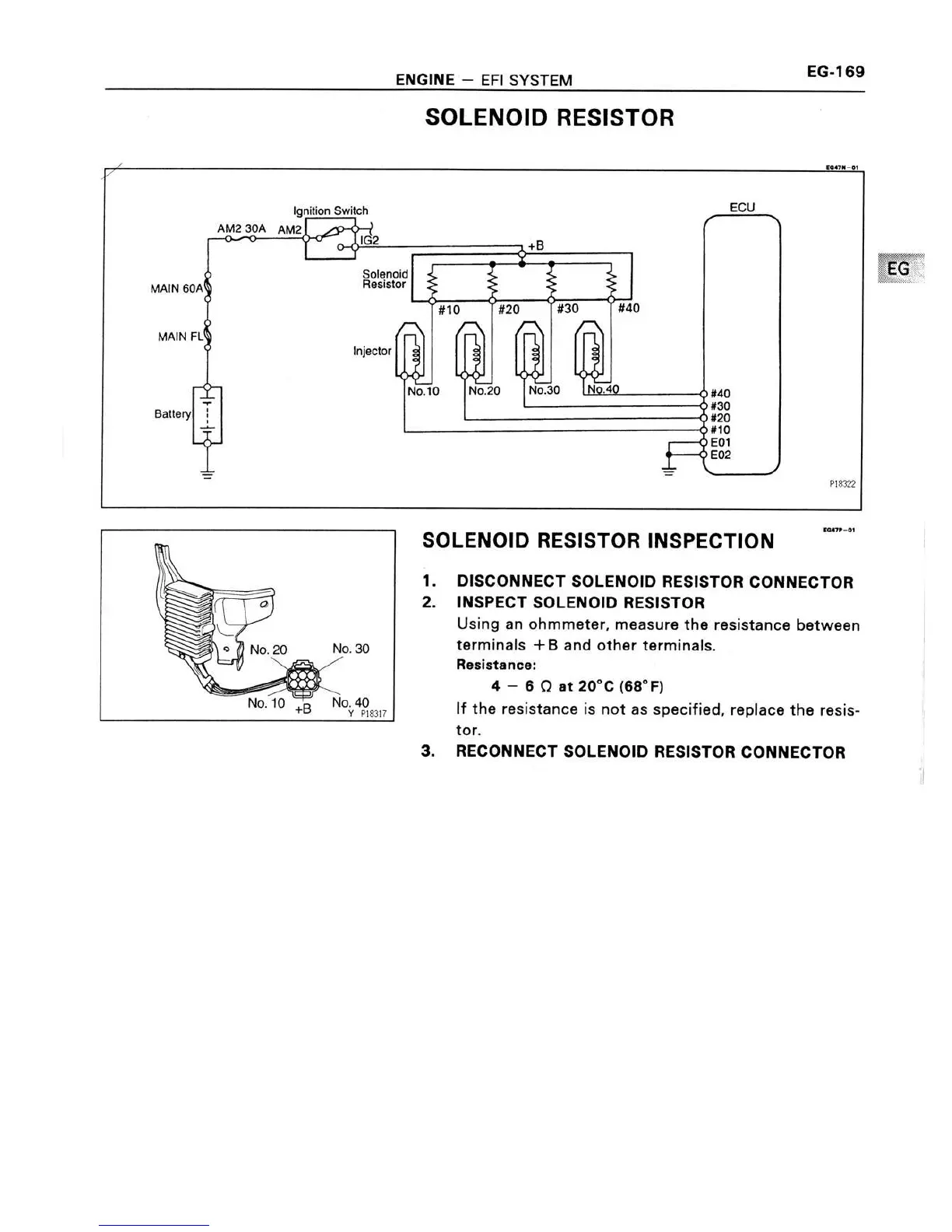

ENGINE - EFI SYSTEM E6469
SOLENOID RESISTOR
Ignition Switch
A .
A2 3 AM2 ."' . lG2
I '
- Solenoid
MAIN BOA (( Resistor
O
MAIN FL
' Injector
Battery
ECU
#10 #20 #30 #40
No.10 No.20 No.30 .4 #40
I30
' #20
#10
E01
E02
' i>m22
Z,/illlml’
r No. 20 N0. 30
I No.10 +8 No§4g83]_
SOLENOID RESISTOR INSPECTION """"
1.
2.
DISCONNECT SOLENOID RESISTOR CONNECTOR
INSPECT SOLENOID RESISTOR
Using an ohmmeter. measure the resistance between
terminals +B and other terminals.
Resistance:
4 — 6 Q at 20°C (68°F)
If the resistance is not as specified. replace the resis-
tor.
3. RECONNECT SOLENOID RESISTOR CONNECTOR
