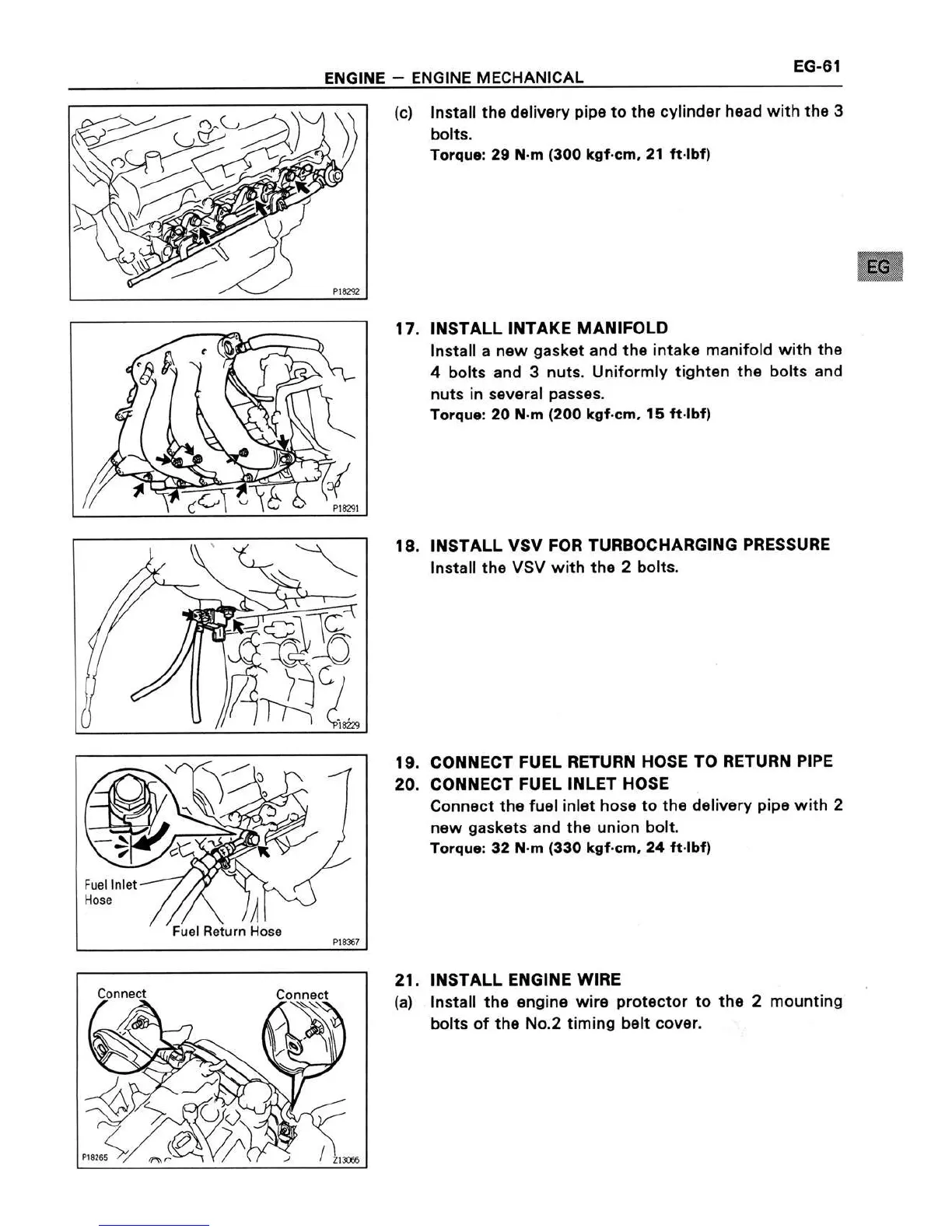

ENGINE — ENGINE MECHANICAL EG-61
,,>/ r's§_»
(c) Install the delivery pipe to the cylinder head with the 3
M Z > v bolts.
I, Torque: 29 N-m (300 kgf-cm. 21 ft-Ibf)
Z {"‘; @9
\ I74’ ér %
/ -
‘.“l\_, 0 3&3» i,
'\@" 7\*‘>f1 / ti;-All
én\O@O»i %
31
1
" 26?
>z;2"""
-— afi ,<i'*"
Fuel Return Hose
P1815?
CORRECT Connect
\\
Pis2s§
rf\ I‘
(.
‘\ M
{A
g
INSTALL INTAKE MANIFOLD
Install a new gasket and the intake manifold with the
4 bolts and 3 nuts. Uniformly tighten the bolts and
nuts in several passes.
Torque: 20 N-m (200 kgf-cm. 15 ft-Ibf)
INSTALL VSV FOR TURBOCHARGING PRESSURE
Install the VSV with the 2 bolts.
CONNECT FUEL RETURN HOSE T0 RETURN PIPE
CONNECT FUEL INLET HOSE
Connect the fuel inlet hose to the delivery pipe with 2
new gaskets and the union bolt.
Torque: 32 N-m (330 kgf-cm. 24 ft-Ibf)
INSTALL ENGINE WIRE
Install the engine wire protector to the 2 mounting
bolts of the No.2 timing belt cover.
