ENGINE - TURBOCHARGER SYSTEM E6435
4-
‘*3-
' a(\<\.
‘Q-="'*“3“‘\
at».
/\
- -._::.-_::¢°\\\
I; a2 - 115 kPa
ll SST
//.
.@" *
rJt’?\\ /
~¢
Pl830l
4-=1 PUG‘, O (a)
st‘ ":=@Z¢
""#1§~ t\
PI 3663

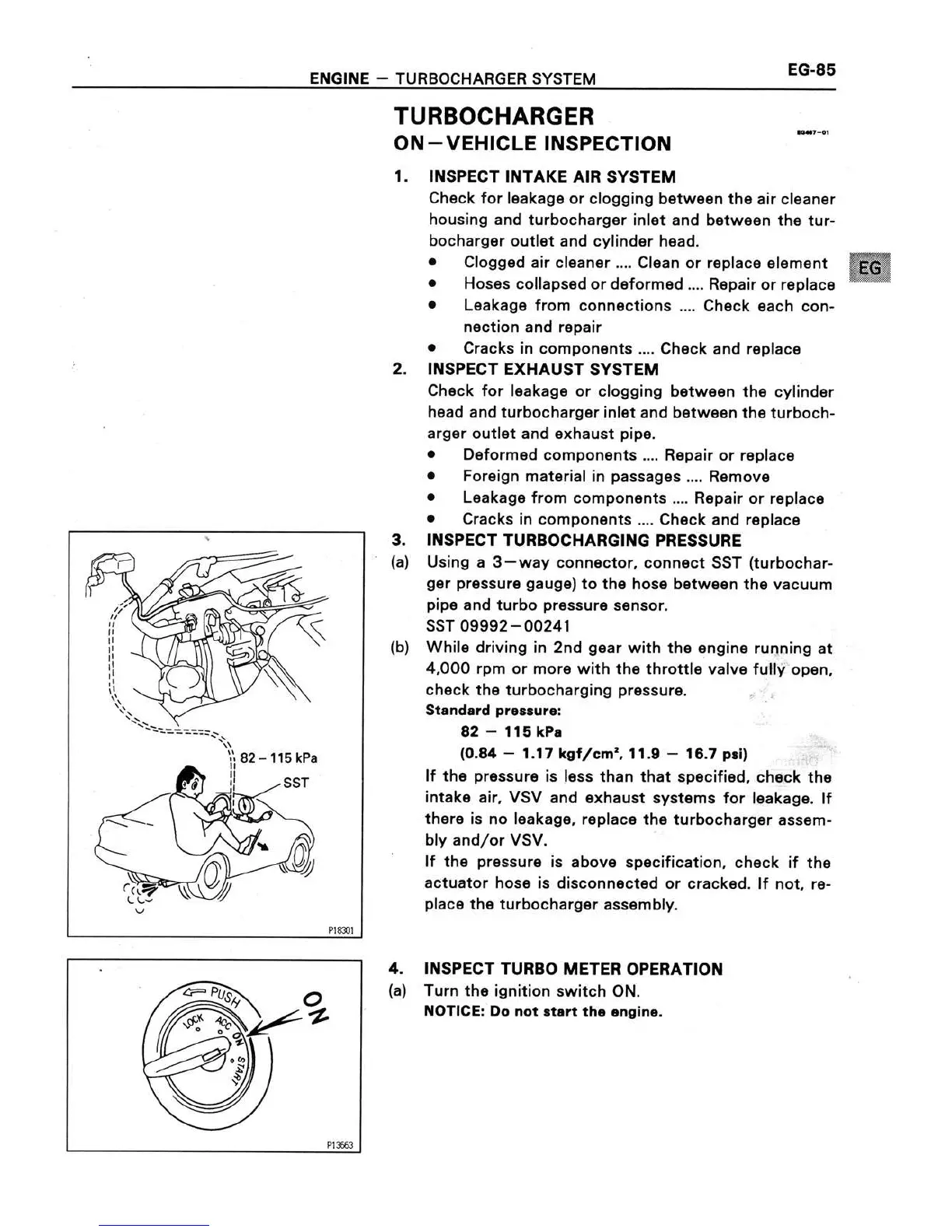

TURBOCHARGER
ON—VEHlCLE INSPECTION
INSPECT INTAKE AIR SYSTEM
Check for leakage or clogging between the air cleaner
housing and turbocharger inlet and between the tur-
bocharger outlet and cylinder head.
0 Clogged air cleaner Clean or replace element
O Hoses collapsed or deformed Repair or replace
I Leakage from connections Check each con-
nection and repair
0 Cracks in components Check and replace
INSPECT EXHAUST SYSTEM
Check for leakage or clogging between the cylinder
head and turbocharger inlet and between the turboch-
arger outlet and exhaust pipe.
I Deformed components Repair or replace
0 Foreign material in passages Remove
I Leakage from components Repair or replace
I Cracks in components Check and replace
INSPECT TURBOCHARGING PRESSURE
Using a 3-way connector. connect SST (turbochar-
ger pressure gauge) to the hose between the vacuum
pipe and turbo pressure sensor.
SST 09992-00241
While driving in 2nd gear with the engine running at
4,000 rpm or more with the throttle valve fully open.
check the turbocharging pressure.
Standard pressure:
82 —- 115 kPe
(0.84 — 1.17 kgf/cm‘, 11.9 — 16.7 psi)
If the pressure is less than that specified. check the
intake air, VSV and exhaust systems for leakage. If
there is no leakage, replace the turbocharger assem-
bly and/or VSV.
If the pressure is above specification. check if the
actuator hose is disconnected or cracked. If not. re-
place the turbocharger assembly.
INSPECT TURBO METER OPERATION
Turn the ignition switch ON.
NOTICE: Do not start the engine.
