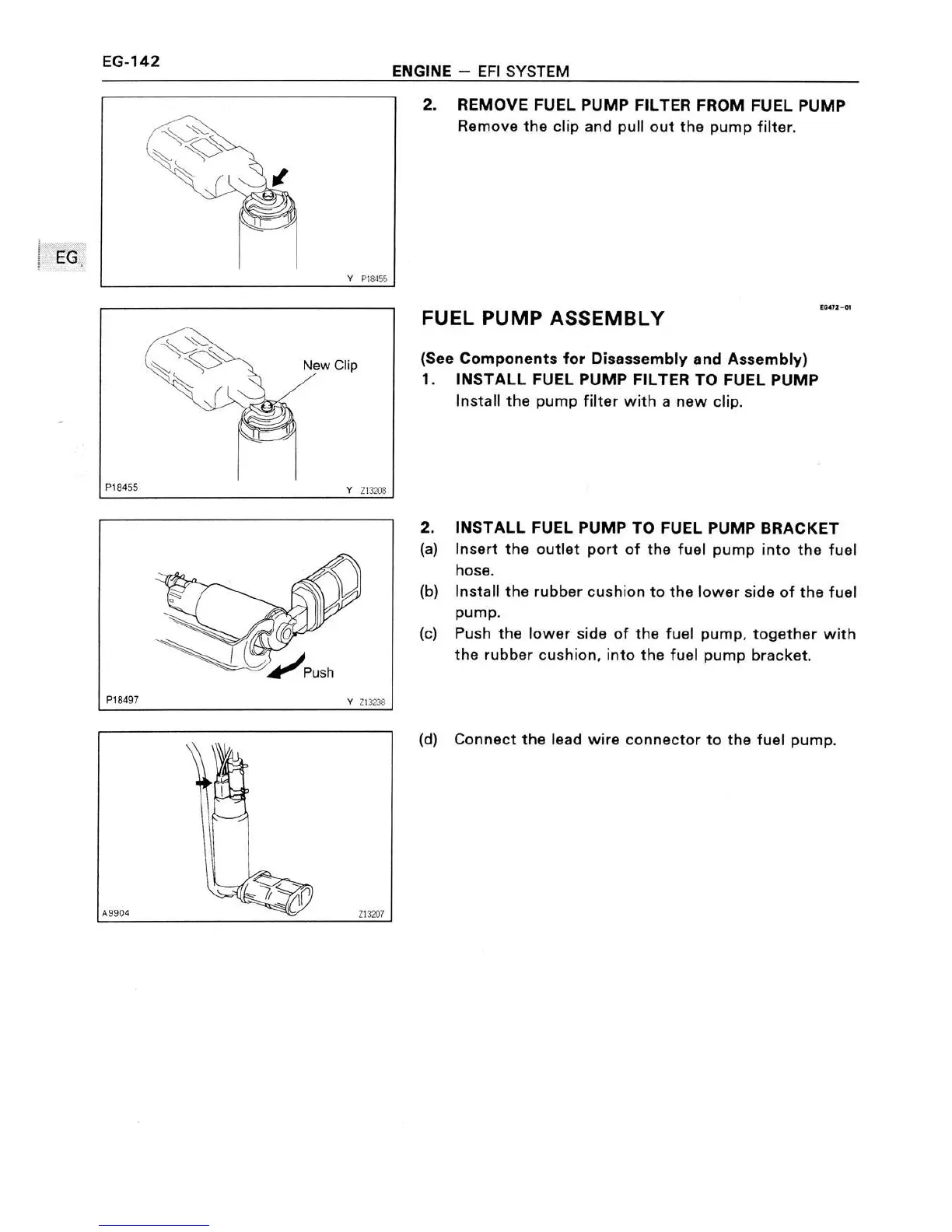

EG-142
ENGINE -— EFI SYSTEM
r /""\
/ §\ \\,
ll
lt R.‘ \
L; _
//L11?/i
/M
(A
R
EG I
Y P184155
2. REMOVE FUEL PUMP FILTER FROM FUEL PUMP
Remove the clip and pull out the pump filter.
//>
/’
Q
New Clip
P181155 Y Liqltg
[G171 -DI
FUEL PUMP ASSEMBLY
(See Components for Disassembly and Assembly)
1. INSTALL FUEL PUMP FILTER TO FUEL PUMP
Install the pump filter with a new clip.
INSTALL FUEL PUMP T0 FUEL PUMP BRACKET
Insert the outlet port of the fuel pump into the fuel
hose.
Install the rubber cushion to the lower side of the fuel
pump.
Push the lower side of the fuel pump, together with
the rubber cushion, into the fuel pump bracket.
2.
(8)
(b)
(cl
~?“aIr_,<~
. r
1-5 \
A9904 \ 212201
(d) Connect the lead wire connector to the fuel pump.
