Whirlpool Cabrio WTW8500DC User Manual

3-2
n
Whirlpool 2014 CABRIO
®
Direct Drive Washer
INSTALLATION
Installation Requirements
2
Optional tools:
Parts supplied:
NOTE: All parts supplied for installation are in
cardboard insert in the top of the washer.
LOCATION REQUIREMENTS
Select proper location for your washer to improve performance
and minimize noise and possible “washer walk”. Install your
washer in a basement, laundry room, closet, or recessed area.
43"
(1092 mm)
27"
(686 mm)
28"
(711 mm)
Parts needed: (Not supplied with washer)
To order, please refer to toll-free phone numbers on back page
of your Use and Care Guide.
■
8212656RP 10 ft. (3.0 m) Inlet hose, Black EPDM (2 pack)
■
8212641RP 5 ft. (1.5 m) Inlet hose, Black EPDM (2 pack)
■
8212646RP 4 ft. (1.2 m) Inlet hose, Black EPDM (2 pack)
■
8212545RP 5 ft. (1.5 m) Inlet hose, Red and Blue EPDM
(2 pack)
■
8212487RP 5 ft. (1.5 m) Nylon braided inlet hose (2 pack)
■
8212638RP 6 ft. (1.8 m) Nylon braided inlet hose, space
saving 90° elbow, hypro-blue steel couplings
(2 pack)
■
8212637RP 6 ft. (1.8 m) Inlet hose, Black EPDM, space
saving 90° elbow, hypro-blue steel couplings
(2 pack)
Alternate parts: (Not supplied with washer)
Your installation may require additional parts. To order, please
refer to toll-free numbers on back page of your Use and Care
Guide.
If you have: You will need:
Overhead sewer Standard 20 gal. (76 L) 39" (990 mm)
tall drain tub or utility sink, sump
pump and connectors (available from
local plumbing suppliers)
1" (25 mm) standpipe 2" (51 mm) diameter to 1" (25 mm)
diameter Standpipe Adapter
Part Number 3363920
Connector Kit Part Number 285835
Drain hose too short Extension Drain Hose Part
Number 285863
Connector Kit Part Number 285835
Lint clogged drain Drain Protector Part Number 367031
Connector Kit Part Number 285835
INSTALLATION REQUIREMENTS

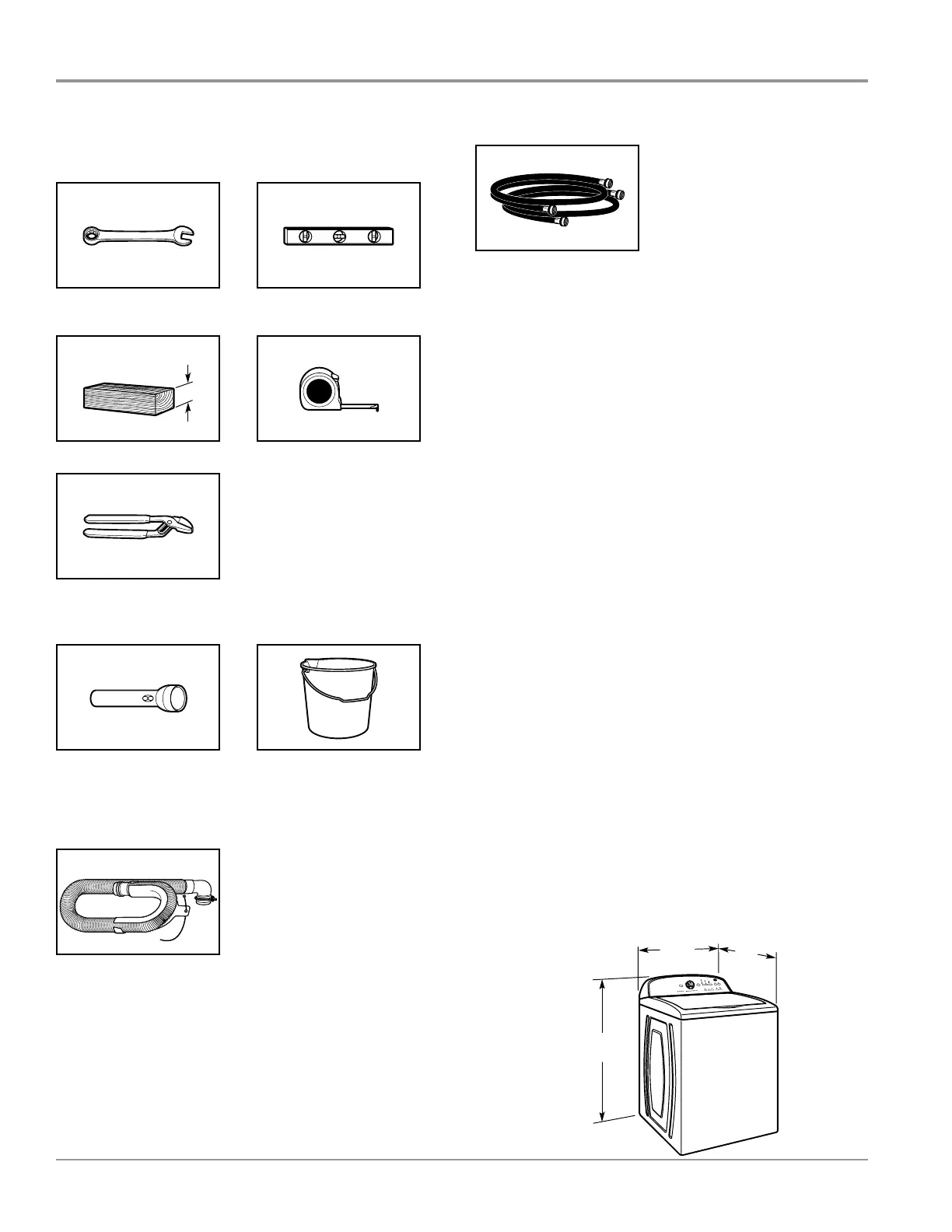

Tools and Parts
Gather required tools and parts before starting installation.
4" min
(102 mm)
Wood block
Adjustable or open end
wrench
9
/
16
" (14 mm)
Ruler or measuring tape
Level
Inlet hoses with
flat washers
Pliers that open to
1
3
⁄
4
" (44.5 mm)
Flashlight Bucket
Drain hose with clamp,
U-form, and cable tie
Tools needed:

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
