Whirlpool 2014 CABRIO
®
Direct Drive Washer
COMPONENT ACCESS
Removing the Tub Ring, Impeller, and Basket
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

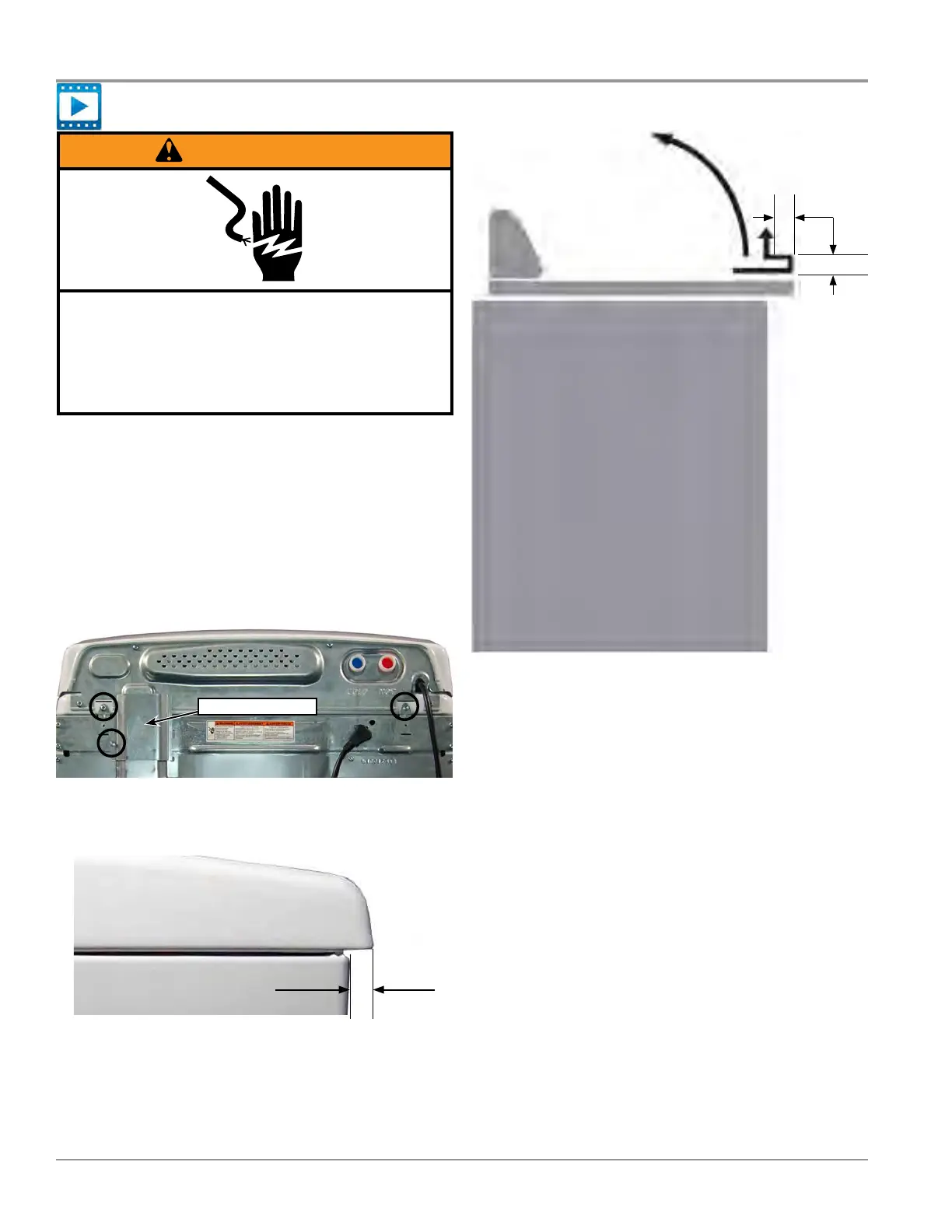

Lifting the Top Panel
1. Unplug washer or disconnect power.
2. Turn o water supply to washer.
3. Disconnect hot and cold inlet water hoses.
4. Tape lid down.
5. Remove three (3) 1/4” hex-head mounng screws from
the rear of the console as indicated in Figure 1. Remove
harness cover and set aside.
Harness Cover
Figure 1
6. Slide top forward about 1/2” (see Figure 2).
½
”
Figure 2
7. Raise the top about 1/4”. Then, while sll keeping it lied,
push the top back about 1/4 “ (see Figure 3).
¼
”
¼
”
Figure 3
8. Tilt the top up on the rear hinges.

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
