COMPONENT ACCESS
Whirlpool 2014 CABRIO
®
Direct Drive Washer
n
4-15

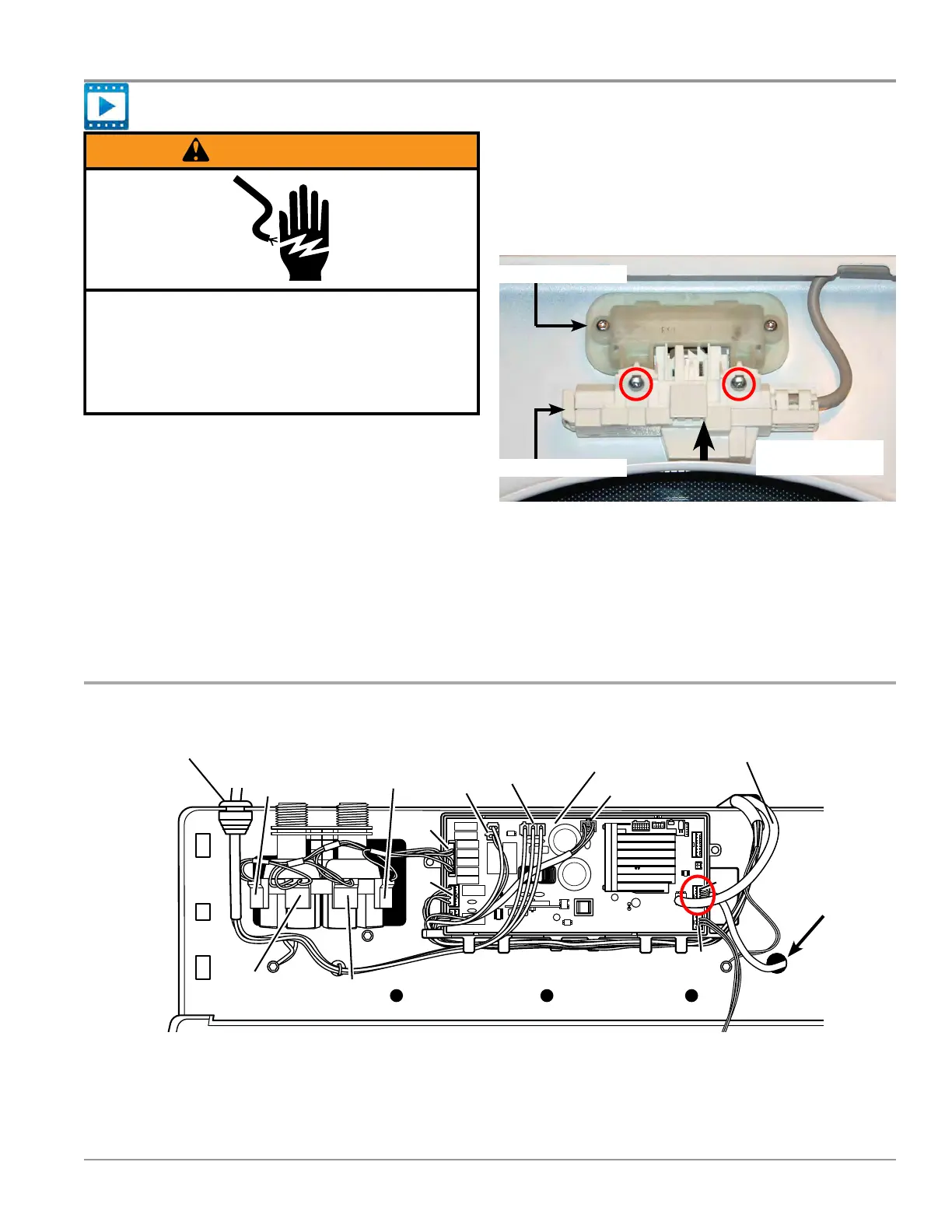

Removing the Lid Lock
1. Unplug washer or disconnect power.
2. Turn o water supply to washer.
3. Disconnect hot and cold inlet water hoses.
4. Perform the procedures on pages 4-3 or 4-4, “Removing
the Console” prior to performing the following steps.
5. Disconnect the Lid Lock connector “J6” from the Main
Control (see Figure 1).
6. Feed the Lid Lock harness through the opening in the
washer top panel (see Figure 1).
Removing the Lid Lock
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
3$*(
FOR SERVICE TECHNICIAN’S USE ONLY
DO NOT REMOVE OR DESTROY
Component Locations – Console Electronics & Valves (Figure 6)
Component Locations, Bottom View – Drive System & Drain Pump (Figure 7)
Main Control Board
J2
J4
J1
AC Cord
Hot Water
Valve
Fabric
Softener
Valve
Pressure Hose
User Interface
J6
J18
Drain Pump
Motor/Shifter
Connector
Cold Water
Valve
Bleach/Oxi
Valve
(not on all
models)
J5
Recirculation PumpMotor Cover
Motor
Bolt
Front of Washer
Rear of Washer
J12
Figure 1
Feed harness
through this
opening.
7.
Perform the procedures on page 4-8, “Liing the Top
Panel” prior to performing the following steps.
8. Remove the Lid Lock harness from the clips on right side
of top panel.
9. Remove the two Phillips screws (circled) securing the lid
lock assembly to the lid (see Figure 2). Li the lid lock
assembly up and away from the lock adapter (see Figure 2).
Lid Lock Assembly
Lid Lock Adapter
Li up away from
lip of opening
Figure 2

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
