Whirlpool Cabrio WTW8500DC User Manual

COMPONENT ACCESS
Whirlpool 2014 CABRIO
®
Direct Drive Washer
n
4-13
Preparation
1. Unplug washer or disconnect power.
2. Turn o water supply to washer.
3. Disconnect hot and cold inlet water hoses and remove the
drain hose from the standpipe or laundry tub.
4. Tape the washer lid closed.
5. Carefully lay the washer on its back panel. Place padding
on the oor to protect the surfaces.
6. Remove sound padding and set aside.

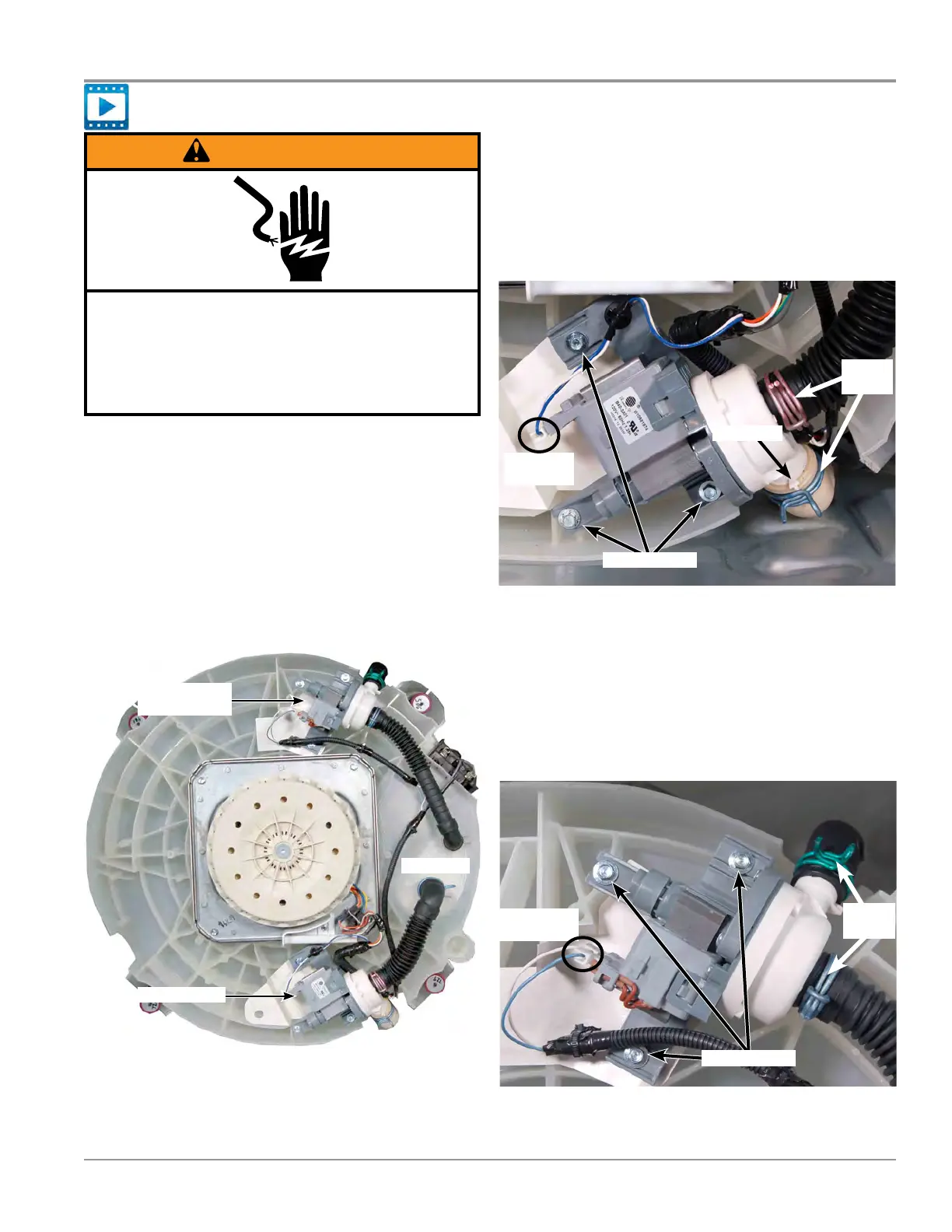

Sump
Recirculaon
Pump
Drain Pump
Figure 1
Removing the Pumps
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Removing the Drain Pump (Figure 2)
1. Disconnect harness (2 terminals) from drain pump.
2. Loosen the hose clamps and pull the inlet and outlet drain
hoses o the pump. Note that there is a tab on the outlet
connector that ts into a slot in the hose.
3. Remove the three (3) 8mm hex-head screws from the
drain pump and remove the pump from the tub.
Hose
Clamps
8mm Screws
Hose Tab
Pump
Terminals
Figure 2
Removing the Recirculation Pump (Figure 3)
1. Disconnect harness (2 terminals) from recirculaon pump.
2. Loosen the hose clamps and pull the inlet and outlet drain
hoses o the pump. Note that there is a tab on the outlet
connector that ts into a slot in the hose.
3. Remove the three (3) 8mm hex-head screws from the
drain pump and remove the pump from the tub.
Pump
Terminals
Hose
Clamps
8mm Screws
Figure 3

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
