COMPONENT ACCESS
Whirlpool 2014 CABRIO
®
Direct Drive Washer
n
4-11
Removing the Motor and Drive Assembly
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Preparation
1. Unplug washer or disconnect power.
2. Turn o water supply to washer.
3. Disconnect hot and cold inlet water hoses and remove the
drain hose from the standpipe or laundry tub.
4. Tape the washer lid closed.
5. Carefully lay the washer on its back panel. Place padding
on the oor to protect the surfaces.
6. Remove sound padding and set aside.
Removing the Rotor, Clutch Coil, and Stator

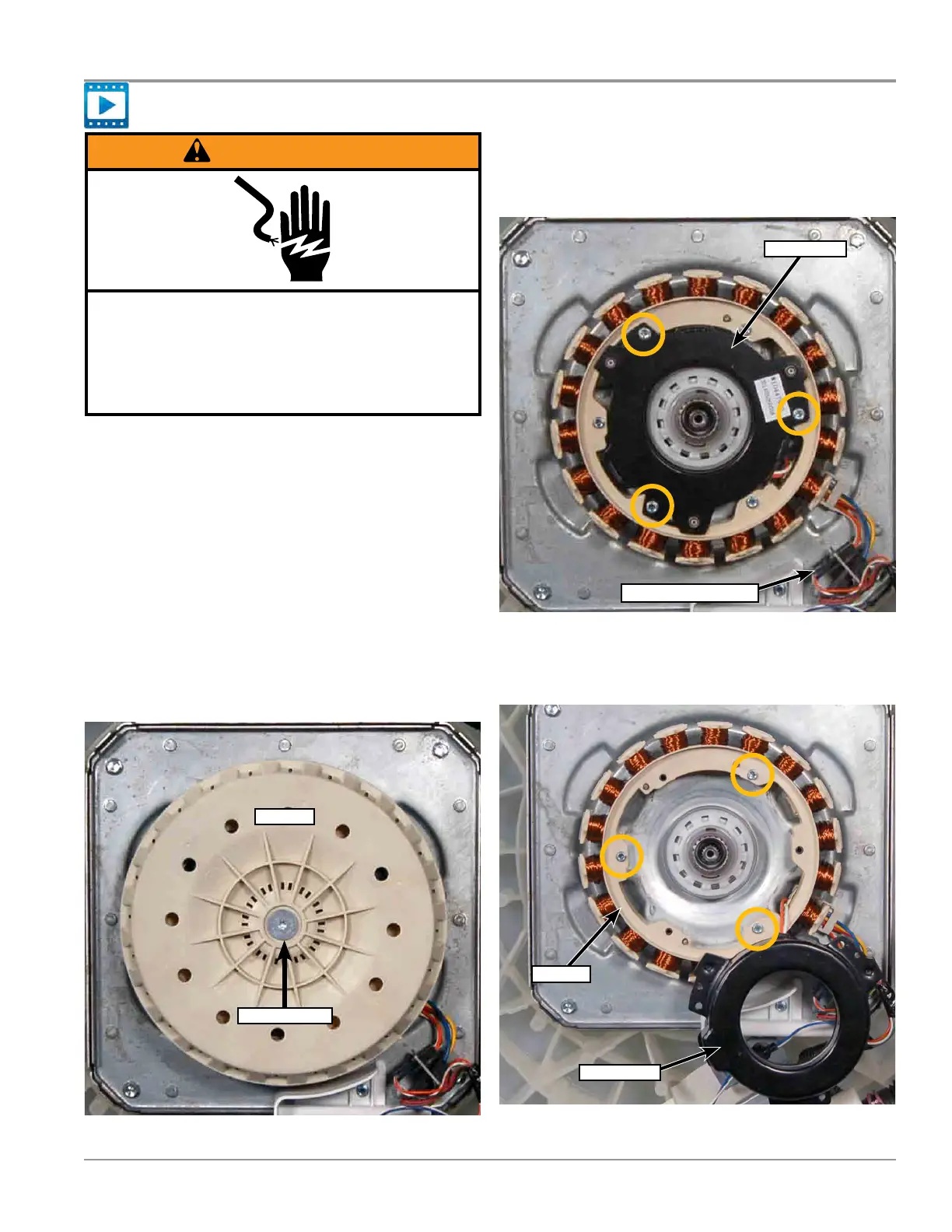

1. Use a 4mm Allen wrench to remove the rotor mounng
screw (see Figure 1). Rock the rotor back and forth unl
the rotor has been pulled away from the stator.
Rotor
Rotor Screw
Figure 1
2. Unplug the clutch coil and stator connectors. Remove all
connectors from the bracket (see Figure 2).
3. Use a 7mm socket to remove the three (3) clutch coil
mounng screws. Allow the clutch coil to hang unl the
stator is removed (see Figure 2).
Clutch Coil
Unplug Connectors
Figure 2
4. Use a 7mm socket to remove the three (3) stator
mounng screws. Remove and set aside both the stator
and clutch coil assembly (see Figure 3).
Rotor
Clutch Coil
Figure 3
