Whirlpool Cabrio WTW8500DC User Manual

TESTING
Whirlpool 2014 CABRIO
®
Direct Drive Washer
n
6-3
For Service Technician Use Only
COMPONENT LOCATIONS — CONSOLE ELECTRONICS & VALVES
COMPONENTS LOCATIONS, BOTTOM VIEW — DRIVE SYSTEM & PUMPS*
3$*(
FOR SERVICE TECHNICIAN’S USE ONLY
DO NOT REMOVE OR DESTROY

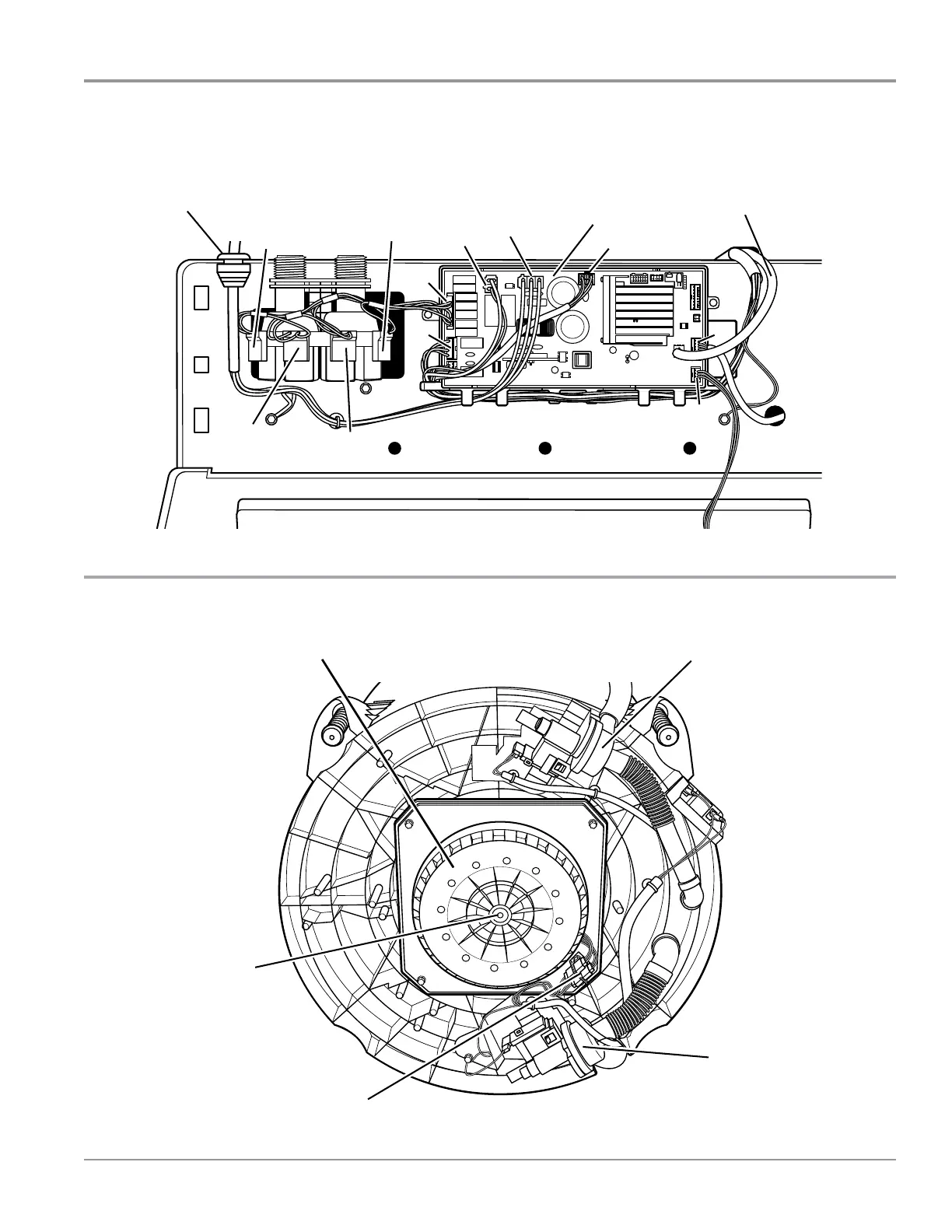

Component Locations – Console Electronics & Valves (Figure 6)
Component Locations, Bottom View – Drive System & Drain Pump (Figure 7)
Main Control Board
J2
J4
J1
AC Cord
Hot Water
Valve
Fabric
Softener
Valve
Pressure Hose
User Interface
J6
J18
Drain Pump
Motor/Shifter
Connector
Cold Water
Valve
Bleach/Oxi
Valve
(not on all
models)
J5
Recirculation PumpMotor Cover
Motor
Bolt
Front of Washer
Rear of Washer
J12
3$*(
FOR SERVICE TECHNICIAN’S USE ONLY
DO NOT REMOVE OR DESTROY
Component Locations – Console Electronics & Valves (Figure 6)
Component Locations, Bottom View – Drive System & Drain Pump (Figure 7)
Main Control Board
J2
J4
J1
AC Cord
Hot Water
Valve
Fabric
Softener
Valve
Pressure Hose
User Interface
J6
J18
Drain Pump
Motor/Shifter
Connector
Cold Water
Valve
Bleach/Oxi
Valve
(not on all
models)
J5
Recirculation PumpMotor Cover
Motor
Bolt
Front of Washer
Rear of Washer
J12

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
