Whirlpool 2014 CABRIO
®
Direct Drive Washer
COMPONENT ACCESS

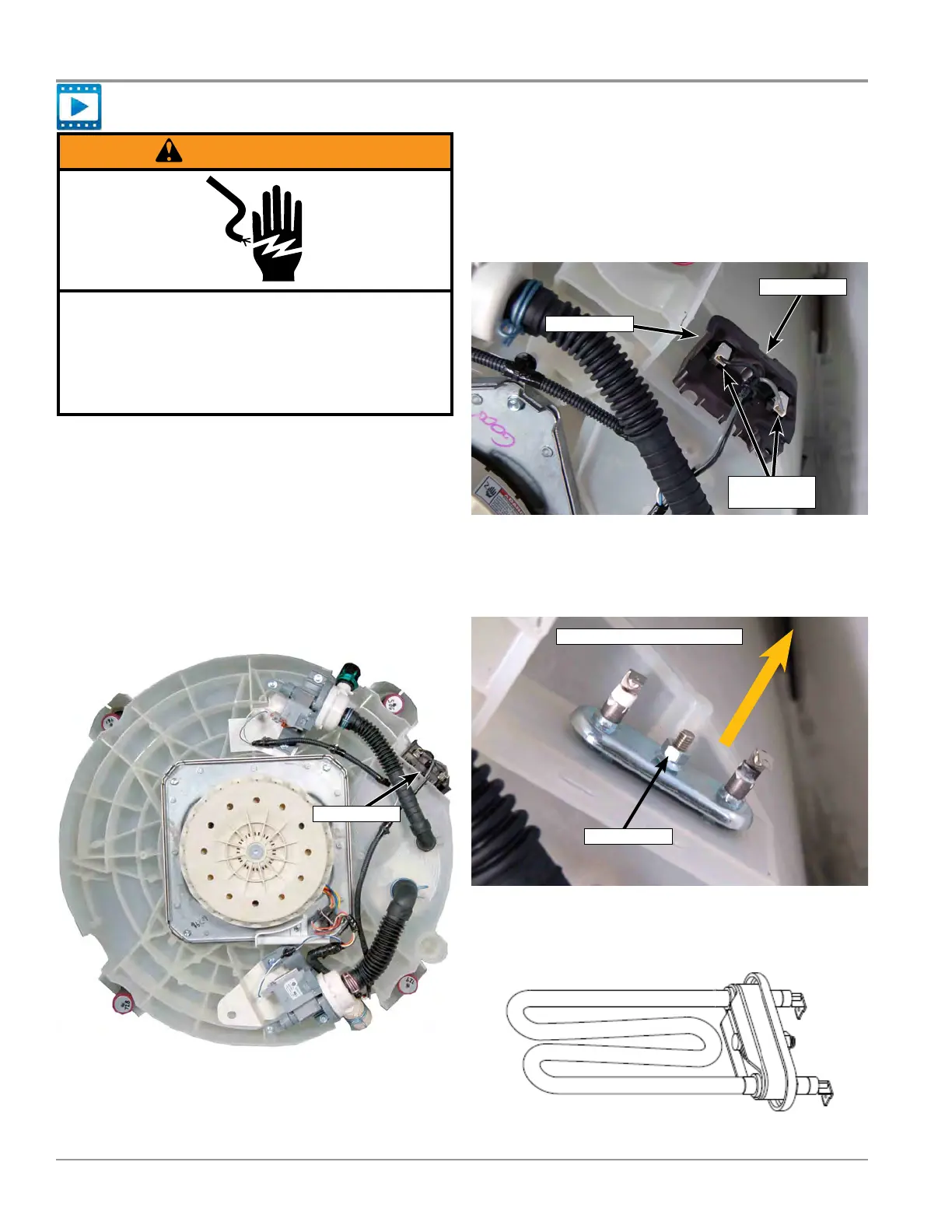

Removing the Heater
1. Disconnect harness (2 terminals) from the Heater
Assembly (see Figure 2).
2. Remove the 8mm hex-head screw securing the heater
cover to the tub. Remove heater cover from washer (see
Figure 2).
Heater
Terminals
8mm Screw
Heater Cover
Figure 2
3. Use a 10mm socket to loosen the nut securing heater
element to tub. When the heater gasket has de-
compressed suciently, remove the element from tub
assembly (see Figure 3).
10mm Nut
Loosen Nut and Remove
Figure 3
Heater Element
Figure 4
Removing the Heater
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Preparation
1. Unplug washer or disconnect power.
2. Turn o water supply to washer.
3. Disconnect hot and cold inlet water hoses and remove the
drain hose from the standpipe or laundry tub.
4. Tape the washer lid closed.
5. Carefully lay the washer on its back panel. Place padding
on the oor to protect the surfaces.
6. Remove sound padding and set aside.
Heater
Figure 1

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
