Whirlpool 2014 CABRIO
®
Direct Drive Washer
INSTALLATION
4
INSTALLATION INSTRUCTIONS
Before you start: remove shipping materials
It is necessary to remove all shipping materials for proper
operation and to avoid excessive noise from washer.
Move washer to within 4 ft (1.2 m) of its nal location; it must
be in a fully upright position.
NOTE: To avoid oor damage, set washer onto cardboard
before moving it and make sure lid is taped shut.
To avoid damaging oor, place cardboard supports from
shipping carton on oor behind washer. Tip washer back
and place on cardboard supports. Remove shipping base
by rotating base 90° to the right. Set washer upright.
IMPORTANT: Removing shipping base is necessary for proper
operation. If your washer includes a sound shield, please refer
to the instructions included with the sound shield to install it at
this time.
ELECTRICAL REQUIREMENTS
■
A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical supply
is required. A time-delay fuse or circuit breaker is recommended.
It is recommended that a separate circuit breaker serving only this
appliance be provided.
■
This washer is equipped with a power supply cord having
a 3 prong grounding plug.
■
To minimize possible shock hazard, the cord must be plugged
into a mating, 3 prong, grounding-type outlet, grounded in
accordance with local codes and ordinances. If a mating outlet
is not available, it is the personal responsibility and obligation
of the customer to have the properly grounded outlet installed
by a qualied electrician.
■
If codes permit and a separate ground wire is used, it is
recommended that a qualied electrician determine that
the ground path is adequate.
■
Do not ground to a gas pipe.
■
Check with a qualied electrician if you are not sure the
washer is properly grounded.
■
Do not have a fuse in the neutral or ground circuit.

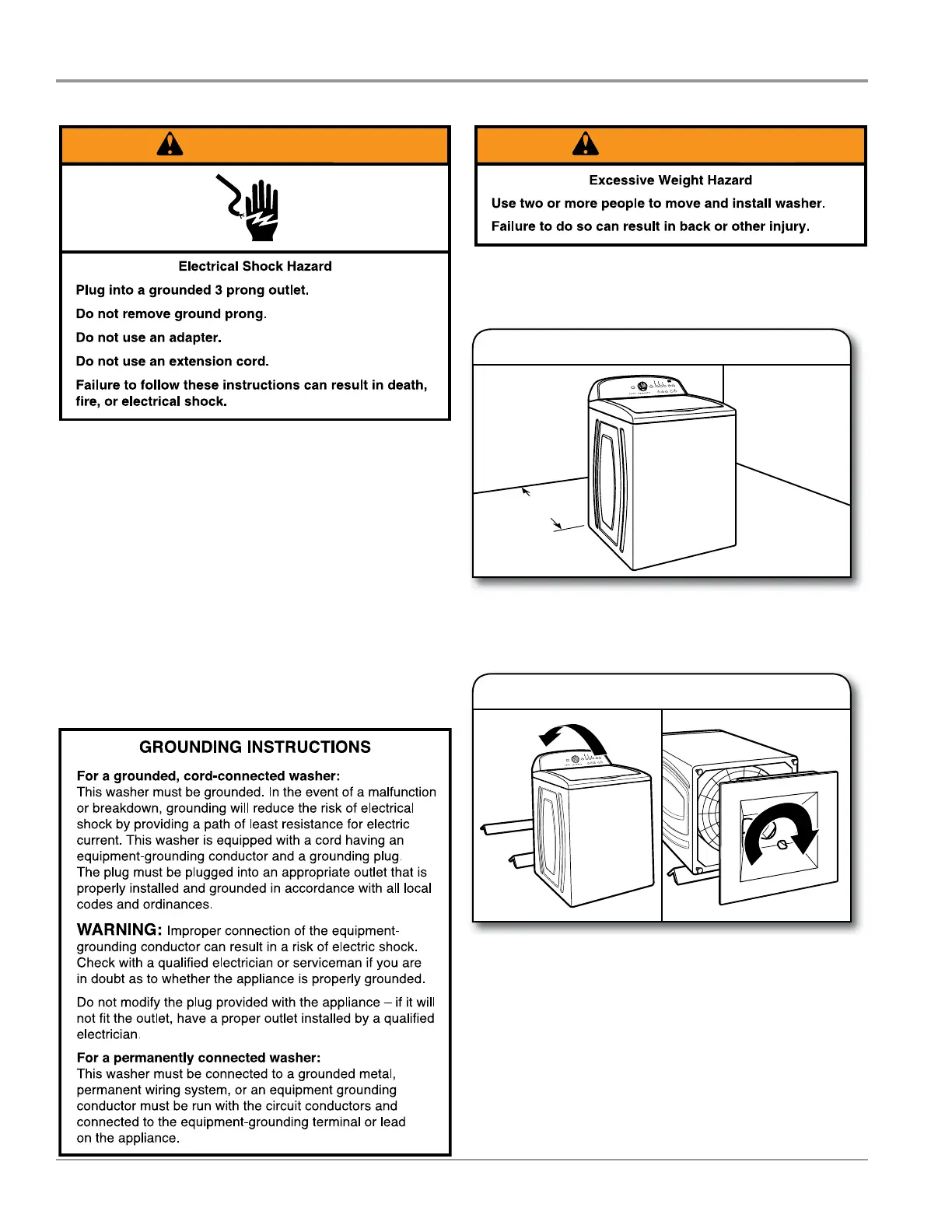

1. Move washer
48"
(1.2 m)
2. Remove shipping base
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
