Whirlpool Cabrio WTW8500DC User Manual

COMPONENT ACCESS
Whirlpool 2014 CABRIO
®
Direct Drive Washer
n
4-5
Plasc Mounng Clips

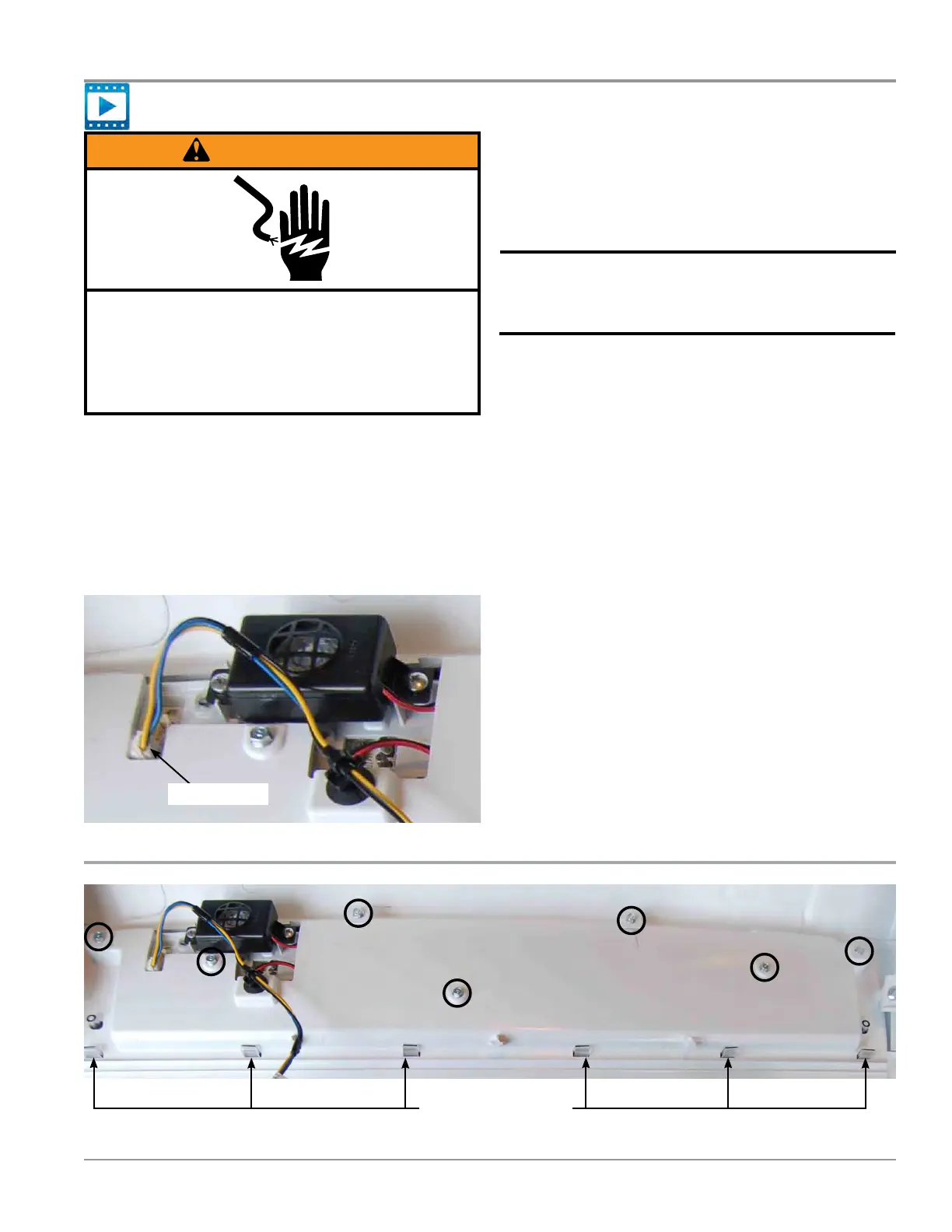

Removing the User Interface
1. Unplug washer or disconnect power.
2. Perform the procedures on pages 4-3 or 4-4, “Removing
the Console” prior to performing the following steps.
3. Disconnect the 3-wire harness from the User Interface
(see Figure 1).
Figure 1
Removing the User Interface (UI)
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Figure 2
4. Remove the seven (7) 1/4” hex-head screws securing the
User Interface to the console (see Figure 2).
5. Using a at blade screwdriver, gently, depress the six
plasc mounng clips to release the User Interface from
the console (see Figure 2).
6. User Interface should separate and li away from console.
REASSEMBLY NOTE: When reinstalling the User Interface to
the console, only hand tighten the seven (7) hex-head screws
until snug. Using a power driver will strip the screw holes and
stress the capacitive touch user interface.
3-Wire Harness

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
