COMPONENT ACCESS
Whirlpool 2014 CABRIO
®
Direct Drive Washer
n
4-3

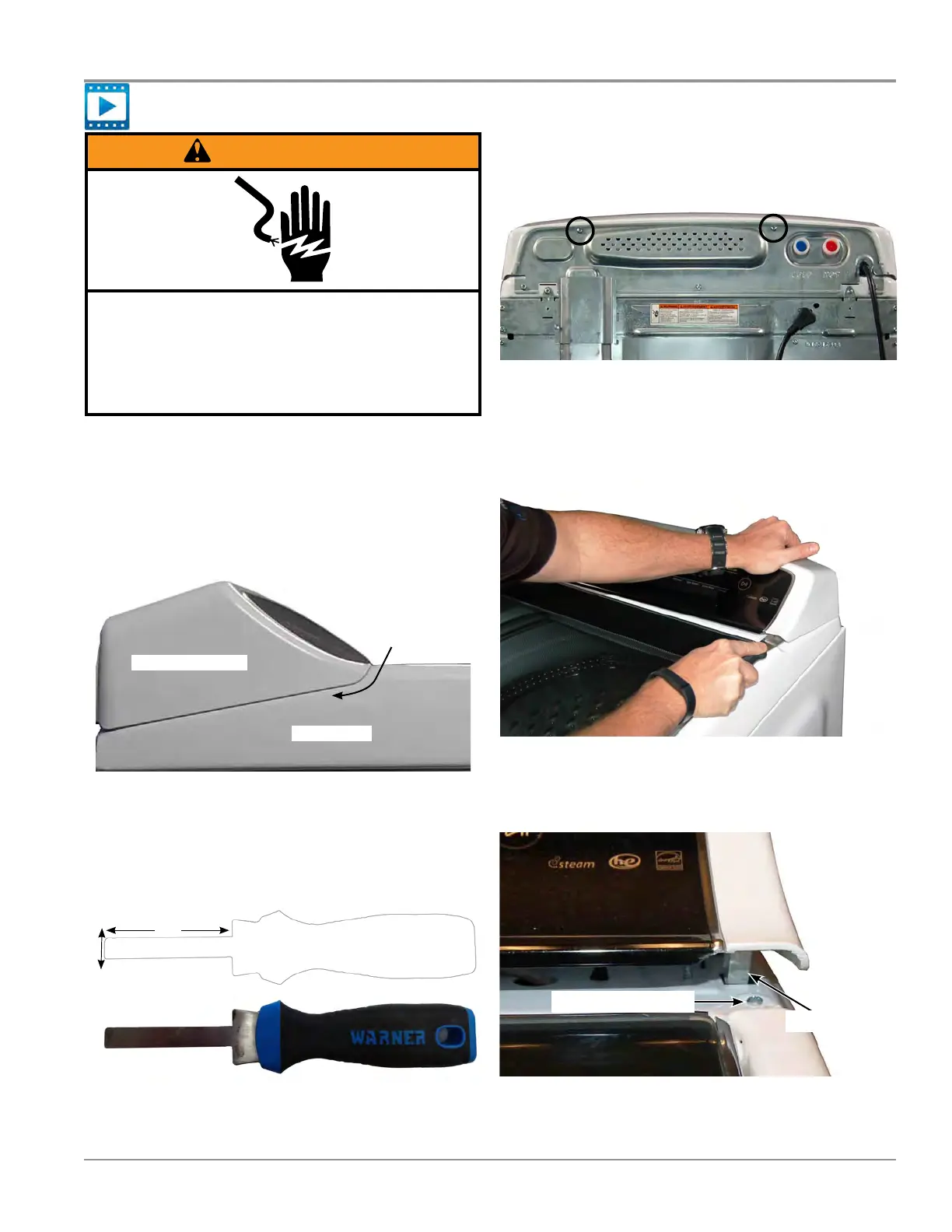

Removing the Console—Method A
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Removing the Console—Method A
The new sleek contoured design of the User Interface makes
access of the console a bit of a challenge. Since the console is
recessed into the top panel (see Figure 1), the usual method
of sliding a tool under the console to release the clips can be a
bit tricky.
Figure 1
Modify the Putty Knife
A puy knife can work, but it should be plasc and modied
as shown in Figure 2 so that it can be maneuvered around the
screw, which is placed directly in front of the release clips.
2¾
”
½
”
Figure 2
1. Unplug washer or disconnect power.
2. Turn o water supply to washer.
3. Remove two (2) 1/4” hex-head mounng screws from the
rear of the console as indicated in Figure 3.
Figure 3
4. Slide the puy knife down between the console assembly
and top panel. Use your free hand to push back on the
top of the console while you ex and maneuver the puy
knife up and around the screw. (See Figures 4 & 5).
Figure 4
5. Depress the console clip with the puy knife and li up on
the console to separate from top panel (see Figure 5). Tilt
the console forward for service.
Console Clip
Shock Mount Screw
Figure 5
New recessed
console design
Console Assembly
Top Panel
To Next Page
