TESTING
Whirlpool 2014 CABRIO
®
Direct Drive Washer
n
6-13
For Service Technician Use Only
TEST #6: Water Level
This test checks the water level sensing components.
NOTE: Usually, if the pressure transducer malfuncons, the
washer will generate a long ll, or long drain error.
1. Check the funconality of the pressure transducer by
running a small load cycle. The valves should turn o
automacally aer sensing the correct water level in
the tub. The following steps assume that this step was
unsuccessful.
2. Drain the tub unl all water has been removed.
3. Unplug washer or disconnect power.
4. Remove console to access main control.

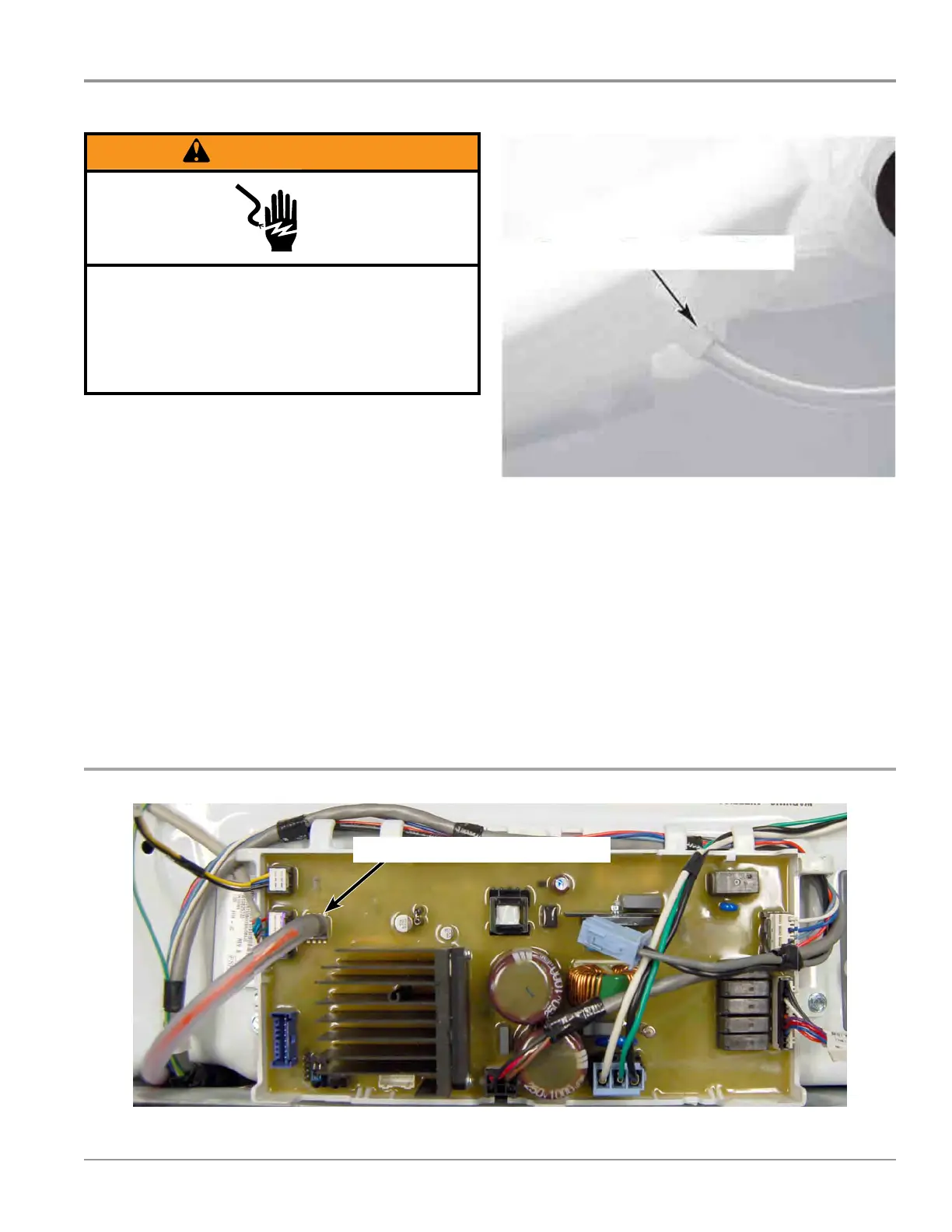

5. Check hose connecon between the pressure transducer
on the main control (Figure 1) and the pressure dome
aached to the tub (Figure 2).
Figure 2
6. Check to ensure hose is routed correctly in the lower
cabinet and not pinched or crimped inside the console or
by the back panel.
7. Verify there is no water, suds, or debris in the hose or
dome. Disconnect hose from main control and blow into
hose to clear water, suds, or debris.
8. Check hose for leaks. Replace if needed.
9. If the preceding steps did not correct the problem, replace
main control and perform Service Diagnoscs. Run ll
cycle to test and verify repair.
Figure 1
Pressure Hose to Pressure Dome
Pressure Hose to Pressure Transducer
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
