Whirlpool Cabrio WTW8500DC User Manual

4-4
n
Whirlpool 2014 CABRIO
®
Direct Drive Washer
COMPONENT ACCESS

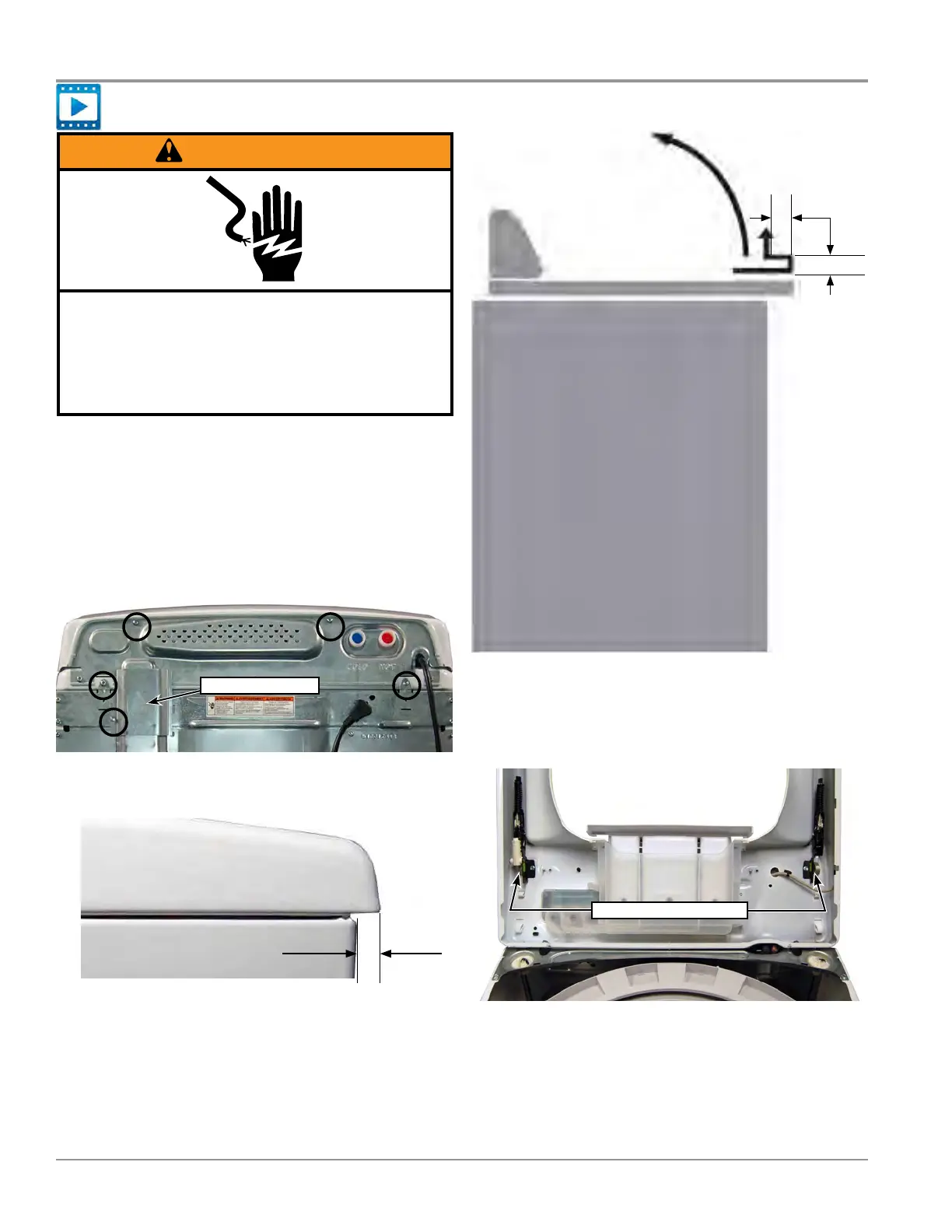

Removing the Console—Method B
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Removing the Console—Method B
1. Unplug washer or disconnect power.
2. Turn o water supply to washer.
3. Tape lid down.
4. Remove ve (5) 1/4” hex-head mounng screws from
the rear of the console as indicated in Figure 1. Remove
harness cover and set aside.
Figure 1
5. Slide top forward about 1/2” (see Figure 2).
Figure 2
6. Raise the top about 1/4”. Then, while sll keeping it lied,
push the top back about 1/4 “ (see Figure 3).
½
”
Figure 3
7. Tilt the top up on the rear hinges.
8. Using a at blade screwdriver, depress the console clips
(idened by the two arrows) to release console from top
panel (see Figure 4).
Figure 4
¼
”
¼
”
Harness Cover
Release Console Clips

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
