TESTING
Whirlpool 2014 CABRIO
®
Direct Drive Washer
n
6-7
For Service Technician Use Only

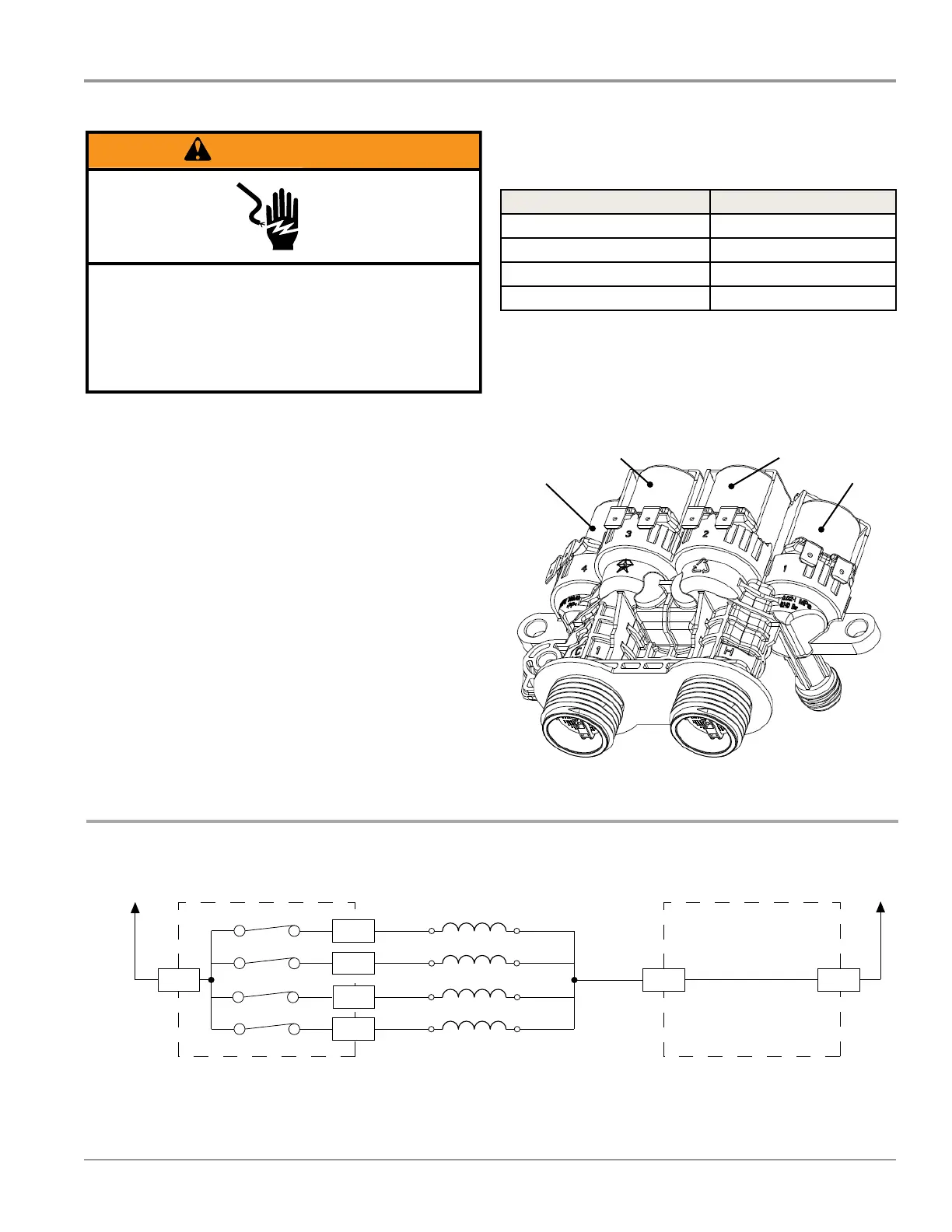

TEST #2 Valves
This test checks the electrical connecons to the valves, and
the valves themselves.
1. Check the relays and electrical connecons to the valves
by performing the Cold, Hot, Oxi (not on all models), and
Fabric Soener Service Test Load Control on page 5-5.
Each test acvates and deacvates the selected valve. The
following steps assume one (or more) valve(s) did not turn
on.
2. For the valve(s) in queson check the individual solenoid
valves:
a. Unplug washer or disconnect power.
b. Remove console to access main control.
c. Remove connector J2 from main control. Refer to main
control diagram on page 6-6.
d. Check harness connecon to solenoid valves.
3. Check resistance of the valve coils across the following J2
connector pinouts:
Valve Pinout
Fabric Soener J2, 4 & 7
OXI (not on all models) J2, 4 & 8
Hot J2, 4 & 9
Cold J2, 4 & 10
Resistance should be 790–840 Ω.
¾ If resistance readings are tens of ohms outside of
range, replace the valve assembly.
¾ If resistance readings are within range, replace main
control and perform Service Diagnoscs to verify
repair.
L1
MAIN BOARD
N
790 - 840 
WATER INLET VALVES
SOFTENER (4)
VALVES
J12-1
J2-8
BK
R
V
OR
BU
W
W
MAIN BOARD
J12-3
J2-7
J2-10
J2-9
J2-4
BLEACH/OXI (1)
MAIN HOT (2)
MAIN COLD (3)
W
W
W
W
Figure 1
Figure 2
HotCold
Softener (4)
Main Cold (3) Main Hot (2)
Bleach/Oxi (1)
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
