Whirlpool Cabrio WTW8500DC User Manual

6-16
n
Whirlpool 2014 CABRIO
®
Direct Drive Washer
TESTING
For Service Technician Use Only
TEST #9: Heater Element
(on some models)
Perform the following checks to ensure the heater is
funconing properly.
1. Unplug washer or disconnect power.
2. Remove the heater terminal plasc cover.
3. Check the connecon to the water heater element.
4. Check the resistance of the heater element. If the heater
is open (innite), replace the heater element and reinstall
the heater terminal plasc cover.
5. Visually inspect that the connector on the main control
(J5) that plugs into the lower harness is installed correctly
(see wiring diagram, page 6-4).
¾ If visual check passes, go to step 7.
¾ If visual check fails, reconnect cable.
6. If connecons are correct, replace the main control.

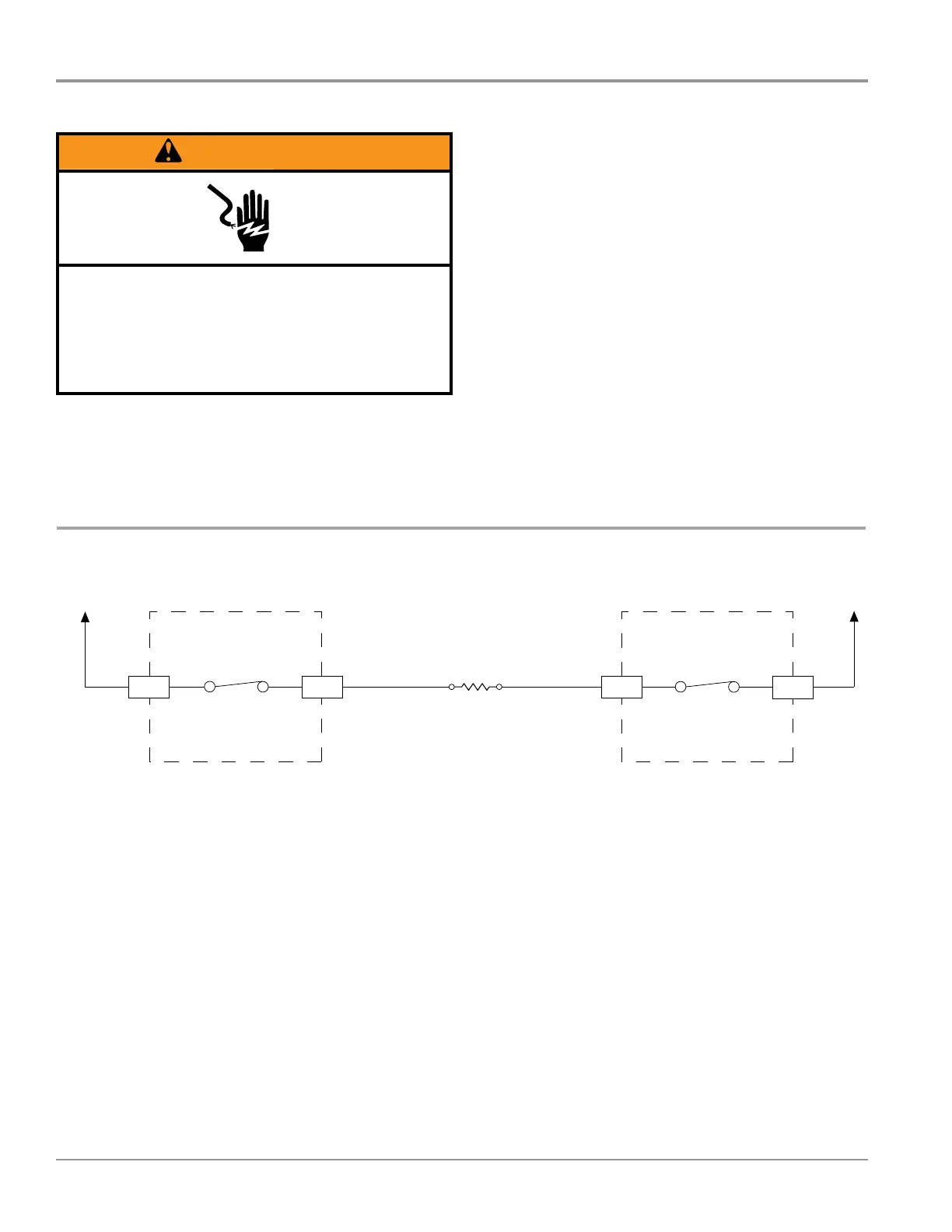

Figure 1
MAIN BOARD
HEATER ELEMENT
MAIN BOARD
BK GY
HEATER ELEMENT
L1
BK
J12-1
N
J12-3
W
J5-2
J5-1
L1 - HEATER RELAY N - HEATER RELAY
H
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
