Whirlpool Cabrio WTW8500DC User Manual

4-16
n
Whirlpool 2014 CABRIO
®
Direct Drive Washer
COMPONENT ACCESS

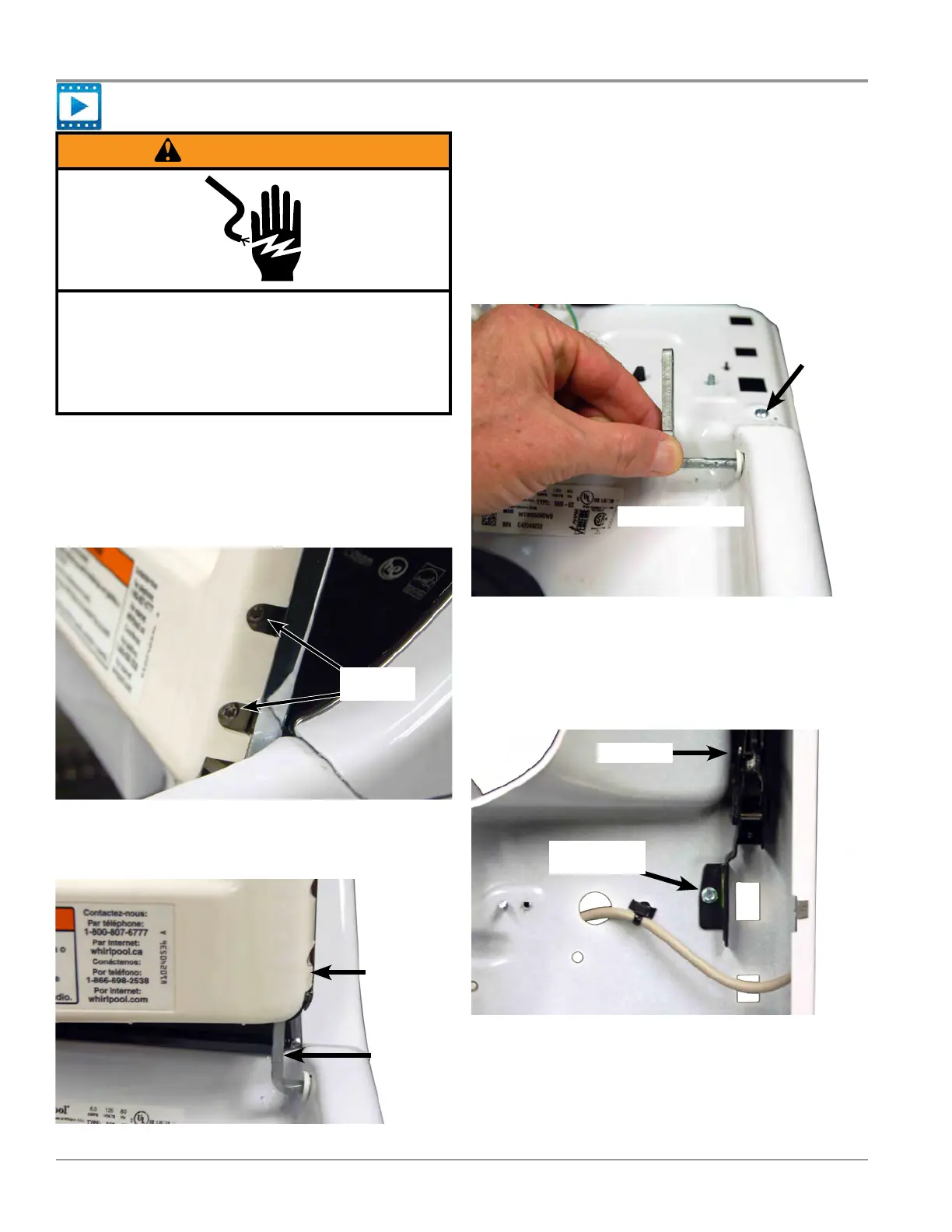

To Remove the Lid
1. Unplug washer or disconnect power.
2. Raise the lid and remove the two hinge pins screws from
both sides using a T15 TORX driver (see Figure 1).
Lid Hinge
Pin Screws
Figure 1
3. Slide the lid o the hinge pins, and remove lid from the
washer (see Figure 2).
Washer Lid
Hinge Pin
Figure 2
Removing the Lid and a Hinge
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
To Remove a Hinge
1. Perform the steps under “To Remove the Lid.”
2. Pull the hinge pin out of the hinge you are removing (see
Figure 3).
3. If not already, remove the console per direcons earlier in
this secon on pages 4-3 and 4-4.
4. Remove the Phillips screw from the hinge you are
removing (see Figure 3).
Pull Hinge Pin Out
Top Hinge
Screw
Figure 3
5. Perform the procedures on page 4-8, “Liing the Top
Panel” prior to performing the following step.
6. Remove the 1/4” hex-head screw from the hinge
mounng bracket, and remove the hinge from the cabinet
top (see Figure 4).
Lid Hinge
Hinge Bracket
Screw
Figure 4

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
