Whirlpool Cabrio WTW8500DC User Manual

INSTALLATION
Whirlpool 2014 CABRIO
®
Direct Drive Washer
n
3-5
5
Remove tape from washer lid, open lid and remove cardboard
packing tray from tub. Be sure to remove all parts from tray.
NOTE: Keep tray in case you need to move washer later.
Firmly grasp power cord plug and pull to free from rear panel.
Gently place power cord over console to allow free access
to back of washer.
CONNECT DRAIN HOSE
Place hose into standpipe (shown in picture) or over side of
laundry tub.
IMPORTANT: 4.5" (114 mm) of drain hose should be inside
standpipe; do not force excess hose into standpipe or lay on
bottom of laundry tub. Drain hose form must be used.

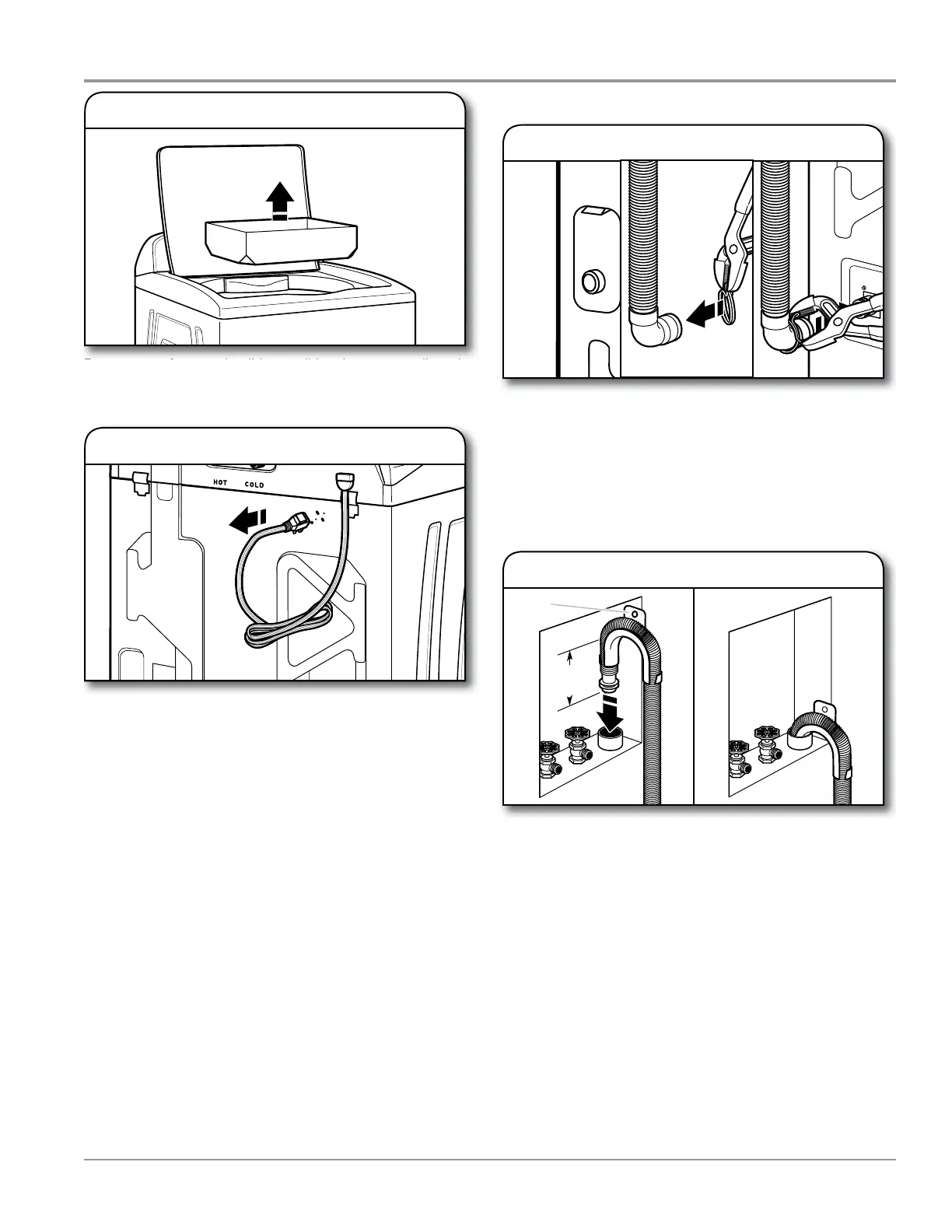

R f h lid lid d db d
3.
Remove packing tray from tub
4. Free power cord
6. Place drain hose in standpipe
4.5"
(114 mm)
Drain
hose form
If clamp is not already in place on elbow end of drain hose,
slide it over end as shown. Squeeze clamp with pliers and
slide black elbow end of drain hose onto black drain port
and secure with clamp.
For a laundry tub or standpipe drain, go to step 6.
For a oor drain, remove the preinstalled drain hose form as
shown in Step 7. You may need additional parts with separate
directions. See “Tools and Parts”.
5. Attach drain hose to drain port

Whirlpool Cabrio WTW8500DC Specifications

General

Style	Top-Loading
Color	Chrome Shadow
Washer Capacity	5.3 cu ft
Dryer Capactity	-
Max Spin Speed	850 RPM
Spin Speeds	2
Spin Class	D
Number of Cycles	26
Cycle Selections	Drain & Spin
Wash	Towels
Options	Clean Water
No spin and No heat	Extra Rinse
Hours	Delay Wash
Noise level	-
Temperature Selections	-
Cold)	Eco Warm
Internal Heater	yes
Delay Start / End	yes
Cycle Signal	yes
Steam	yes
Dispenser	single load
Energy Class	-
Annual Energy Consumption	196 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	15 A
Temperature Settings	5
Soil Levels	light, medium, normal, heavy
Smart Home	no

Weight and Dimensions

Depth	27-7/8 in
Height	42-1/8 in
Width	27-5/8 in
Net Weight	160 lb
