AC Wiring
976-0043-01-02 3–29

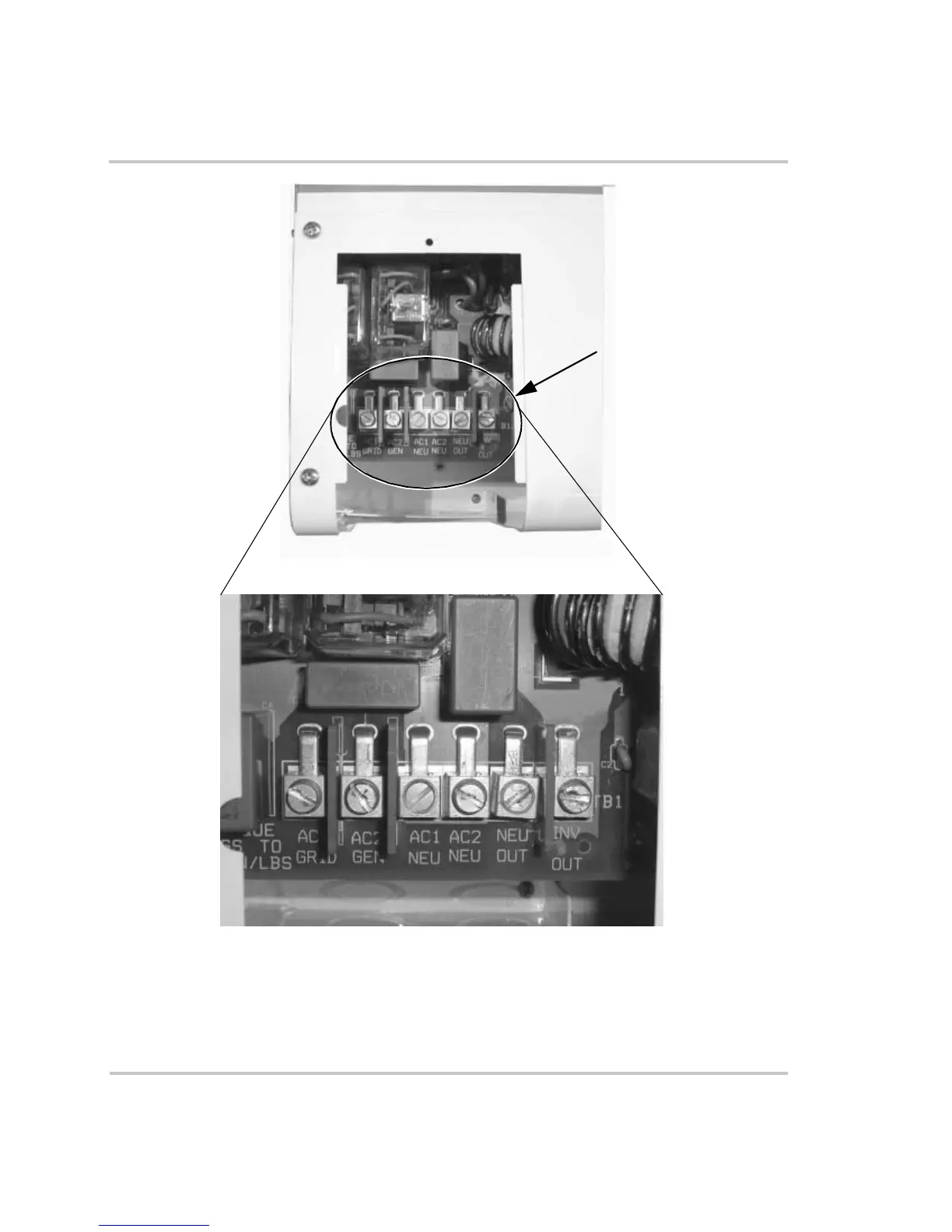

Figure 3-16
AC Input/Output Wiring Terminals
AC Terminal Block
AC Terminal Block Enlargement
