Display contrast
To change the display contrast, use a small, flat-blade screwdriver in the
slot provided to make the adjustment.
Push-buttons
Eight push-buttons enable access to internal software to program user-
specific parameters and to monitor the system. These push-buttons access
the User Menu, Basic Setup Menu, and the Advanced Setup Menu. One
push-button is available for resetting factory defaults.
ON/OFF Menu Buttons
These push-buttons directly access either the Inverter User Menu or the
Generator User Menu.
• INV ON/OFF (Red) Button - Pressing the red INV ON/OFF button
directly accesses the menu item 01A Inverter.
• GEN ON/OFF (Green) Button - Pressing the green GEN ON/OFF
button directly accesses menu item 02A Generator.

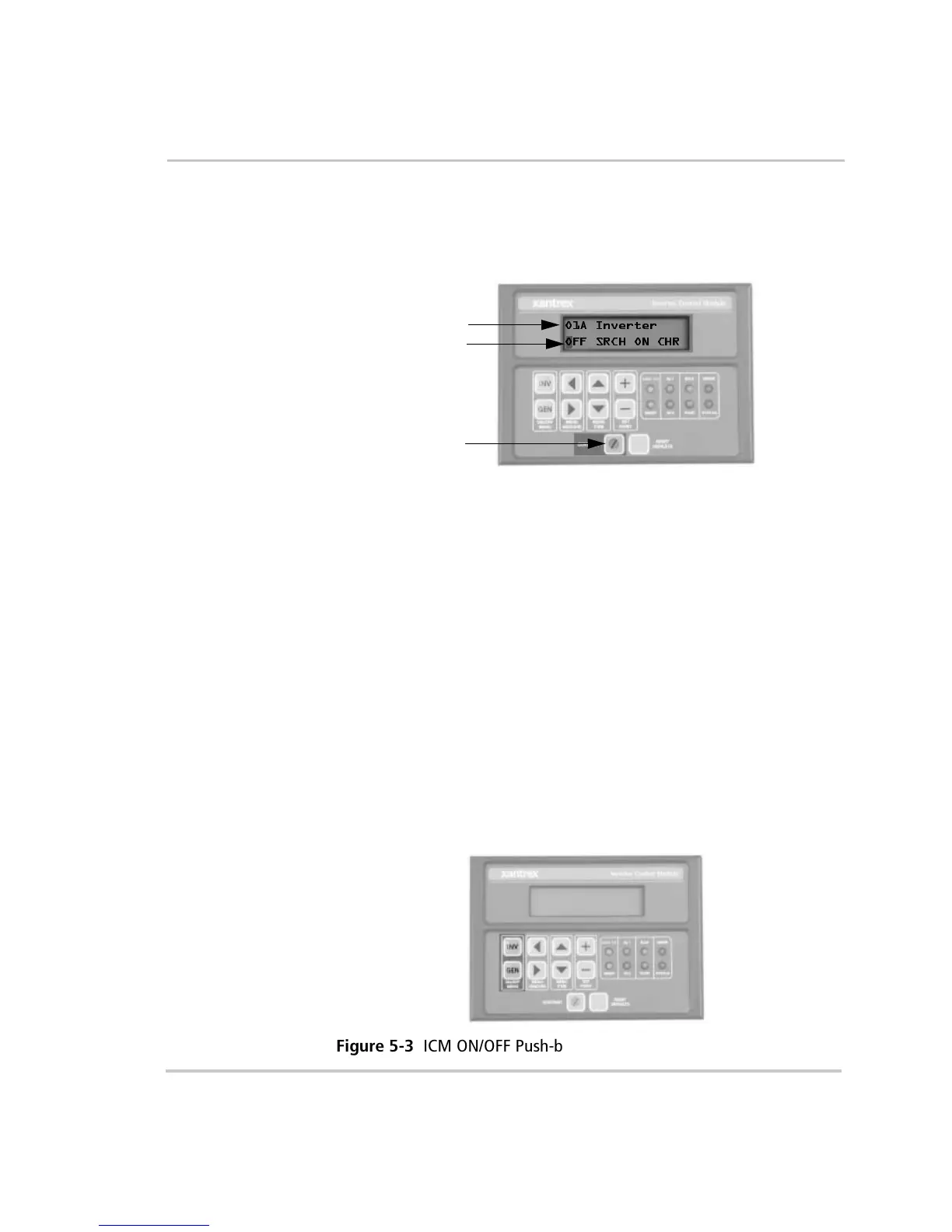

Figure 5-2
ICM Display and Contrast Adjustment
LCD Display
Cursor
Contrast
Adjustment
O1A Inverter
OFF SRCH ON CHR
Figure 5-3
ICM ON/OFF Push-buttons
To Next Page
