Menu Item Descriptions
976-0043-01-02 7–33

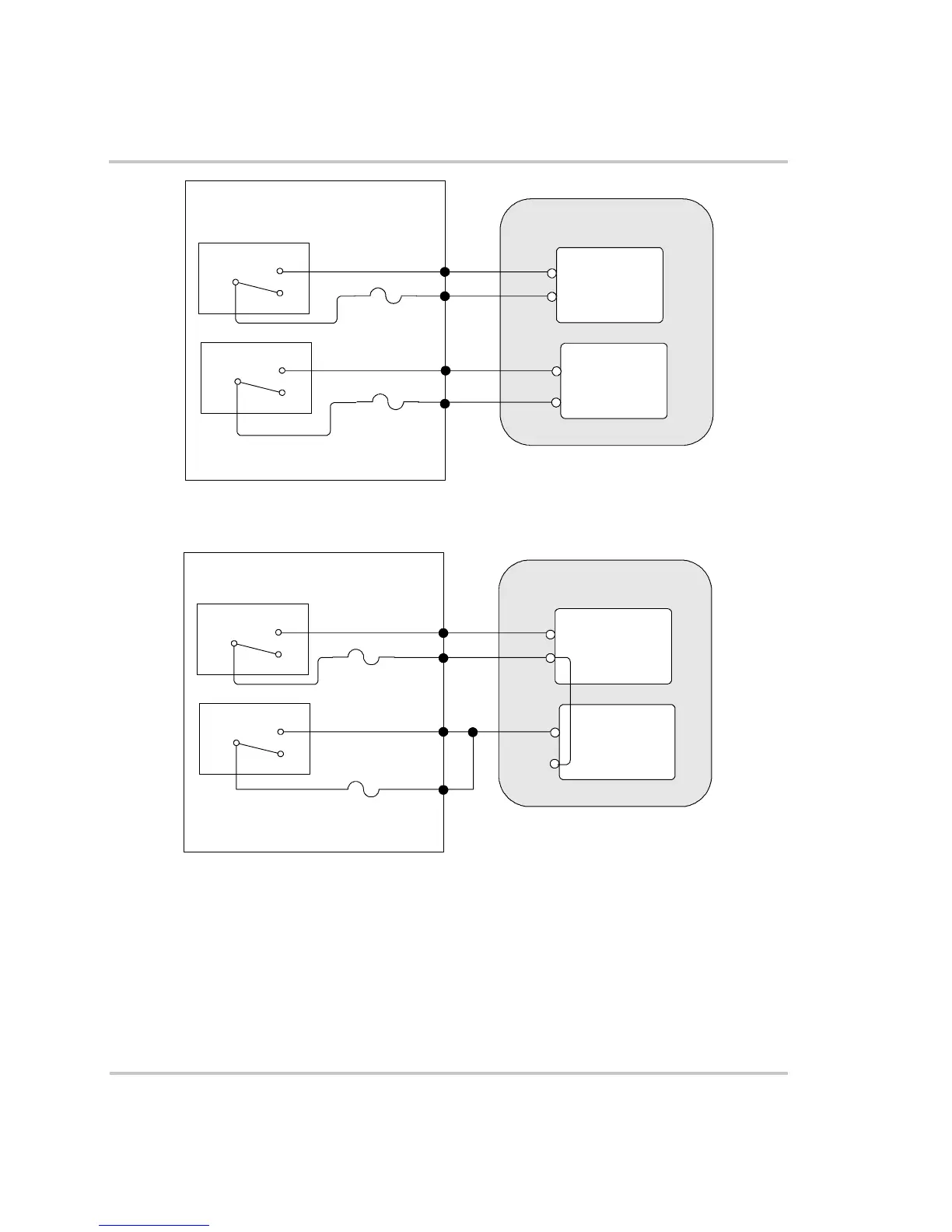

Figure 7-7
Wiring examples of Honda™ and Onan™ Generators
GENERATOR START MODULE
RY7
STOP SWITCH
CONTACTS
ONAN TYPE GENERATOR
COM
N.O.
N.C.
RY8
COM
N.O.
N.C.
START
SWITCH
CONTACTS
5 AMP FUSE
5 AMP FUSE
RY7
RUN/STOP
SWITCH
CONTACTS
HONDA TYPE GENERATOR
COM
N.O.
N.C.
RY8
COM
N.O.
N.C.
START
SWITCH
CONTACTS
5 AMP FUSE
5 AMP FUSE
