Operational Status Indicators
976-0043-01-02 8–3
Operational Status Indicators
The Sine Wave Plus uses a combination of LED indicators and User
Menu Headings (2-7) to display system status. Use both of these features
to assess operational status.
LED Indicators
Eight, colored status LEDs indicate the various operating conditions of
the inverter. Unless otherwise indicated, the LEDs will be ON solid and
not flashing or blinking. The LEDs also are grouped by function.
LEDs provide system status indication for the following areas.
• Inverter Operation Status: INVERT or GRID TIE
(Grid Tie feature is not available at this time.)
• AC Input Status (AC1 or AC2)
• Charging Status (BULK or FLOAT)
• Operational Conditions (ERROR or STATUS)

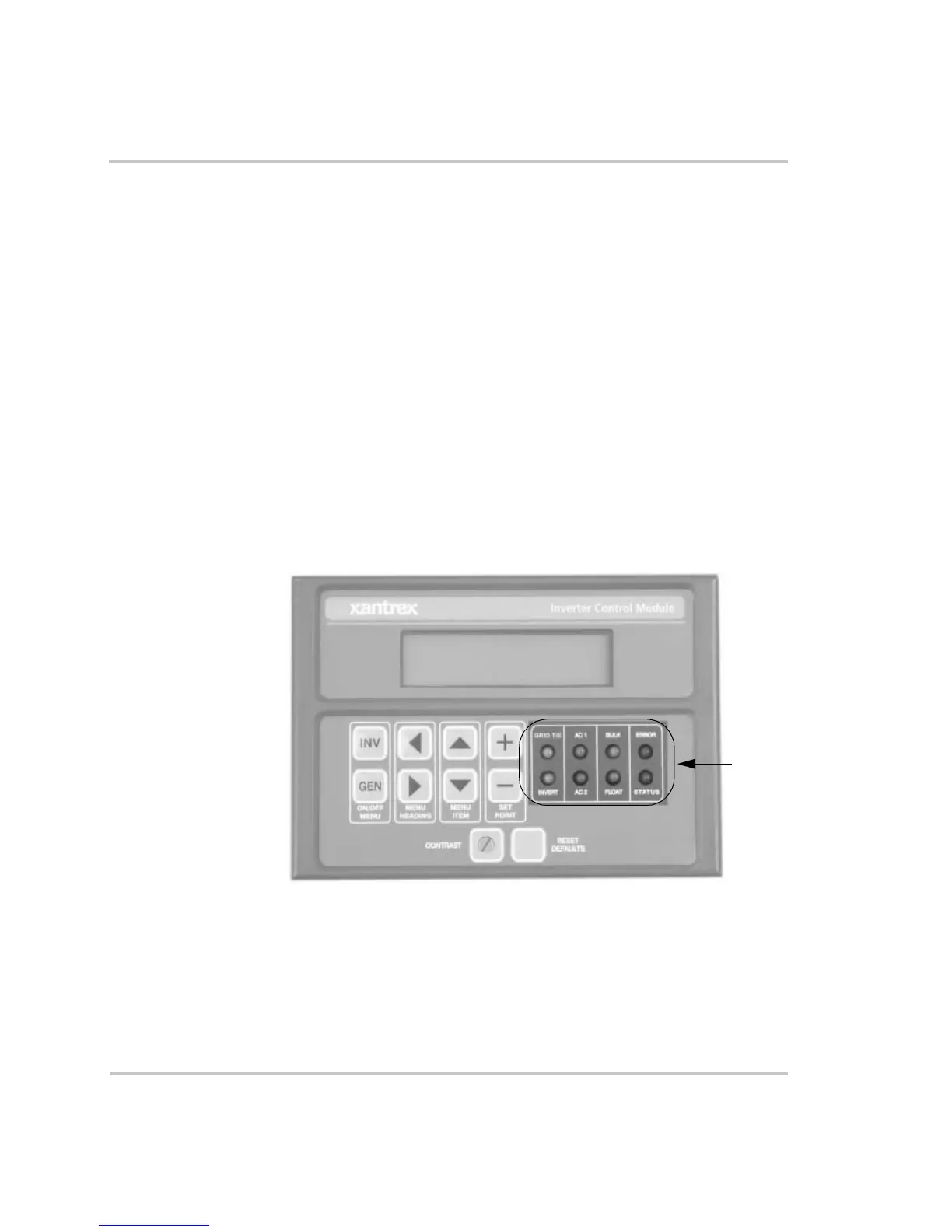

Figure 8-1
LED Indicators
LEDs
