User Menu Description
976-0043-01-02 8–31

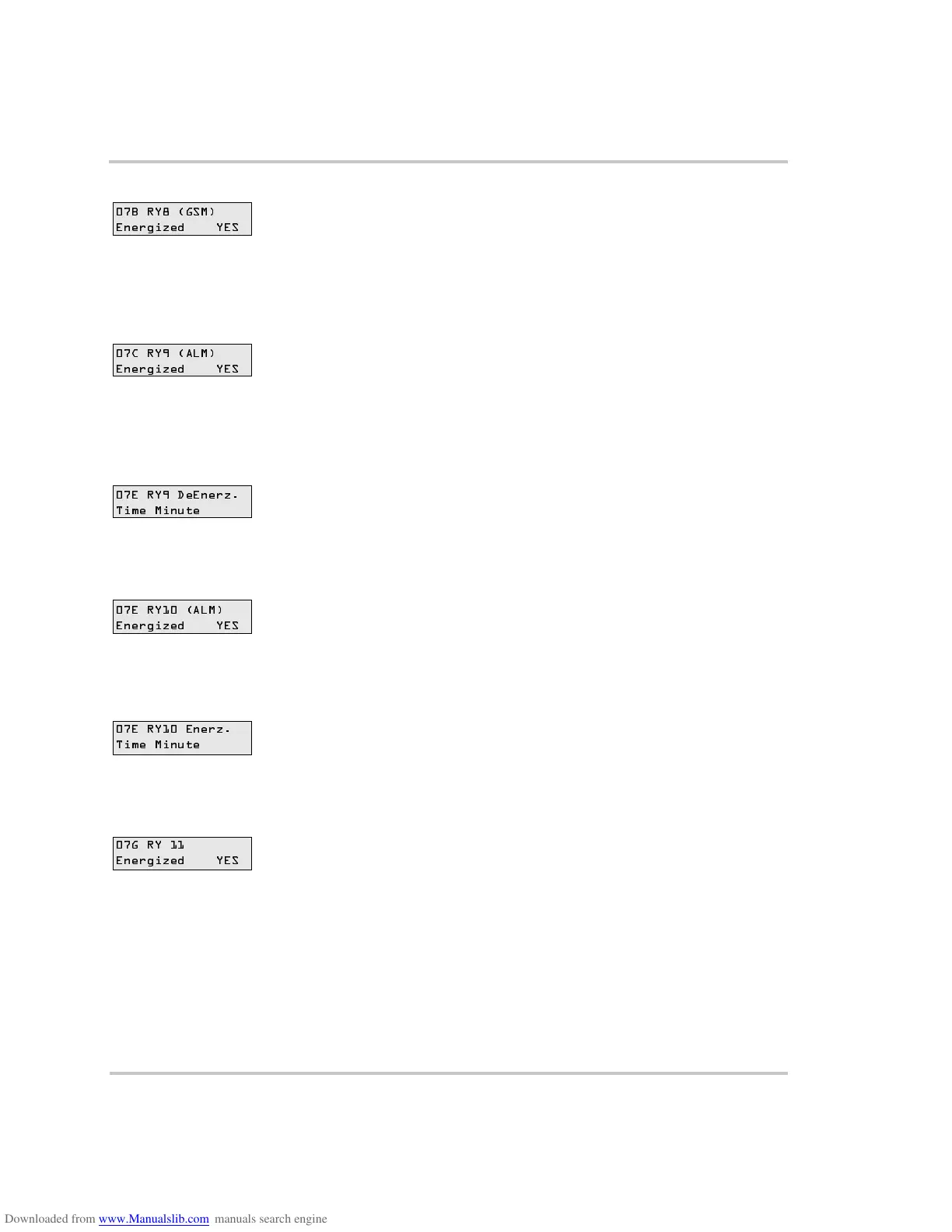

07B RY8 (GSM) Energized
If “Yes” is displayed, the inverter has sent out a command to energize the
relay (between the N.O. to COM connections) in the GSM.
This display can be used for troubleshooting purposes by helping to
isolate the cause of a generator problem.
07C RY9 (ALM) Energized
If “Yes” is displayed, the inverter has sent out a command to energize the
RY9 relay (between the N.O. to COM connections) in the ALM.
This display can be used for troubleshooting purposes by helping to
isolate the cause of an ALM problem.
07D RY9 DeEngz. Time Minute
This menu item displays the delay time period in minutes at which the DC
voltage level has been displayed at or below the level set in menu item
23B RY9 DeEnergized.
07E RY10 (ALM) Energized
If “Yes” is displayed, the inverter has sent out a command to energize the
RY10 relay (between the N.O. to COM connections) in the ALM.
This display can be used for troubleshooting purposes.
07F RY10 Engz. Time Minute
This menu item displays the delay time period in minutes at which the DC
voltage level has been at or below the level set in menu 23E RY10 Vdc
DeEnergized.
07G RY11 Energized
If “Yes” is displayed, the inverter has sent out a command to energize the
RY11 relay (between the N.O. to COM connections) in the GSM or ALM.
This display can be used for troubleshooting purposes.
This display applies to both the GSM and ALM
07B RY8 (GSM)
Energized YES
07C RY9 (ALM)
Energized YES
07E RY9 DeEnerz.
Time Minute
07E RY10 (ALM)
Energized YES
07E RY10 Enerz.
Time Minute
07G RY 11
Energized YES
