Emergency Power Off Switches
G–4 976-0043-01-02
the building at a readily accessible location. The shunt trip switch,
when installed should be between six (6) feet and six feet seven
inches (6'7") above finish grade. A sign constructed of permanent
materials with no less than 1½" high letters designating "Shunt Trip -
Main Disconnect" shall be located on the exterior of the building or
structure, and approximately one foot (1') above and one foot (1') to
one side of the shunt trip mechanism. Service disconnecting means
shall not be installed in bathrooms.
How to use the EPO Port for an EPO Switch

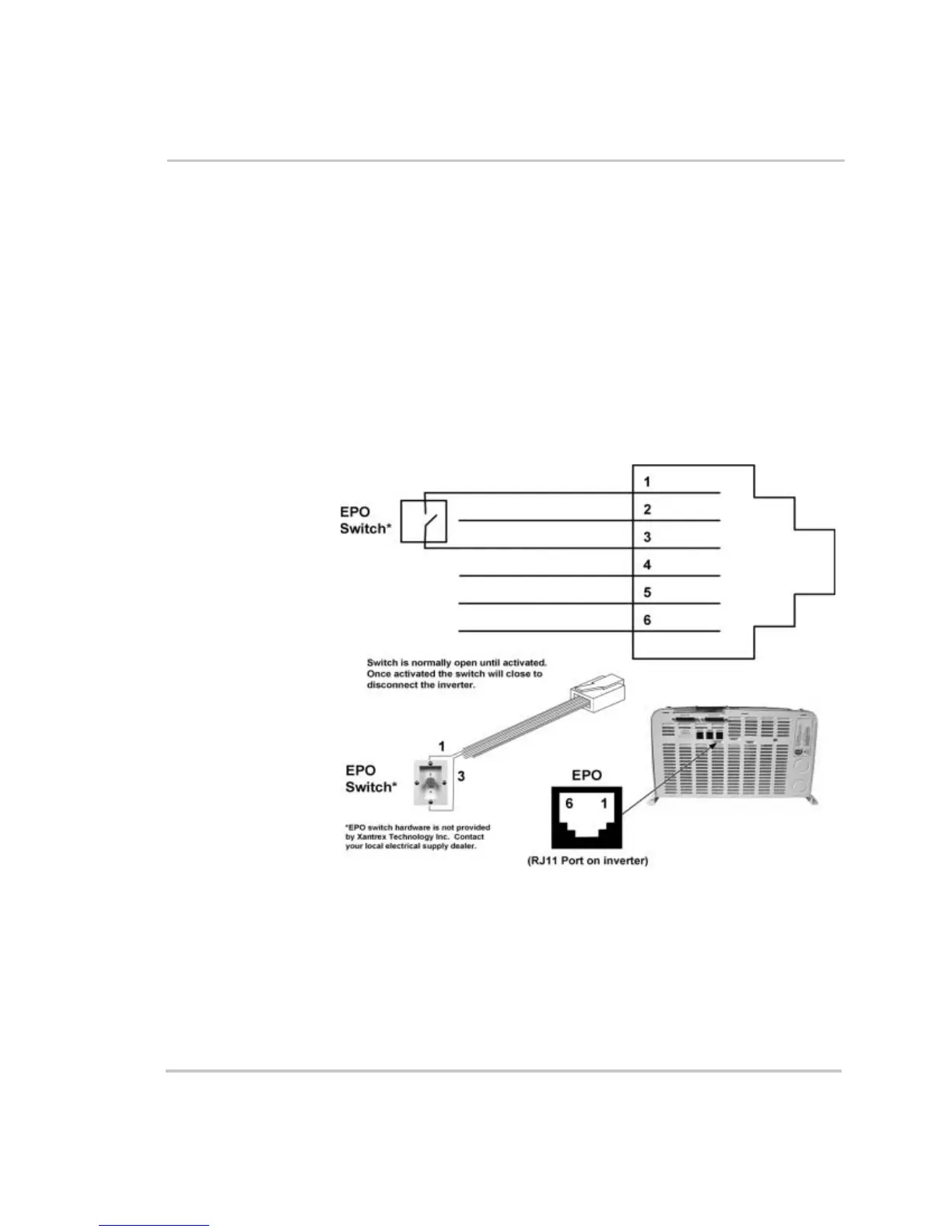

The following diagram shows how to modify a 6-conductor cable to
connect the Sine Wave Plus for an Emergency Power Off Switch.
Figure G-2
Modifying a 6-conductor Cable to connect to the EPO Port
