AC Wiring
976-0043-01-02 3–37
b) from the neutral in the generator disconnect to the inverter
NEUTRAL 2 terminal.
3. Connect HOT (black) wires:
a) from the generator GEN HOT OUT terminal to the circuit
breaker in the generator disconnect, and
b) from the circuit breaker in the generator disconnect to the inverter
AC2 GEN terminal.
4. Torque all inverter terminal block connections to 25 inch-pounds.

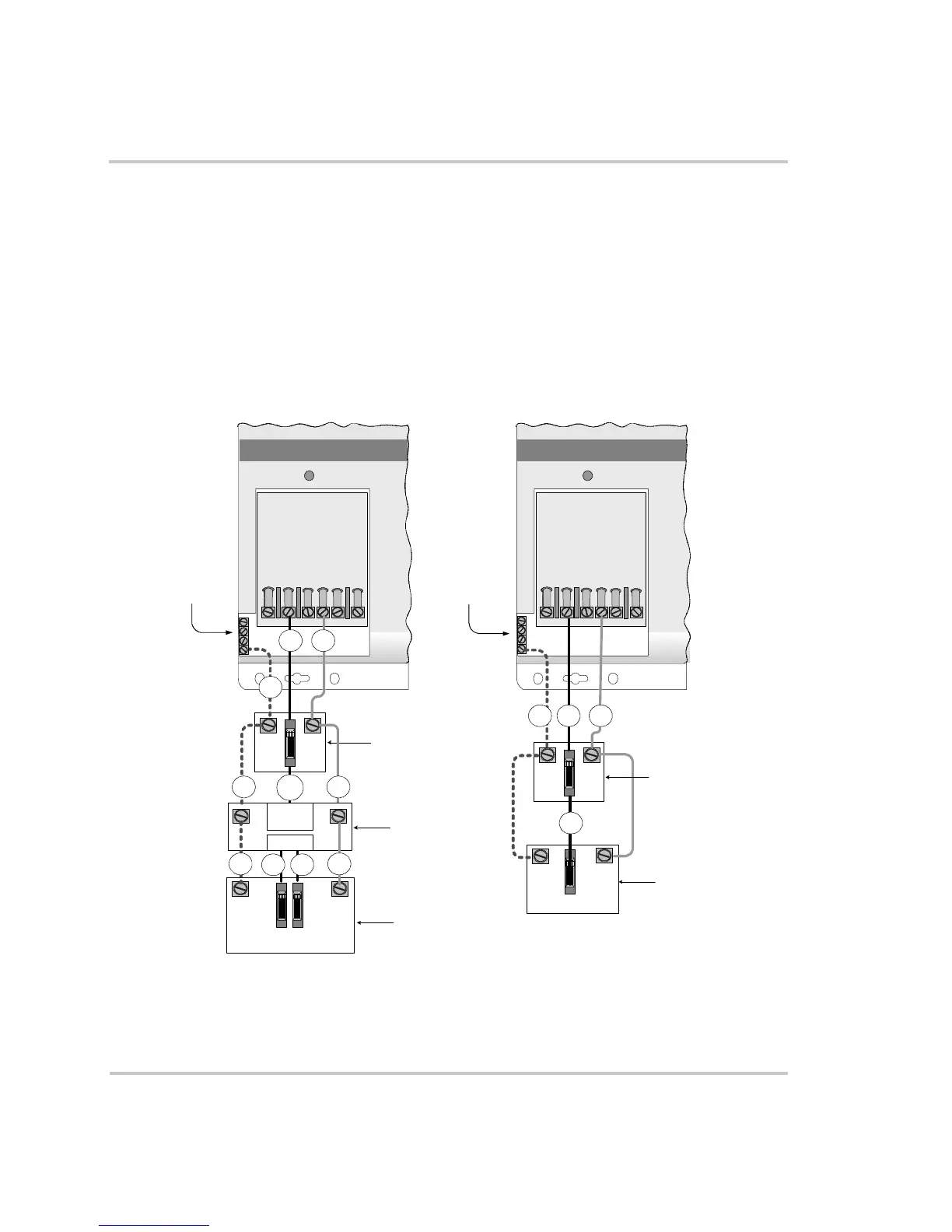

Figure 3-20
Generator Input Wiring to a Single Inverter
AC
(Optional)
Generator connections using a
T240, a generator disconnect and
a 120/240 Vac Generator
Generator connections using a
generator disconnect and a
120 Vac Generator
To Next Page
