Xantrex SW Plus 2524 User Manual

Installation
3–40 976-0043-01-02
Installing the ISC-S Cable
To install the ISC-S cable on the inverters:
1. Connect one end of the ISC-S cable to the Stacking Port on one
inverter.
2. Connect the other end of the ISC-S cable to the Stacking Port on the
other inverter.
The following diagram is for connecting the cable to the inverters only.
For information on wiring dual, stacked inverter systems please refer to
the ISC-S Cable Owner’s Guide.
CAUTION: Equipment Damage
Damage can occur if the ISC-S cable is not properly installed. Do NOT use a
standard computer cable in place of the ISC-S cable.

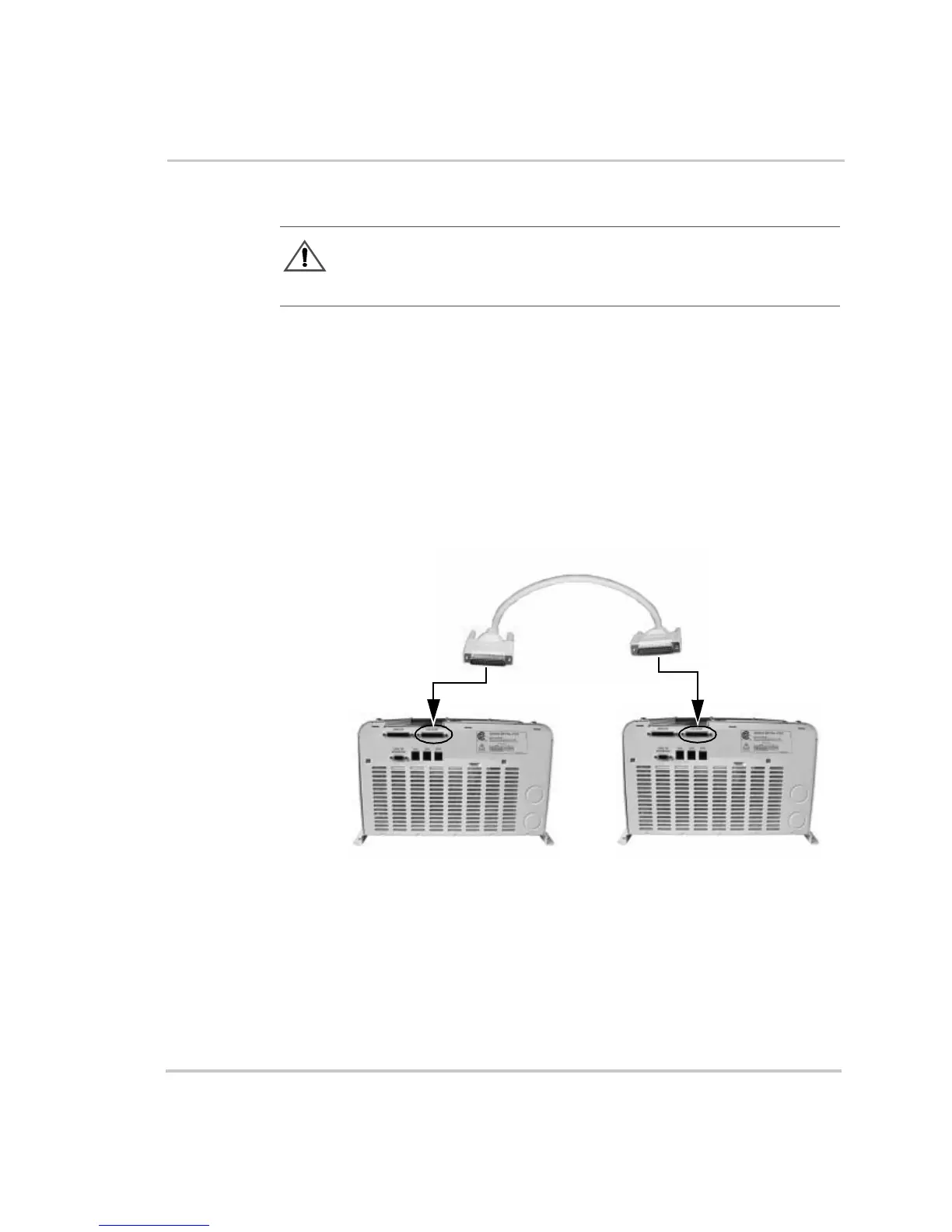

Figure 3-22 Series-stacked Inverters with ISC-S Cable
AC End of Inverter L1 AC End of Inverter L2
ISC-S Cable
Stacking
Port
Stacking
Port
