Additional/Optional Equipment Considerations
976-0043-01-02 2–23
DC Conduit Box (DCCB)
The DC Conduit Box (DCCB) connects to the DC side of the inverter and
accepts DC conduit runs.

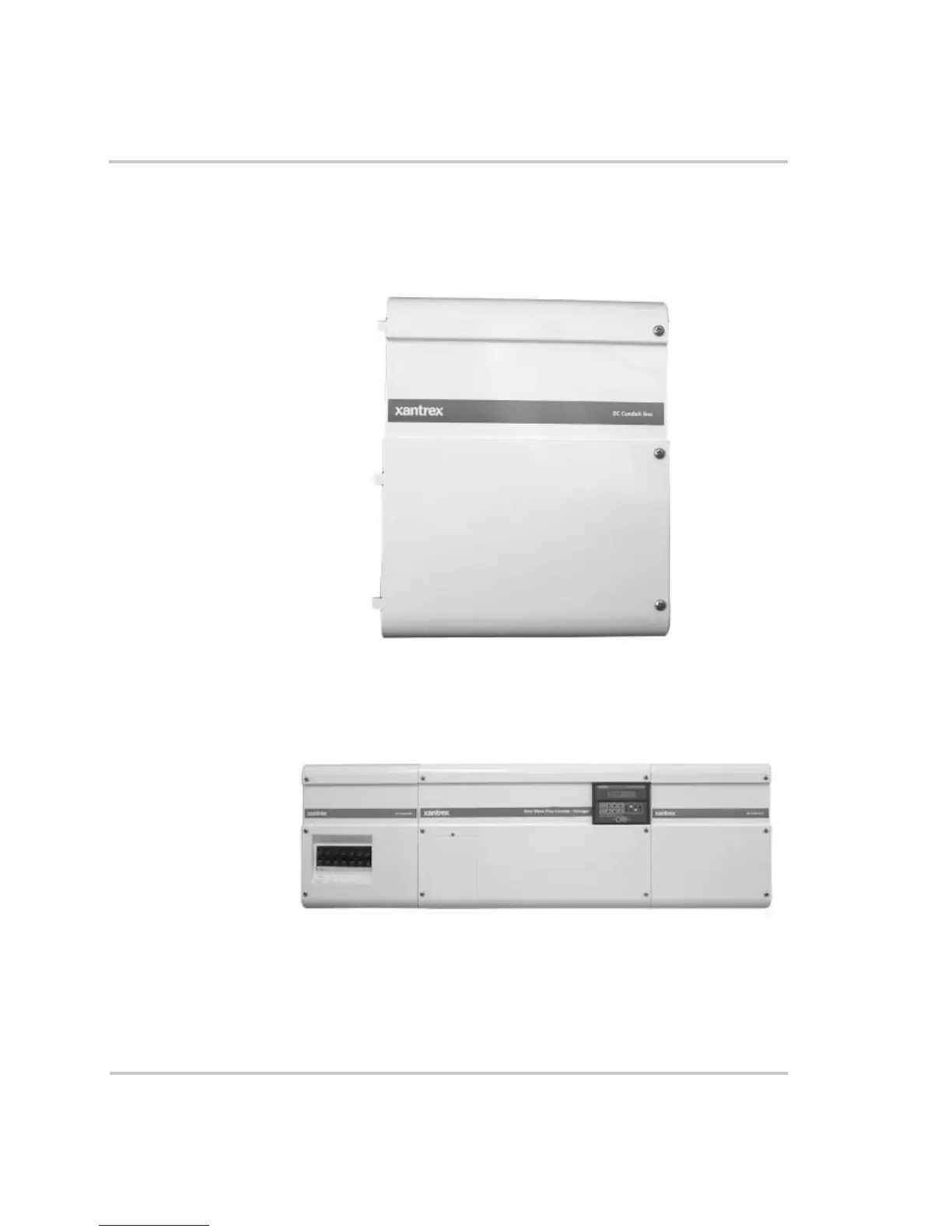

Figure 2-4
DC Conduit Box
Figure 2-5
Sine Wave Plus with AC and DC Conduit Boxes Installed
