Components
26
EMU26191

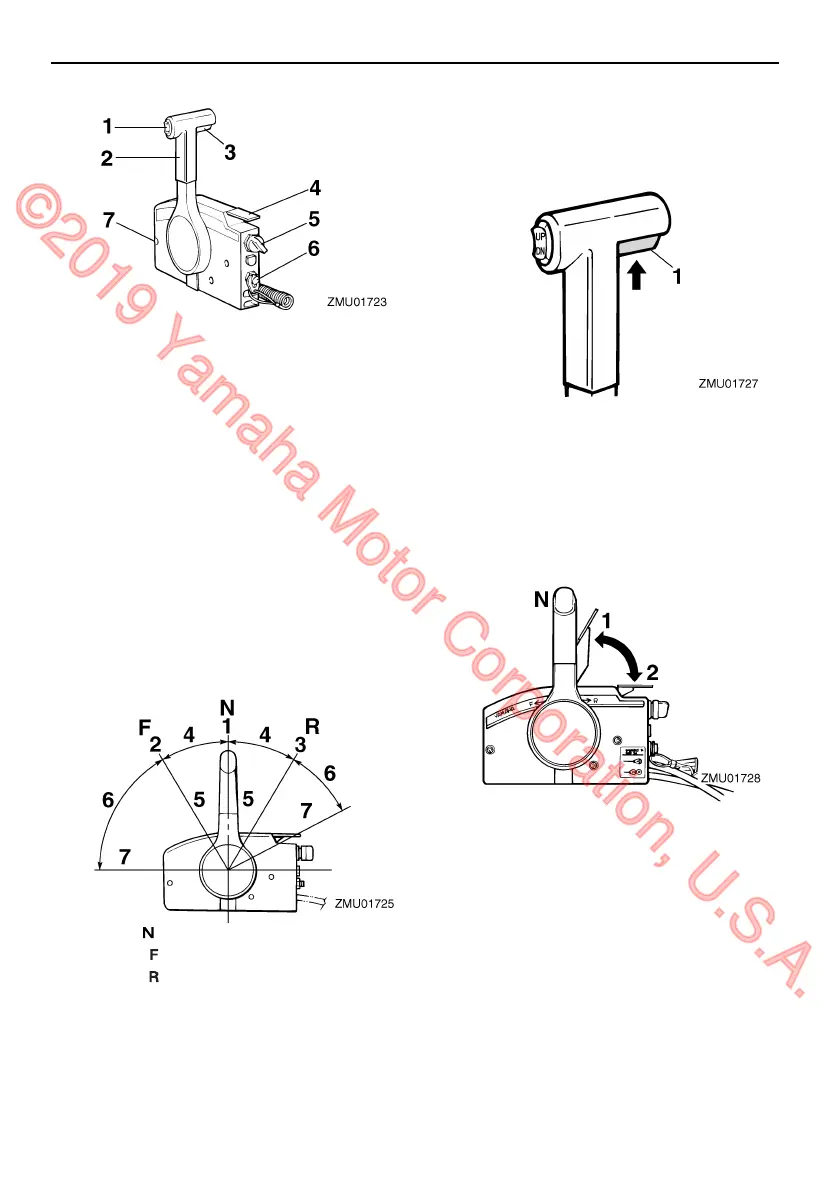

Remote control lever
Moving the lever forward from the neutral po-
sition engages forward gear. Pulling the lever
back from neutral engages reverse. The en-
gine will continue to run at idle until the lever
is moved about 35° (a detent can be felt).
Moving the lever farther opens the throttle,
and the engine will begin to accelerate.
EMU26202
Neutral interlock trigger
To shift out of neutral, first pull the neutral in-
terlock trigger up.
EMU26213
Neutral throttle lever
To open the throttle without shifting into ei-
ther forward or reverse, put the remote con-
trol lever in the neutral position and lift the
neutral throttle lever.
The neutral throttle lever will operate only
when the remote control lever is in neutral.
The remote control lever will operate only
when the neutral throttle lever is in the closed
position.
EMU25914
Tiller handle
To change direction, move the tiller handle to
the left or right as necessary.
1. Power trim and tilt switch
2. Remote control lever
3. Neutral interlock trigger
4. Neutral throttle lever
5. Main switch
6. Engine shut-off switch
7. Throttle friction adjuster
1. Neutral “ ”
2. Forward “ ”
3. Reverse “ ”
4. Shift
5. Fully closed
6. Throttle
7. Fully open
1. Neutral interlock trigger
1. Fully open
2. Fully closed
U6D63EE0.book Page 26 Friday, December 12, 2014 9:39 AM
