Instruments and indicators
34
EMU36016
Indicators
EMU36025
Low oil pressure-alert indicator
If oil pressure drops too low, this indicator will
light up. For further information, see page 45.
NOTICE
ECM00023
 Do not continue to run the engine if the
low oil pressure-alert indicator is on and
the engine oil level is lower. Serious en-
gine damage will occur.
 The low oil pressure-alert indicator does
not indicate the engine oil level. Use the
oil dipstick to check the remaining oil
quantity. For further information, see
page 51.
EMU36034
Overheat-alert indicator
If the engine temperature rises too high, this
indicator will light up. For further information
on reading the indicator, see page 45.
NOTICE
ECM00053
Do not continue to run the engine if the
overheat-alert indicator is on. Serious en-
gine damage will occur.
EMU31415
Digital tachometer
The tachometer shows the engine speed and
has the following functions.
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
TIP:
The water separator-alert indicator and en-
gine trouble-alert indicator on the digital ta-
chometer do not operate for this engine.

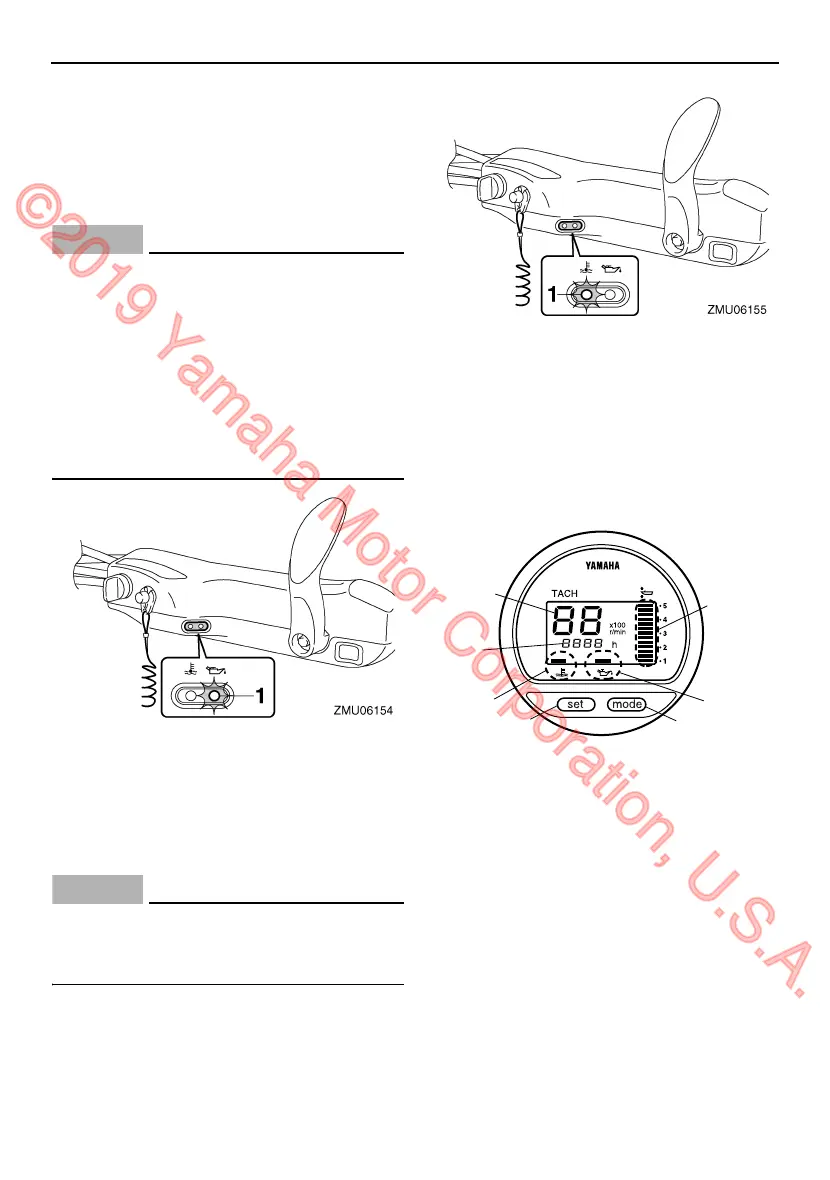

1. Low oil pressure-alert indicator
1. Overheat-alert indicator
1. Tachometer
2. Trim meter
3. Hour meter
4. Low oil pressure-alert indicator
5. Overheat-alert indicator
6. Set button
7. Mode button
ZMU01840
1
5
2
4
3
6
7
