Yamaha F75 User Manual

Trouble Recovery
93
WARNING
EWM00632
Substituting an incorrect fuse or a piece of
wire could allow excessive current flow.
This could cause electric system damage
and a fire hazard.
Consult your Yamaha dealer if the new fuse
immediately blows again.
EMU29526
Power trim and tilt will not operate
If the engine cannot be tilted up or down with
the power trim and tilt because of a dis-
charged battery or a failure with the power
trim and tilt unit, the engine can be tilted man-
ually.
1. Loosen the manual valve screw by turn-
ing it counterclockwise until it stops.
2. Put the engine in the desired position,
then tighten the manual valve screw by
turning it clockwise.
EMU37581
Water separator-alert indicator blinks
while cruising
WARNING
EWM01501
Gasoline is highly flammable, and its va-
pors are flammable and explosive.

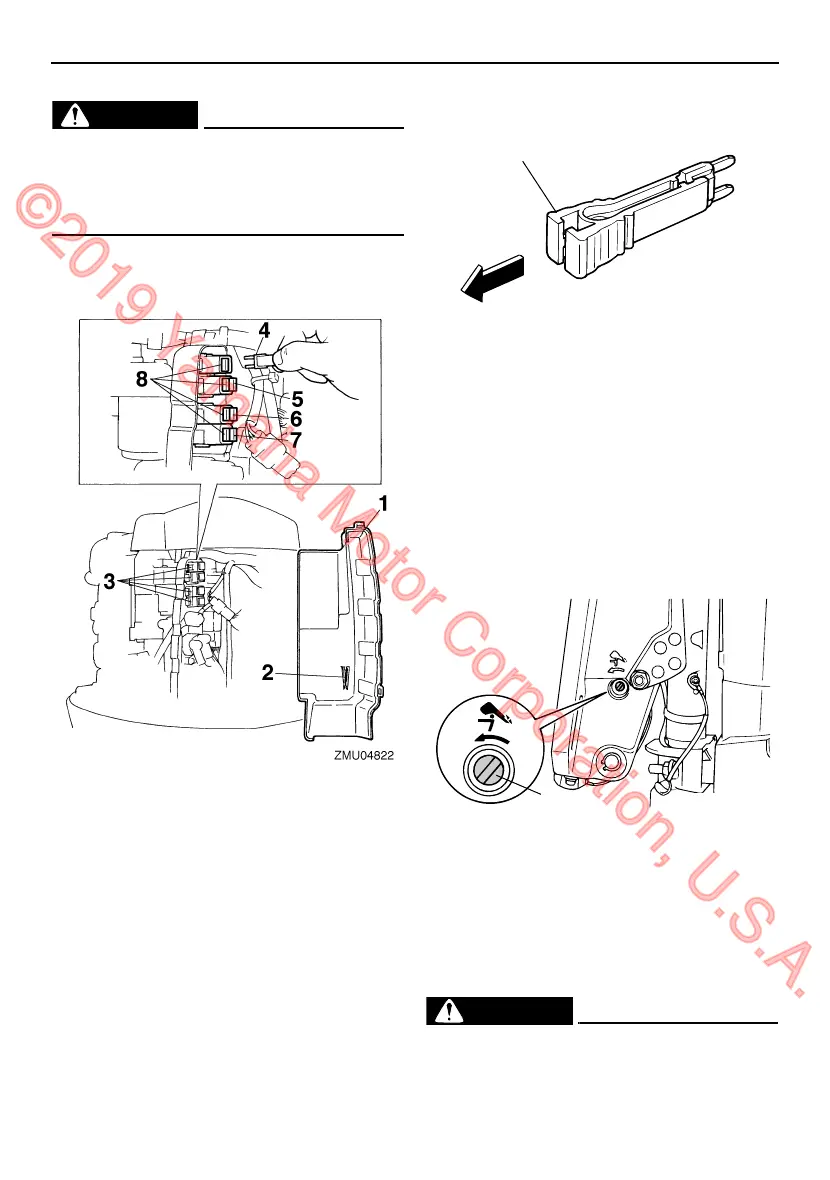

1. Electrical cover
2. Fuse puller
3. Fuse holder
4. Starter relay fuse (30 A)
5. Rectifier Regulator (Main) fuse (20 A)
6. Main switch / trim switch fuse (20 A)
7. Engine control unit / ignition coil / electric
fuel pump / fuel injector / ISC (idle speed
control) fuse (20 A)
8. Spare fuse (20 A, 30 A)
1. Fuse puller
1. Manual valve screw
1
ZMU04337
ZMU04249
1
U6D63EE0.book Page 93 Friday, December 12, 2014 9:39 AM
