Components
30
Do not apply lubricants such as grease to
the friction areas of the steering friction ad-
juster.
EMU26144

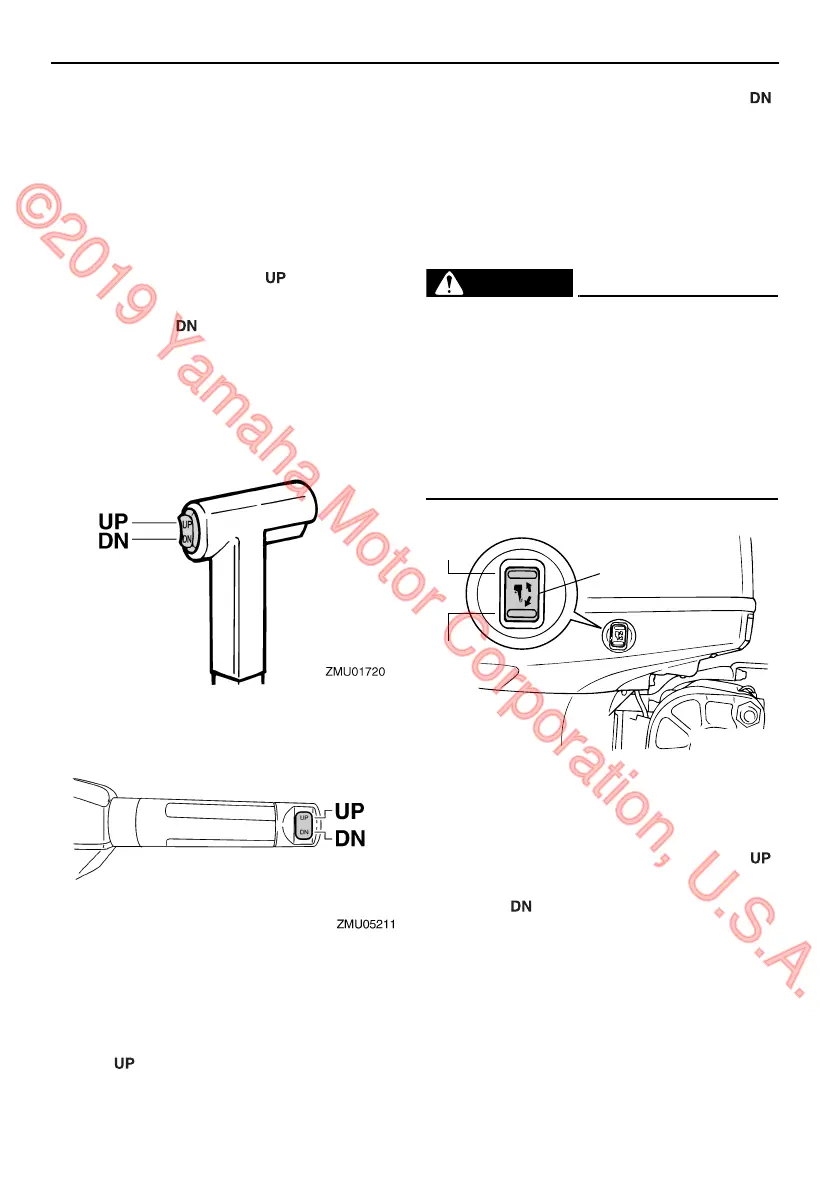

Power trim and tilt switch on remote
control or tiller handle
The power trim and tilt system adjusts the
outboard motor angle in relation to the tran-
som. Pressing the switch “ ” (up) trims the
outboard motor up, and then tilts it up. Press-
ing the switch “ ” (down) tilts the outboard
motor down and trims it down. When the
switch is released, the outboard motor will
stop in its current position.
For instructions on using the power trim and
tilt switch, see pages 65 and 67.
EMU26156
Power trim and tilt switch on bottom
cowling
The power trim and tilt switch is located on
the side of the bottom cowling. Pushing the
switch “ ” (up) trims the outboard motor up,
and then tilts it up. Pushing the switch “ ”
(down) tilts the outboard motor down and
trims it down. When the switch is released,
the outboard motor will stop in its current po-
sition.
For instructions on using the power trim and
tilt switch, see page 67.
EWM01032
Use the power trim and tilt switch located
on the bottom cowling only when the boat
is at a complete stop with the engine off.
Attempting to use this switch while the
boat is moving could increase the risk of
falling overboard and could distract the
operator, increasing the risk of collision
with another boat or an obstacle.
EMU30903
Variable trolling RPM switches
The trolling speed can be adjusted when the
outboard motor is trolling. Press the “ ”
switch to increase the trolling speed and
press the “ ” switch to decrease the trolling
speed.
1. Power trim and tilt switch
