Instruments and indicators
36
EMU26584
Overheat-alert indicator
If the engine temperature rises too high, the
alert indicator will start to blink. For further in-
formation on reading the indicator, see page
45.
ECM00053
Do not continue to run the engine if the
overheat-alert indicator is on. Serious en-
gine damage will occur.
EMU26603
Digital speedometer
This gauge shows the boat speed and other
information.
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
EMU36062
Speedometer
The speedometer displays km/h, mph, or
knots, according to operator preference. Se-
lect the desired units of measurement by set-
ting the selector switch on the back of the
gauge. See the illustration for settings.
EMU26714
Fuel gauge
Eight segments indicate the fuel level. When
all segments are showing, the fuel tank is full.

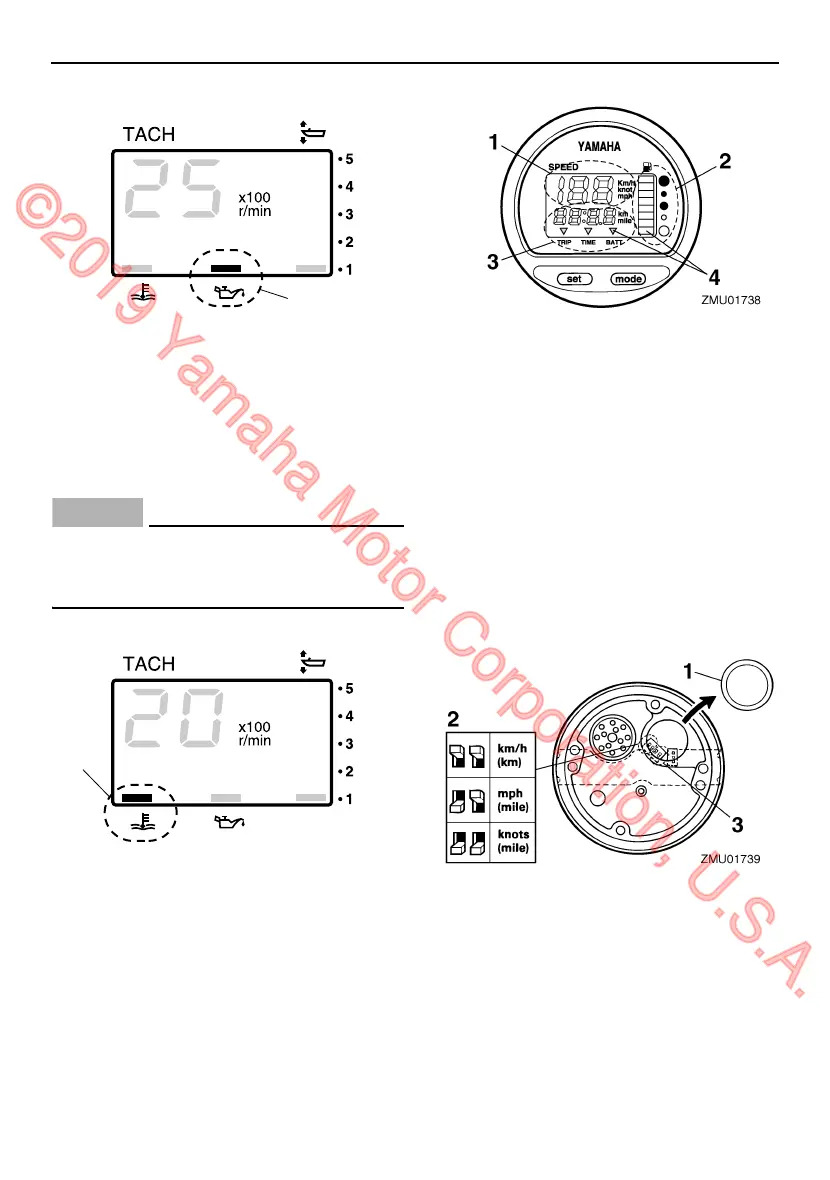

1. Low oil pressure-alert indicator
1. Overheat-alert indicator
1. Speedometer
2. Fuel gauge
3. Trip meter/clock/voltmeter
4. Alert indicator(s)
1. Cap
2. Selector switch (for speed unit)
3. Selector switch (for fuel sensor)
