Yamaha XT660X Service Manual

3 - 20
CHK
ADJ
CHECKING THE SPARK PLUG/
CHECKING THE IGNITION TIMING
7. Install:
• spark plug
NOTE:
_
Before installing the spark plug, clean the
spark plug and gasket surface.
8. Connect:
• spark plug cap
T
R
.
.
13 Nm (1.3 m · kg, 9.4 ft · lb)
EAS00064

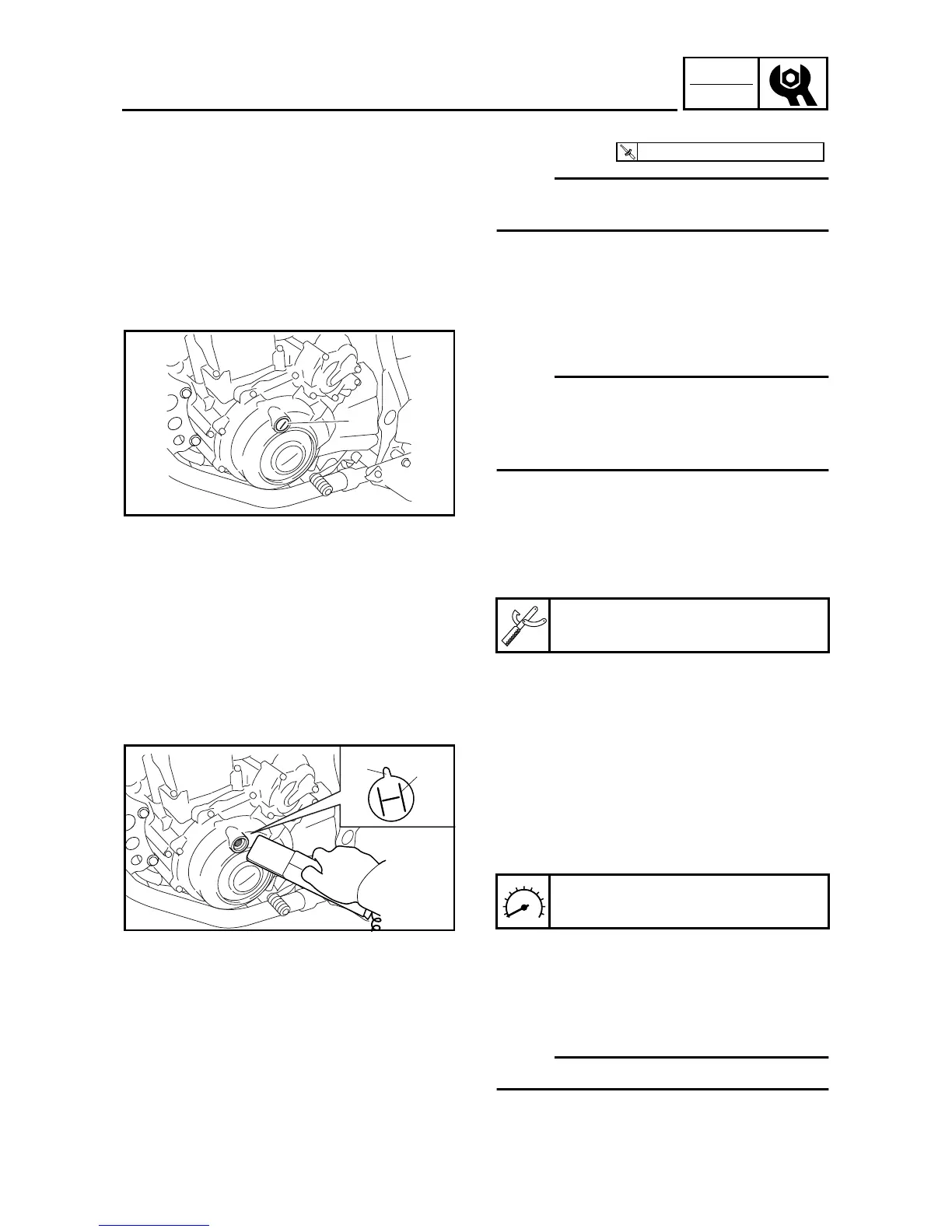

CHECKING THE IGNITION TIMING
NOTE:
_
Prior to checking the ignition timing, check the
wiring connections of the entire ignition sys-
tem. Make sure all connections are tight and
free of corrosion.
1. Remove:
• timing mark accessing screw 1
2. Connect:
• timing light
(onto the spark plug lead)
Timing light
90890-03141
1
3. Check:
• ignition timing
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Start the engine, warm it up for several min-
utes, and then let it run at the specified
engine idling speed.
b. Check that the stationary pointer a is within
the firing range b on the A.C. magneto
rotor.
Incorrect firing range → Check the ignition
system.
NOTE:
_
The ignition timing is not adjustable.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Engine idling speed
1,300 ~ 1,500 r/min
a
b

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
