Yamaha XT660X Service Manual

5 - 42
ENG

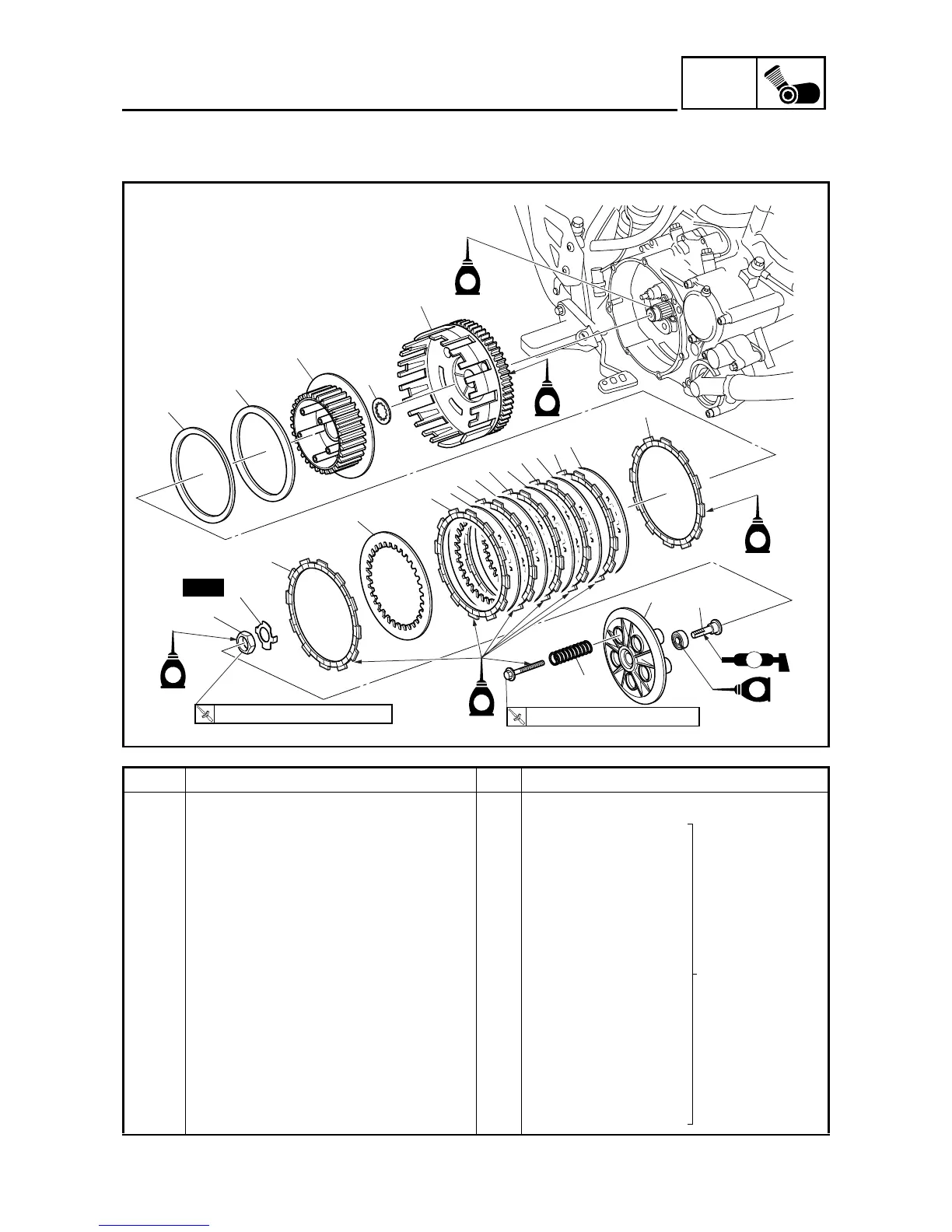

CLUTCH
EAS00274
CLUTCH
E
E
New
E
M
E
T
R
.
.
90 Nm (9.0 m
•
kg, 65 ft
•
Ib)
T
R
.
.
9 Nm (0.9 m
•
kg, 6.5 ft
•
Ib)
1
2
3
4
6
4
7
4
4
6
5
5
5
5
5
5
8
9
10
11
12
13
14
(5)
(5)
E
E
Order Job/Part Q’ty Remarks
Removing the clutch
Remove the parts in the order listed.
1 Clutch spring 5
Refer to
“INSTALLING
THE CLUTCH”.
2 Pressure plate 1
3Pull rod 1
4 Friction plate 1 4 Inside diameter (plate
with notched tabs) =
119 mm (4.69 in)
5 Clutch plate 6
6 Friction plate 2 2 Inside diameter (plate
with no notched tabs)
= 119 mm (4.69 in)
7 Friction plate 3 1 Inside diameter (plate
with notched tabs) =
128 mm (5.04 in)
8 Clutch damper spring 1
9 Clutch damper spring seat 1
