Yamaha XT660X Service Manual

5 - 66
ENG

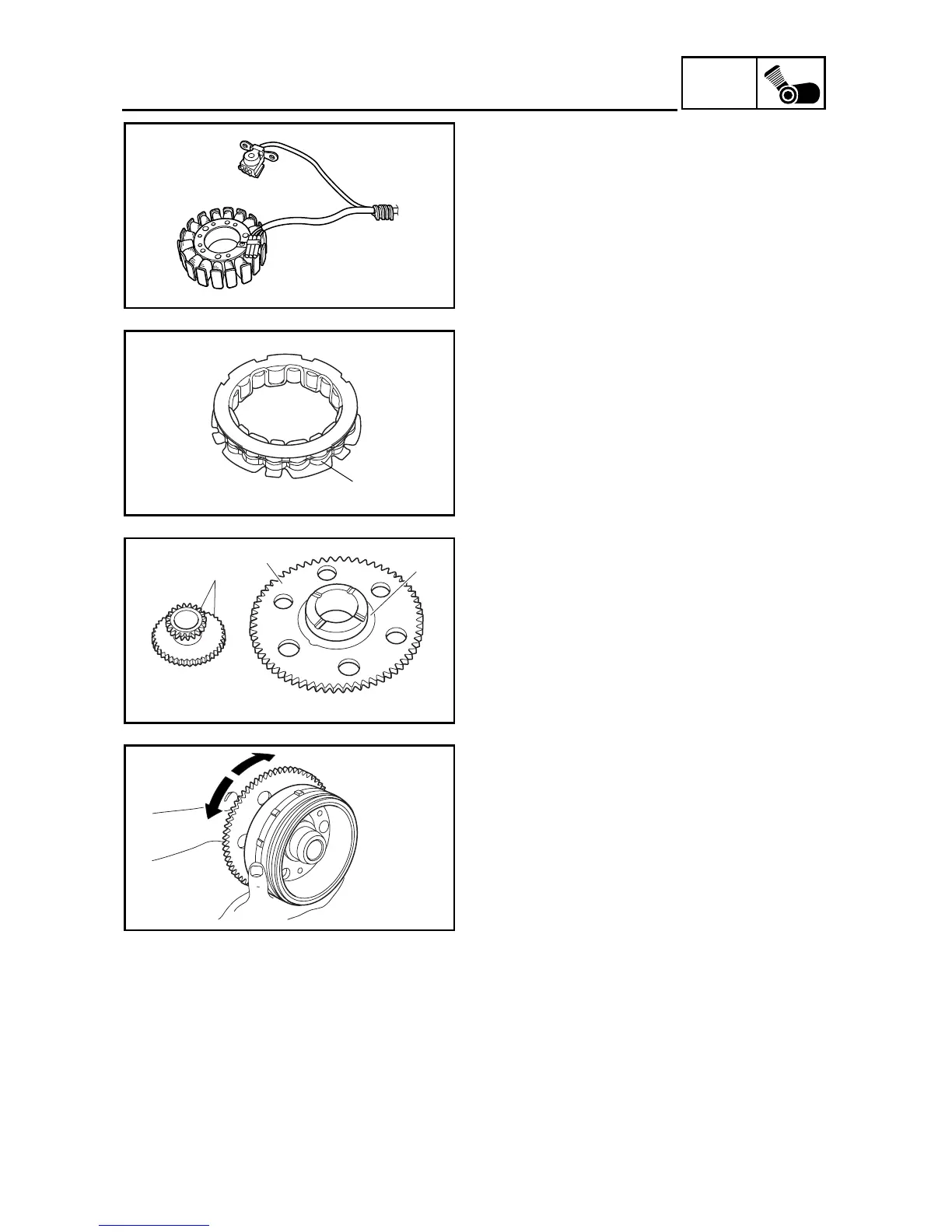

STARTER CLUTCH AND A.C. MAGNETO
CHECKING THE STATOR COIL AND
CRANKSHAFT POSITION SENSOR
1. Check:
• stator coil
• crankshaft position sensor
Damage → Replace the crankshaft position
sensor/stator assembly.
EAS00351
CHECKING THE STARTER CLUTCH
1. Check:
• starter clutch rollers 1
Damage/wear → Replace.
1
2. Check:
• starter clutch idle gear 1
• starter clutch gear 2
Burrs/chips/roughness/wear → Replace the
defective part(s).
3. Check:
• starter clutch gear’s contacting surfaces a
Damage/pitting/wear → Replace the starter
clutch gear.
2
1
a
4. Check:
• starter clutch operation
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Install the starter clutch gear onto the
starter clutch and hold the starter clutch.
b. When turning the starter clutch gear clock-
wise È, it should turn freely, otherwise the
starter clutch is faulty and must be
replaced.
c. When turning the starter clutch gear coun-
terclockwise É, the starter clutch and the
starter clutch gear should engage, other-
wise the starter clutch is faulty and must be
replaced.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
È
É

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
