Yamaha XT660X Service Manual

5 - 45
ENG
CLUTCH

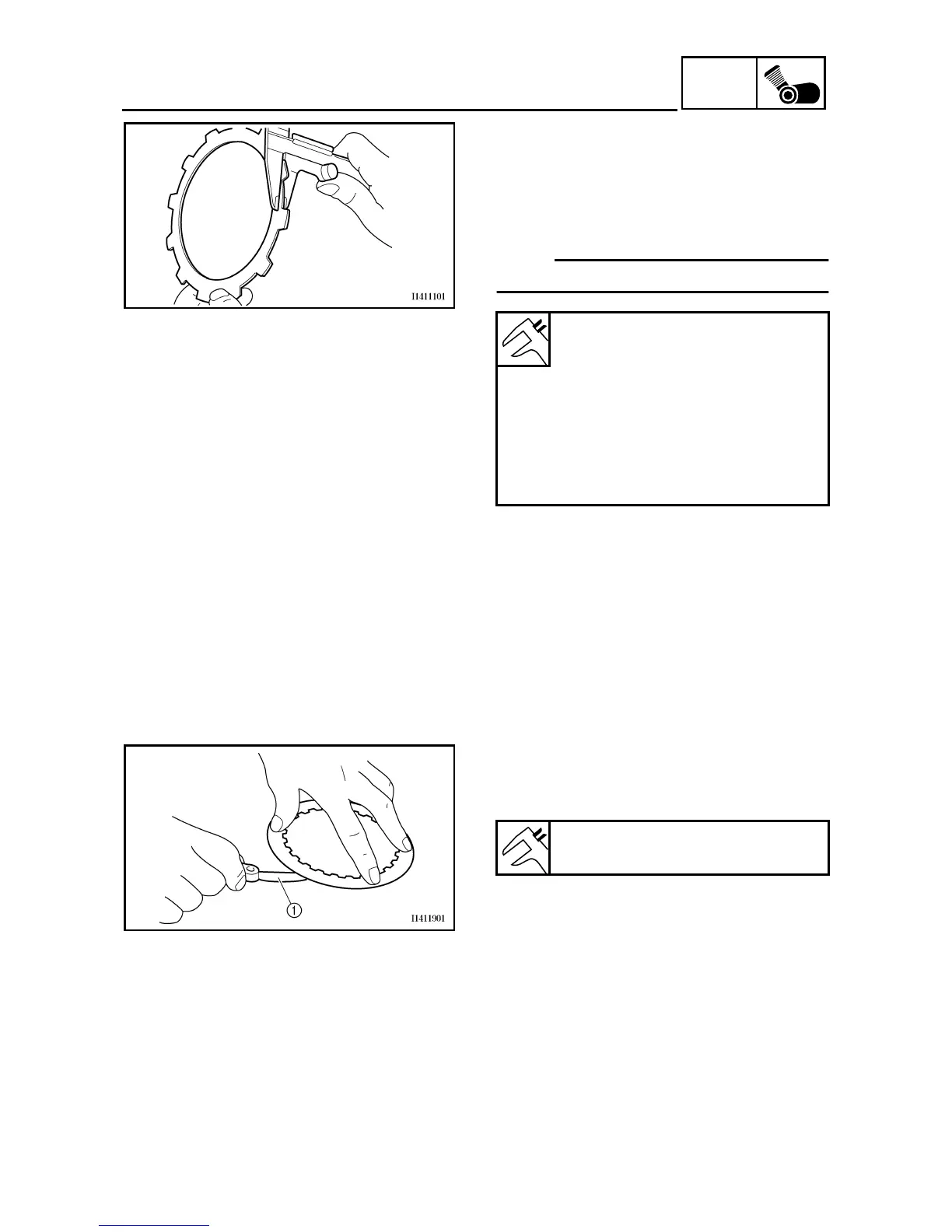

2. Measure:
• friction plate 1 thickness
• friction plate 2 thickness
• friction plate 3 thickness
Out of specification → Replace the friction
plates as a set.
NOTE:
_
Measure the friction plate at four places.
Friction plate 1 thickness
2.90 ~ 3.10 mm (0.114 ~ 0.122 in)
<Limit>: 2.80 mm (0.110 in)
Friction plate 2 thickness
2.92 ~ 3.08 mm
(0.115 ~ 0.121 in)
<Limit>: 2.80 mm (0.110 in)
Friction plate 3 thickness
2.90 ~ 3.10 mm (0.114 ~ 0.122 in)
<Limit>: 2.80 mm (0.110 in)
EAS00281
CHECKING THE CLUTCH PLATES
The following procedure applies to all of the
clutch plates.
1. Check:
• clutch plate
Damage → Replace the clutch plates as a
set.
2. Measure:
• clutch plate warpage
(with a surface plate and thickness gauge
1)
Out of specification → Replace the clutch
plates as a set.
Clutch plate warpage limit
0.20 mm (0.0079 in)
EAS00282
CHECKING THE CLUTCH SPRINGS
The following procedure applies to all of the
clutch springs.
1. Check:
• clutch spring
Damage → Replace the clutch springs as a
set.

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
