Yamaha XT660X Service Manual

4 - 76
CHAS

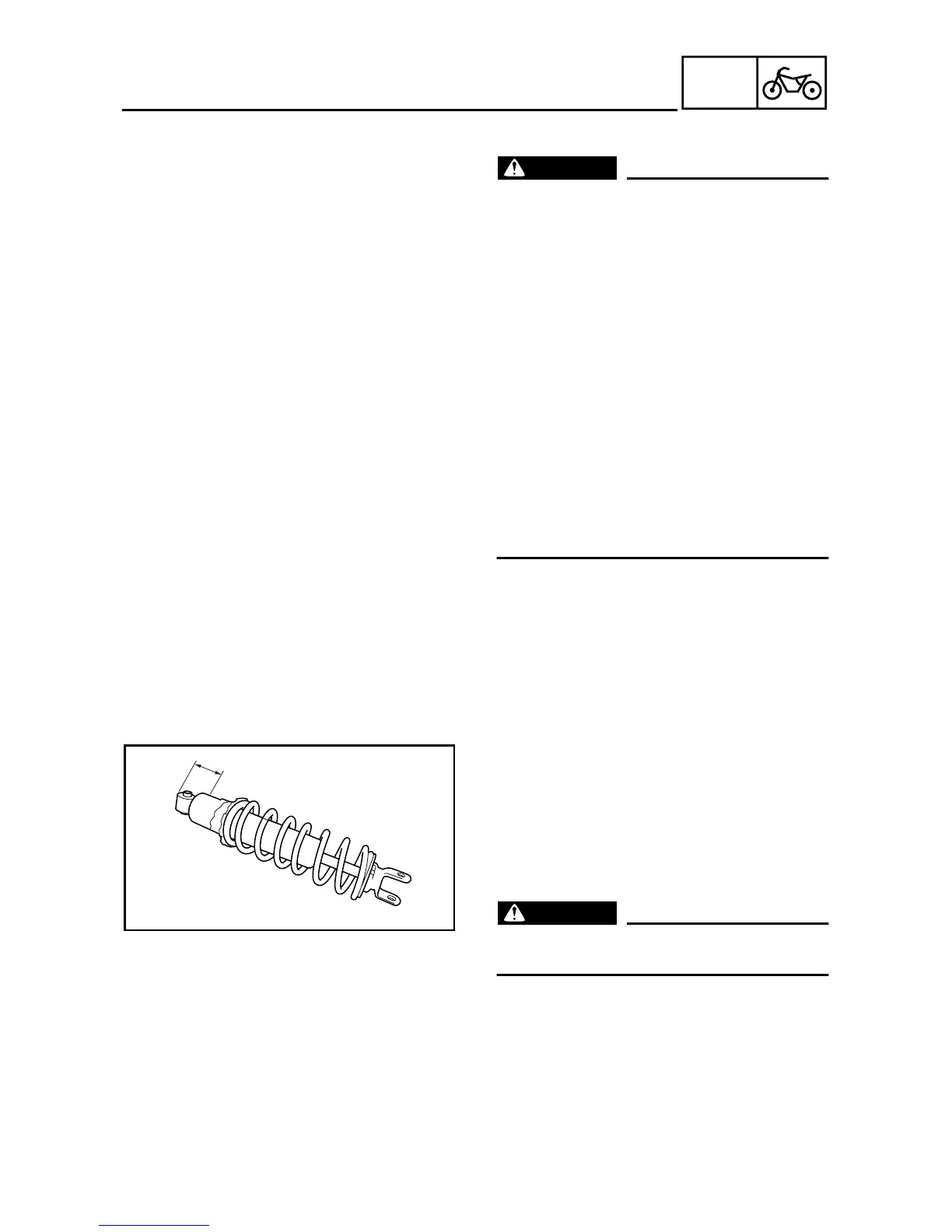

REAR SHOCK ABSORBER ASSEMBLY
EAS00686
HANDLING THE REAR SHOCK ABSORBER
WARNING
_
This rear shock absorber contains highly
compressed nitrogen gas. Before handling
the rear shock absorber, read and make
sure you understand the following informa-
tion. The manufacturer cannot be held
responsible for property damage or per-
sonal injury that may result from improper
handling of the rear shock absorber.
• Do not tamper or attempt to open the rear
shock absorber.
• Do not subject the rear shock absorber to
an open flame or any other source of high
heat. High heat can cause an explosion
due to excessive gas pressure.
• Do not deform or damage the rear shock
absorber in any way. Rear shock
absorber damage will result in poor
damping performance.
EAS00688
DISPOSING OF A REAR SHOCK
ABSORBER
Gas pressure must be released before dispos-
ing of a rear shock absorber. To release the
gas pressure, drill a 2 ~ 3 mm hole through the
rear shock absorber at a point
a
30 ~ 60 mm
from its end as shown.
WARNING
_
Wear eye protection to prevent eye damage
from released gas or metal chips.
a

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
